Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

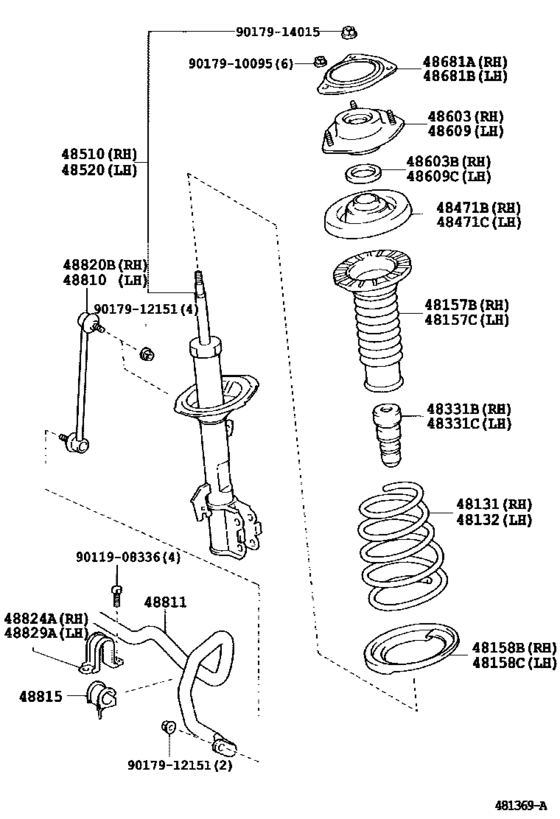

Front Spring & Shock Absorber ([05.2001 - ] (0105- )) 29

#	OEM	Part name
48131	48131-28790	Spring, Front Coil, Rh
48131	48131-28860	Spring, Front Coil, Rh
48131	48131-28700	Spring, Front Coil, Rh
48131	48131-28A10	Spring, Front Coil, Rh
48157	48157-28020	Insulator, Front Coil Spring, Upper
48158	48158-33020	Insulator, Front Coil Spring, Lower
48158	48158-48020	Insulator, Front Coil Spring, Lower
48331	48331-28040	Bumper, Front Spring, Rh
48471	48471-41010	Seat, Front Coil Spring, Upper
48510	48510-80031	Absorber Assy, Shock, Front Rh
48510	48510-80128	Absorber Assy, Shock, Front Rh
48510	48510-80116	Absorber Assy, Shock, Front Rh
48510	48510-80126	Absorber Assy, Shock, Front Rh
48520	48520-29545	Absorber Assy, Shock, Front Lh
48520	48520-29815	Absorber Assy, Shock, Front Lh
48520	48520-29785	Absorber Assy, Shock, Front Lh
48520	48520-29795	Absorber Assy, Shock, Front Lh
48603	48609-28020	Support Sub-Assy, Front Suspension, Rh
48603	90903-63014	Bearing(For Front Suspension Support)
48603	48609-28030	Support Sub-Assy, Front Suspension, Rh
48681	48681-28010	Gasket, Front Suspension Support, Rh
48810	48820-28050	Link Assy, Front Stabilizer
48811	48811-28210	Bar, Stabilizer, Front
48815	48815-28150	Bush, Front Stabilizer Bar, No.1
48824	48824-28190	Bracket, Front Stabilizer, No.1 Rh
9011908336	90119-08336	BOLT
9017910095	90179-10095	Nut(For Backing Plate To Rear Axle Housing Setting)
9017912151	90179-12151	Nut(For Front Stabilizer Link)
9017914015	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)

OEM	Part name	Category
48131-28700	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48131-28790	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48131-28860	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48131-28A10	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48157-28020	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48158-33020	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48158-48020	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48331-28040	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48471-41010	Seat, Front Coil Spring, Upper	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48510-80031	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48510-80116	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48510-80126	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48510-80128	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48520-29545	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48520-29785	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48520-29795	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48520-29815	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48609-28020	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48609-28030	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48681-28010	Gasket, Front Suspension Support, Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48811-28210	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48815-28150	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48820-28050	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
48824-28190	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
90119-08336	BOLT	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
90179-10095	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))
90903-63014	Bearing(For Front Suspension Support)	Front Spring & Shock Absorber ([05.2001 - ] (0105- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 232
Collected: 2026-08-03
