Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

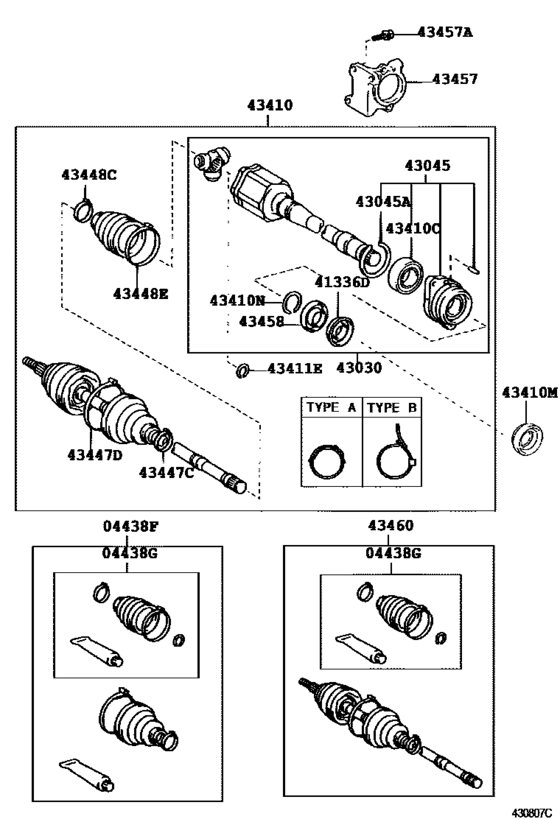

Front Drive Shaft ([05.2001 - ] RH (0105- )) 37

#	OEM	Part name
4438	04428-58030	Boot Kit, Front Drive Shaft, In & Outboard
4438	04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH
4438	04438-28051	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-28040	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-28041	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-58020	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-12020	Cover, Dust(For Front Drive Shaft)
43030	43030-28010	Joint Assy, Front Drive Inboard, Rh
43030	43030-28011	Joint Assy, Front Drive Inboard, Rh
43045	43045-20050	Case Sub Assy, Drive Shaft Bearing
43045	43045-64020	Case Sub Assy, Drive Shaft Bearing
43045	90520-69002	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)
43410	43410-28030	Shaft Assy, Front Drive, Rh
43410	90363-41002	Bearing (For Front Drive Shaft)
43410	90363-41003	Bearing (For Front Drive Shaft)
43410	90311-40026	Oil Seal, Front Drive Shaft, Rh
43410	90311-40041	Oil Seal, Front Drive Shaft, Rh
43410	90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43457	43457-28030	Bracket, Drive Shaft Bearing
43457	90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43457	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43458	43458-12010	Cover, Front Drive Shaft Dust
43460	43470-29625	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-29885	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-29626	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04428-58030	Boot Kit, Front Drive Shaft, In & Outboard	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04438-28040	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04438-28041	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04438-28051	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([05.2001 - ] RH (0105- ))
04438-58020	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
41336-12020	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([05.2001 - ] RH (0105- ))
42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([05.2001 - ] RH (0105- ))
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([05.2001 - ] RH (0105- ))
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43030-28010	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43030-28011	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43045-20050	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43045-64020	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43410-28030	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43457-28030	Bracket, Drive Shaft Bearing	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43458-12010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43470-29625	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43470-29626	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
43470-29885	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90311-40026	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90311-40041	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90363-41002	Bearing (For Front Drive Shaft)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90363-41003	Bearing (For Front Drive Shaft)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90520-69002	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([05.2001 - ] RH (0105- ))
