Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

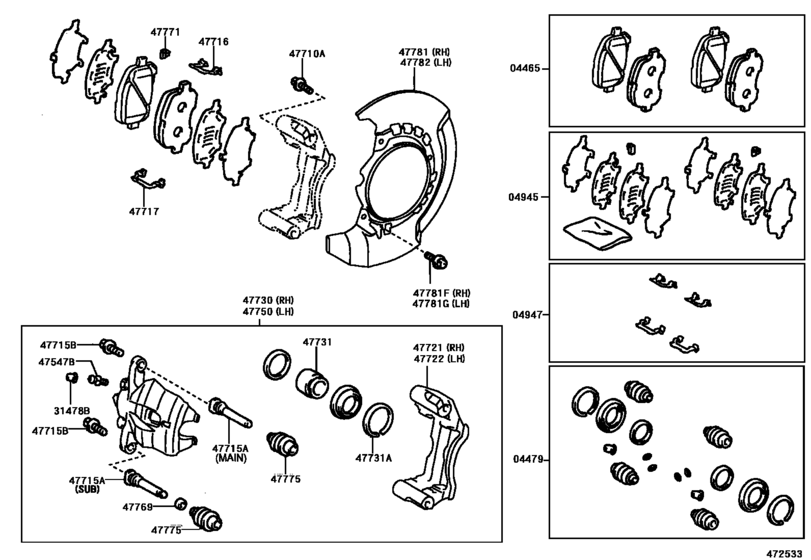

Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308)) 40

#	OEM	Part name
4465	04465-28400	Pad Kit, Disc Brake, Front
4465	04465-44100	Pad Kit, Disc Brake, Front
4479	04479-28110	Cylinder Kit, Disc Brake, Front
4479	04479-28111	Cylinder Kit, Disc Brake, Front
4479	04479-44020	Cylinder Kit, Disc Brake, Front
4945	04945-33040	Shim Kit, Anti Squeal, Front
4945	04945-44020	Shim Kit, Anti Squeal, Front
4947	04947-33160	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47710	90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47714-48050	Pin, Front Disc Brake Cylinder Slide
47715	47715-48010	Pin, Front Disc Brake Cylinder Slide
47715	47815-48090	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)
47715	47715-48020	Pin, Front Disc Brake Cylinder Slide
47715	47715-48050	Pin, Front Disc Brake Cylinder Slide
47715	90105-08346	Bolt(For Front Disc Brake Cylinder Slide)
47716	47716-33080	Plate, Pad Support, No.1(For Front Disc Brake)
47716	47716-44010	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-33070	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47717-44010	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-33080	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-33081	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-44021	Mounting, Front Disc Brake Cylinder, Rh
47730	47730-28280	Cylinder Assy, Front Disc Brake, Rh
47730	47730-44021	Cylinder Assy, Front Disc Brake, Rh
47731	47731-28080	Piston, Front Disc Brake
47731	90522-67001	Ring, Set(For Front Disc Brake Piston)
47750	47750-28280	Cylinder Assy, Disc Brake, Lh
47750	47750-44021	Cylinder Assy, Disc Brake, Lh
47769	47769-33020	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-33010	Plate, Pad Wear Indicator, No.1
47771	47771-48010	Plate, Pad Wear Indicator, No.1
47775	47775-33020	Boot, Bush Dust(For Front Disc Brake)
47775	47775-48010	Boot, Bush Dust(For Front Disc Brake)
47781	47781-28200	Cover, Disc Brake Dust, Front Rh
47781	47781-28240	Cover, Disc Brake Dust, Front Rh
47781	90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-28200	Cover, Disc Brake Dust, Front Lh
47782	47782-28230	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-28400	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04465-44100	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04479-28110	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04479-28111	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04479-44020	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04945-33040	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04945-44020	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
04947-33160	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47714-48050	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47715-48010	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47715-48020	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47715-48050	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47716-33080	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47716-44010	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47717-33070	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47717-44010	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47721-33080	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47721-33081	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47721-44021	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47730-28280	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47730-44021	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47731-28080	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47750-28280	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47750-44021	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47769-33020	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47771-33010	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47771-48010	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47775-33020	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47775-48010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47781-28200	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47781-28240	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47782-28200	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47782-28230	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
47815-48090	Pin, Rear Cylinder Slide, No.2(For Rear Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
90105-08346	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
90105-12208	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))
90522-67001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([05.2001 - 08.2003] (0105-0308))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 232
Collected: 2026-08-03
