Search › Model › AHR10
AHR10

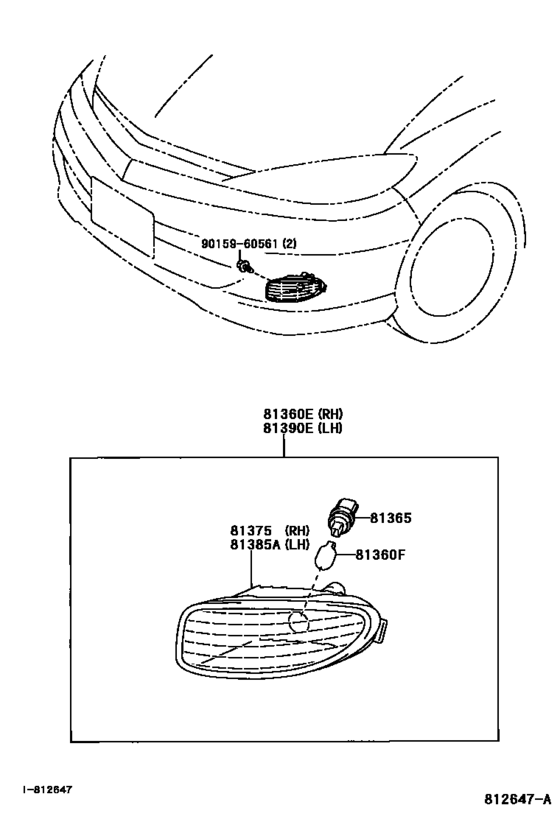

Cornering Lamp ([08.2003 - ] (0308- )) 7
| # | OEM | Part name |
|---|---|---|
| 81360 | 81360-28050 | Lamp Assy, Cornering, Rh |
| 81360 | 90981-13043 | Bulb (12V 21W) |
| 81365 | 90075-99128 | Cover, Headlamp Socket |
| 81375 | 81375-28050 | Lens & Body, Cornering Lamp, Rh |
| 81385 | 81385-28050 | Lens & Body, Cornering Lamp, Lh |
| 81390 | 81390-28050 | Lamp Assy, Cornering, Lh |
| 9015960561 | 90159-60561 | SCREW WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 81360-28050 | Lamp Assy, Cornering, Rh | Cornering Lamp ([08.2003 - ] (0308- )) |
| 81375-28050 | Lens & Body, Cornering Lamp, Rh | Cornering Lamp ([08.2003 - ] (0308- )) |
| 81385-28050 | Lens & Body, Cornering Lamp, Lh | Cornering Lamp ([08.2003 - ] (0308- )) |
| 81390-28050 | Lamp Assy, Cornering, Lh | Cornering Lamp ([08.2003 - ] (0308- )) |
| 90075-99128 | Cover, Headlamp Socket | Cornering Lamp ([08.2003 - ] (0308- )) |
| 90159-60561 | SCREW WWASHER | Cornering Lamp ([08.2003 - ] (0308- )) |
| 90981-13043 | Bulb (12V 21W) | Cornering Lamp ([08.2003 - ] (0308- )) |
