Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

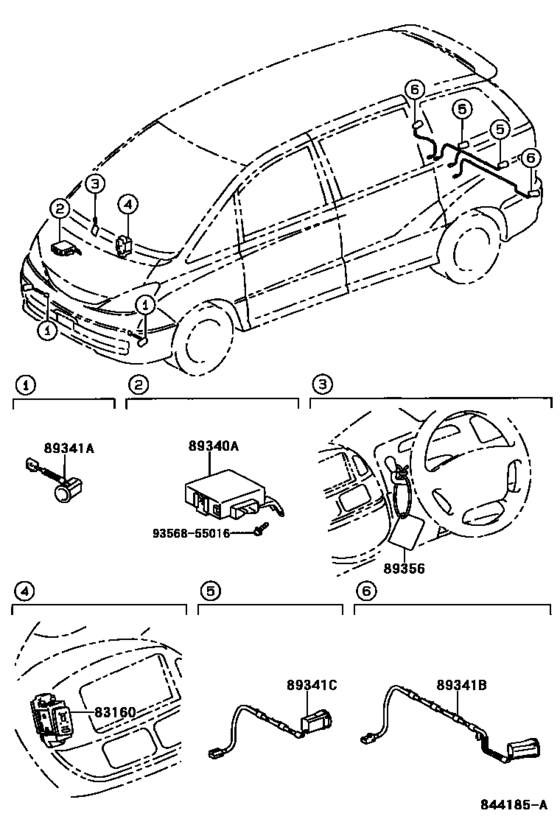

Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308)) 26

#	OEM	Part name
83160	83160-28020	Indicator Assy, Clearance Warning
83160	83160-28040	Indicator Assy, Clearance Warning
89340	89340-28110	Computer Assy, Clearance Warning
89340	89340-28140	Computer Assy, Clearance Warning
89340	89340-28160	Computer Assy, Clearance Warning
89341	89341-28350	Sensor, Ultrasonic, No.1
89341	89341-28351	Sensor, Ultrasonic, No.1
89341	89341-28310	Sensor, Ultrasonic, No.2
89341	89341-28311	Sensor, Ultrasonic, No.2
89341	89341-28320	Sensor, Ultrasonic, No.2
89341	89341-28321	Sensor, Ultrasonic, No.2
89341	89341-28390-A0	Sensor, Ultrasonic, No.2
89341	89341-28390-B0	Sensor, Ultrasonic, No.2
89341	89341-28390-G2	Sensor, Ultrasonic, No.2
89341	89341-28390-J1	Sensor, Ultrasonic, No.2
89341	89341-28390-J2	Sensor, Ultrasonic, No.2
89341	89341-28330	Sensor, Ultrasonic, No.3
89341	89341-28340	Sensor, Ultrasonic, No.3
89341	89341-28410-A0	Sensor, Ultrasonic, No.3
89341	89341-28410-B0	Sensor, Ultrasonic, No.3
89341	89341-28410-G2	Sensor, Ultrasonic, No.3
89341	89341-28410-J1	Sensor, Ultrasonic, No.3
89341	89341-28410-J2	Sensor, Ultrasonic, No.3
89356	89356-28030	Label, Clearance Warning Information
89356	89356-28040	Label, Clearance Warning Information
9356855016	93568-55016	Screw

OEM	Part name	Category
83160-28020	Indicator Assy, Clearance Warning	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
83160-28040	Indicator Assy, Clearance Warning	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89340-28110	Computer Assy, Clearance Warning	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89340-28140	Computer Assy, Clearance Warning	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89340-28160	Computer Assy, Clearance Warning	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28310	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28311	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28320	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28321	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28330	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28340	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28350	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28351	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28390-A0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28390-B0	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28390-G2	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28390-J1	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28390-J2	Sensor, Ultrasonic, No.2	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28410-A0	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28410-B0	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28410-G2	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28410-J1	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89341-28410-J2	Sensor, Ultrasonic, No.3	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89356-28030	Label, Clearance Warning Information	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
89356-28040	Label, Clearance Warning Information	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))
93568-55016	Screw	Clearance & Back Sonar ([05.2001 - 08.2003] (0105-0308))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 232
Collected: 2026-08-03
