AHR10

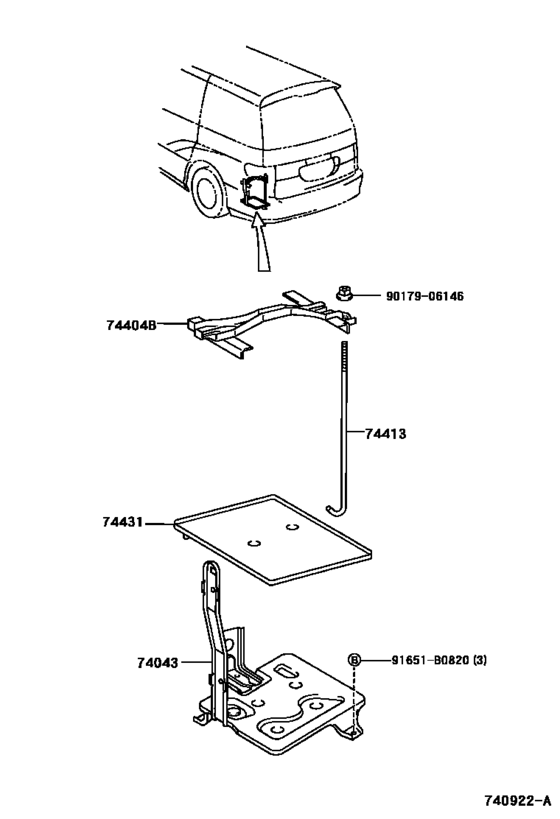

Battery Carrier ([05.2001 - ] (0105- )) 7
| # | OEM | Part name |
|---|---|---|
| 74043 | 74043-28010 | Carrier Sub-Assy, Battery, No.2 |
| 74404 | 74404-28130 | Clamp Sub-Assy, Battery |
| 74413 | 74451-38020 | Bolt, Battery Clamp |
| 74431 | 74431-12080 | Tray, Battery |
| 91651 | 91651-B0820 | Bolt, Radiator Side Support Plate |
| 91651 | 90080-11347 | New Genuine Part |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74043-28010 | Carrier Sub-Assy, Battery, No.2 | Battery Carrier ([05.2001 - ] (0105- )) |
| 74404-28130 | Clamp Sub-Assy, Battery | Battery Carrier ([05.2001 - ] (0105- )) |
| 74431-12080 | Tray, Battery | Battery Carrier ([05.2001 - ] (0105- )) |
| 74451-38020 | Bolt, Battery Clamp | Battery Carrier ([05.2001 - ] (0105- )) |
| 90080-11347 | New Genuine Part | Battery Carrier ([05.2001 - ] (0105- )) |
| 90179-06146 | Nut | Battery Carrier ([05.2001 - ] (0105- )) |
| 91651-B0820 | Bolt, Radiator Side Support Plate | Battery Carrier ([05.2001 - ] (0105- )) |
