Search › Model › AHR10
AHR10

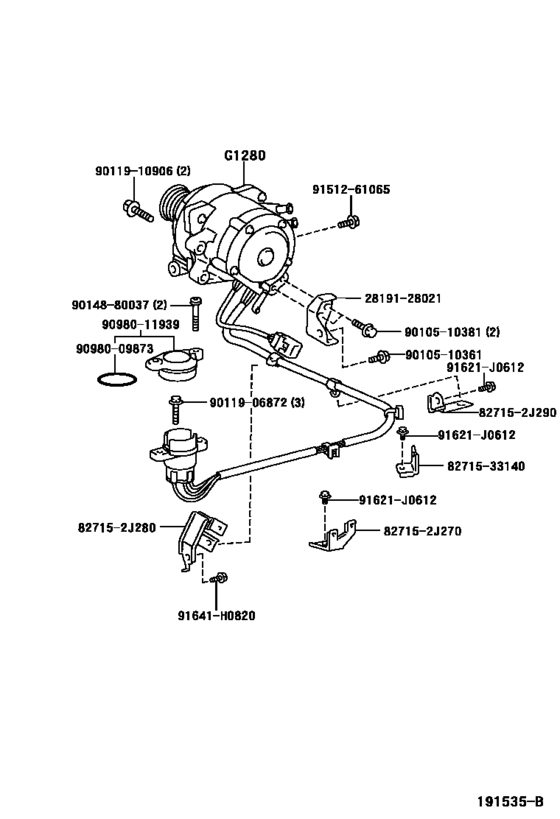

Alternator ([05.2001 - ] (0105- )) 15
| # | OEM | Part name |
|---|---|---|
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 91641 | 91641-H0820 | Bolt |
| 827152 | 82715-2J270 | Bracket,wiring Harness Clamp |
| 827152 | 82715-2J280 | Bracket,wiring Harness Clamp |
| 827152 | 82715-2J290 | Bracket,wiring Harness Clamp |
| 2819128021 | 28191-28021 | Stay, Starter |
| 8271533140 | 82715-33140 | Bracket,wiring Harness Clamp |
| 9010510361 | 90105-10361 | Bolt (For Rear Differential Carrier Cover Setting) |
| 9010510381 | 90105-10381 | Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
| 9011906872 | 90119-06872 | New Genuine Part |
| 9011910906 | 90119-10906 | New Genuine Part |
| 9014880037 | 90148-80037 | New Genuine Part |
| 9098009873 | 90980-09873 | New Genuine Part |
| 9098011939 | 90980-11939 | New Genuine Part |
| 9151261065 | 91512-61065 | Bolt(For Transaxle & Engine Setting) |
| OEM | Part name | Category |
|---|---|---|
| 28191-28021 | Stay, Starter | Alternator ([05.2001 - ] (0105- )) |
| 82715-2J270 | Bracket,wiring Harness Clamp | Alternator ([05.2001 - ] (0105- )) |
| 82715-2J280 | Bracket,wiring Harness Clamp | Alternator ([05.2001 - ] (0105- )) |
| 82715-2J290 | Bracket,wiring Harness Clamp | Alternator ([05.2001 - ] (0105- )) |
| 82715-33140 | Bracket,wiring Harness Clamp | Alternator ([05.2001 - ] (0105- )) |
| 90105-10361 | Bolt (For Rear Differential Carrier Cover Setting) | Alternator ([05.2001 - ] (0105- )) |
| 90105-10381 | Bolt (For Drive Shaft Bearing Bracket Setting No.1) | Alternator ([05.2001 - ] (0105- )) |
| 90119-06872 | New Genuine Part | Alternator ([05.2001 - ] (0105- )) |
| 90119-10906 | New Genuine Part | Alternator ([05.2001 - ] (0105- )) |
| 90148-80037 | New Genuine Part | Alternator ([05.2001 - ] (0105- )) |
| 90980-09873 | New Genuine Part | Alternator ([05.2001 - ] (0105- )) |
| 90980-11939 | New Genuine Part | Alternator ([05.2001 - ] (0105- )) |
| 91512-61065 | Bolt(For Transaxle & Engine Setting) | Alternator ([05.2001 - ] (0105- )) |
| 91621-J0612 | BOLT W-WASHER | Alternator ([05.2001 - ] (0105- )) |
| 91641-H0820 | Bolt | Alternator ([05.2001 - ] (0105- )) |
