| 08310-00063-000 |
Nut |

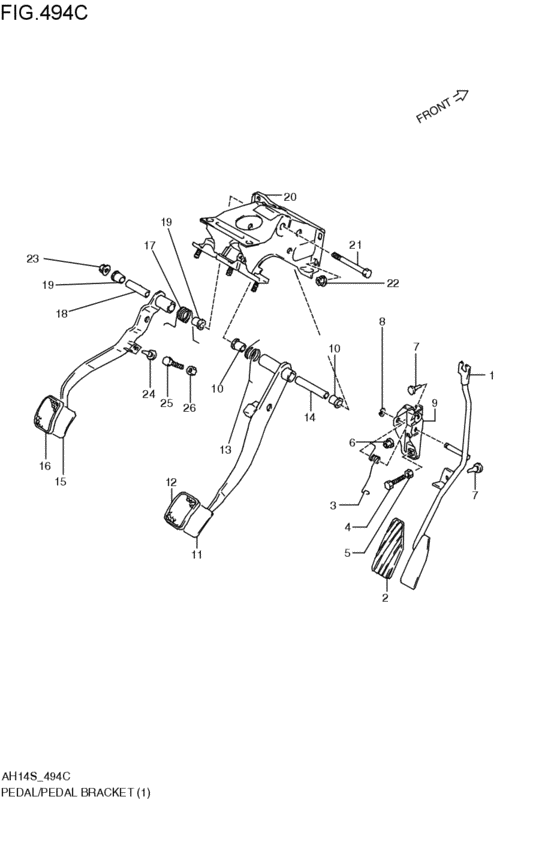

pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 08310-0006A-000 |
NUT |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 08316-10103-000 |
Nut |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 08316-1010B-000 |
NUT |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 08332-11075-000 |
E ring |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 08332-1107A-000 |
E RING |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09100-06088-000 |
BOLT(6X30) |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09100-10049-000 |
BOLT(10X140) - Bolt (10*140) |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09159-08069-000 |
Nut |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09159-08135-000 |
NUT |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09180-10121-000 |
SPACER(10.1X13X73.8) |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09180-10122-000 |
SPACER(10.1X13X50.8) |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09306-13004-000 |
BUSH |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09307-13005-000 |
BUSH - Bushing |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09321-06026-000 |
CUSHION |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09448-15011-000 |
SPRING |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09448-29011-000 |
SPRING |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 09448-29014-000 |
SPRING |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49410-60B20-000 |
PEDAL,ACCELERATOR |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49510-60B21-000 |
BRACKET,ACCELERATOR PEDAL |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49610-60B02-000 |
PEDAL,BRAKE |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49710-65B00-000 |
ブラケット,ペダル |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49751-58J00-000 |
PAD,PEDAL |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49751-79001-000 |
Pad, pedal |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
| 49810-65B01-000 |
ペダル,クラッチ |
pedal / pedal bracket (5MT; 1989-05-01~1994-09-01) |
