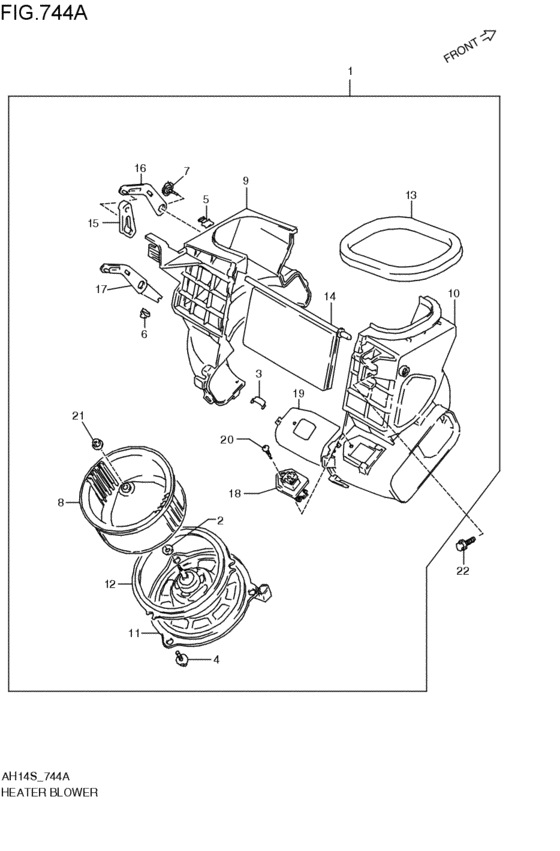

| 01550-06163-000 |
Bolt |
heater bloy (1989-05-01~1994-09-01) |
| 01550-0616A-000 |
Bolt |
heater bloy (1989-05-01~1994-09-01) |
| 01550-0616B-000 |
Bolt |
heater bloy (1989-05-01~1994-09-01) |
| 03111-0416A-000 |
SCREW |
heater bloy (1989-05-01~1994-09-01) |
| 03112-04163-000 |
Screw |
heater bloy (1989-05-01~1994-09-01) |
| 08316-20053-000 |
Nut |
heater bloy (1989-05-01~1994-09-01) |
| 08316-2005A-000 |
NUT |
heater bloy (1989-05-01~1994-09-01) |
| 17112-82000-000 |
WASHER,FAN |
heater bloy (1989-05-01~1994-09-01) |
| 74131-82000-000 |
ワッシャ,ファン |
heater bloy (1989-05-01~1994-09-01) |
| 74133-82000-000 |
CLAMP,CASE |
heater bloy (1989-05-01~1994-09-01) |
| 74135-82000-000 |
SCREW,MOTOR |
heater bloy (1989-05-01~1994-09-01) |
| 74151-85000-000 |
CLAMP,LOCK |
heater bloy (1989-05-01~1994-09-01) |
| 74183-82005-000 |
SCREW,LINK |
heater bloy (1989-05-01~1994-09-01) |
| 74200-71C00-000 |
ブロワアッシ |
heater bloy (1989-05-01~1994-09-01) |
| 74211-60B01-000 |
CASE,NO.1 |
heater bloy (1989-05-01~1994-09-01) |
| 74212-60B00-000 |
CASE,NO.2 |
heater bloy (1989-05-01~1994-09-01) |
| 74231-60A10-000 |
FAN,BLOWER |
heater bloy (1989-05-01~1994-09-01) |
| 74250-60B01-000 |
MOTOR ASSY |
heater bloy (1989-05-01~1994-09-01) |
| 74261-60A10-000 |
PACKING |
heater bloy (1989-05-01~1994-09-01) |
| 74262-86000-000 |
PACKING,AIR |
heater bloy (1989-05-01~1994-09-01) |
| 74271-70C00-000 |
DAMPER |
heater bloy (1989-05-01~1994-09-01) |
| 74281-60B00-000 |
PLATE,LINK |
heater bloy (1989-05-01~1994-09-01) |
| 74282-60B00-000 |
レバー |
heater bloy (1989-05-01~1994-09-01) |
| 74290-60B00-000 |
RESISTOR |
heater bloy (1989-05-01~1994-09-01) |
| 74291-60B00-000 |
PLATE,RESISTOR |
heater bloy (1989-05-01~1994-09-01) |
