| 01550-06253-000 |
Bolt (6x25) |

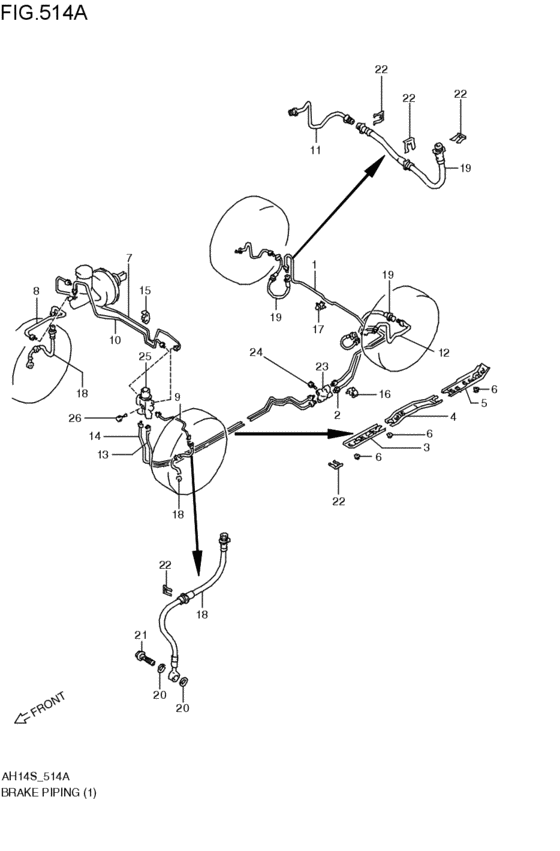

brakes piping (2WD; 1989-05-01~1994-09-01) |
| 01550-0625A-000 |
Bolt |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 01550-0625B-000 |
Bolt - Bolt, head cover |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 01550-06303-000 |
Bolt (6x30) - Bolt, head cover l:30 |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 01550-0630A-000 |
Bolt |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 09161-10009-000 |
WASHER(10X15X1.5) - Lock washer |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 09360-10026-000 |
Union bolt |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 09383-13001-000 |
E RING |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 09383-13003-000 |
E-RING |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51410-60B10-000 |
PIPE,MA PRI TO VALVE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51420-60B00-000 |
PIPE,MA SEC TO FR BK HOSE R |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51430-60B10-000 |
PIPE,VALVE TO FR BK HOSE L |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51460-60B10-000 |
PIPE,MA SEC TO VALVE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51470-63B00-000 |
PIPE,RR BK HOSE TO WHL CYL R |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51490-63B00-000 |
PIPE,RR BK HOSE TO WHL CYL L |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51510-62B10-000 |
PIPE,VALVE TO JOINT L |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51520-62B10-000 |
PIPE,VALVE TO JOINT R |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51530-60B10-000 |
PIPE,JOINT TO RR BK HOSE R |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51540-60B10-000 |
PIPE,JOINT TO RR BK HOSE L |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51580-60B00-000 |
HOSE,FR BRAKE FLEXIBLE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51580-63B00-000 |
HOSE,FR BRAKE FLEXIBLE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51590-60B00-000 |
HOSE,RR BRAKE FLEXIBLE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51630-82040-000 |
JOINT,4WAY BRAKE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51711-60B00-000 |
COVER,PIPE,FR |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51721-60B00-000 |
COVER,PIPE,CENTER |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51731-62B00-000 |
COVER,PIPE,RR |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51741-60B00-000 |
NUT,PIPE COVER |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51751-60B00-000 |
CLAMP,BRAKE PIPE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51761-60B00-000 |
CLAMP,BRAKE PIPE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51771-60B00-000 |
CLAMP,BRAKE PIPE |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51771-63B00-000 |
CLAMP,BK PIPE,RR X MBR |
brakes piping (2WD; 1989-05-01~1994-09-01) |
| 51910-63B30-000 |
VALVE ASSY,PROPORTIONING |
brakes piping (2WD; 1989-05-01~1994-09-01) |
