Search › Model › AGV10

AGV10

Toyota VENZA · 2009 · 6,353 parts · 382 categories

6,353 items

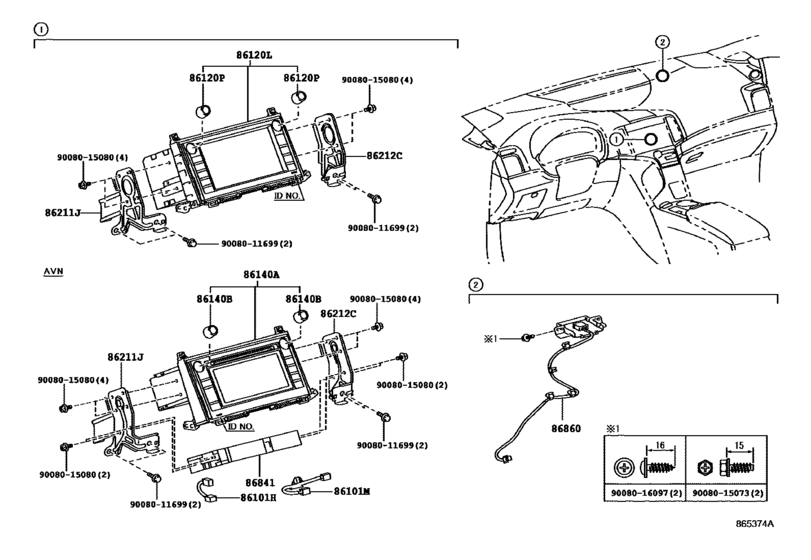

Navigation & Front Monitor Display ([02.2013 - ] (1302- )) 25

#	OEM	Part name
86101	86101-YY100	Cord Sub-Assy, Antenna
86101	86705-YY030	Cord Sub-Assy, Antenna
86120	86100-0T040	Receiver Assy, Navigation
86120	86100-0T041	Receiver Assy, Navigation
86120	86100-0T042	Receiver Assy, Navigation
86120	86100-0T043	Receiver Assy, Navigation
86120	86100-0T044	Receiver Assy, Navigation
86120	86128-0T070	Knob, Navigation Receiver Switch
86140	86140-0T060	Receiver Assy, Radio & Display
86140	86140-0T080	Receiver Assy, Radio & Display
86140	86140-0T090	Receiver Assy, Radio & Display
86140	86128-0T080	Knob, Radio & Display Receiver Switch
86211	86211-0T010	Bracket, Radio, No.1
86211	86211-0T030	Bracket, Radio Receiver, No.1
86211	86211-0T040	Bracket, Radio Receiver, No.1
86212	86212-0T010	Bracket, Radio, No.2
86212	86212-0T040	Bracket, Radio Receiver, No.2
86841	86840-YY141	Computer, Navigation
86841	86840-YY143	Computer, Navigation
86841	86840-YY142	Computer, Navigation
86860	86860-0T010	Antenna Assy, Navigation
9008011699	90080-11699	Bolt, W/washer
9008015073	90080-15073	SCREW WWASHER TAPP
9008015080	90080-15080	SCREW CROSSRECESS
9008016097	90080-16097	New Genuine Part

OEM	Part name	Category
86100-0T040	Receiver Assy, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86100-0T041	Receiver Assy, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86100-0T042	Receiver Assy, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86100-0T043	Receiver Assy, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86100-0T044	Receiver Assy, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86101-YY100	Cord Sub-Assy, Antenna	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86128-0T070	Knob, Navigation Receiver Switch	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86128-0T080	Knob, Radio & Display Receiver Switch	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86140-0T060	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86140-0T080	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86140-0T090	Receiver Assy, Radio & Display	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86211-0T010	Bracket, Radio, No.1	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86211-0T030	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86211-0T040	Bracket, Radio Receiver, No.1	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86212-0T010	Bracket, Radio, No.2	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86212-0T040	Bracket, Radio Receiver, No.2	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86705-YY030	Cord Sub-Assy, Antenna	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86840-YY141	Computer, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86840-YY142	Computer, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86840-YY143	Computer, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
86860-0T010	Antenna Assy, Navigation	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
90080-11699	Bolt, W/washer	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
90080-15073	SCREW WWASHER TAPP	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
90080-15080	SCREW CROSSRECESS	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
90080-16097	New Genuine Part	Navigation & Front Monitor Display ([02.2013 - ] (1302- ))
