AGT20

Toyota SCION-TC · 2010 · 3,280 parts · 172 categories
AGT20 ×

← Back to categories

3,280 items

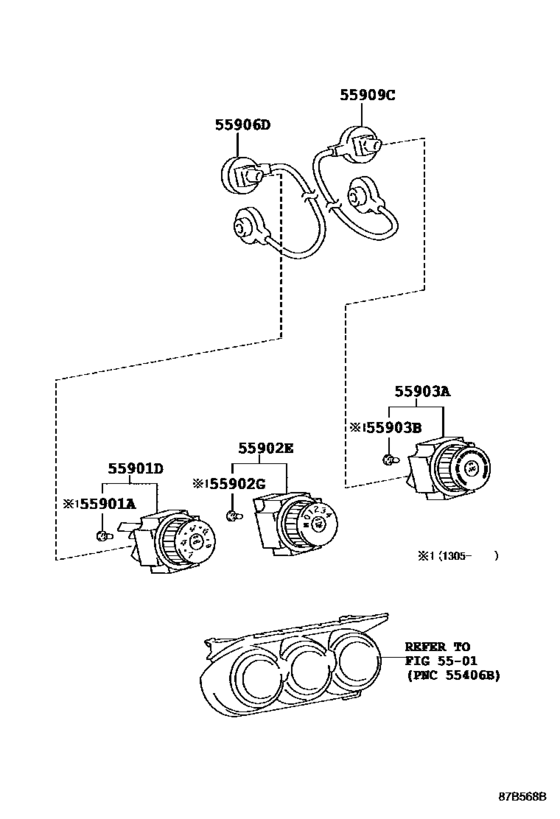

Heating & Air Conditioning - Control & Air Duct ([08.2010 - ] HEATER CONTROL PANEL (1008- )) 10
#OEMPart name
55901 90010-01145 Bulb, Heater Control Sub-Assy, No.1
55901 55901-21010 Control Sub-Assy, Heater, No.1
55901 55901-21040 Control Sub-Assy, Heater, No.1
55902 55902-21110 Control Sub-Assy, Heater, No.2
55902 55902-21120 Control Sub-Assy, Heater, No.2
55903 55903-21010 Control Sub-Assy, Heater, No.3
55903 55903-21030 Control Sub-Assy, Heater, No.3
55903 90010-01165 Bulb, Heater Control Sub-Assy, No.3
55906 55906-26060 Cable Sub-Assy, Heater Control
55909 55909-26080 Cable Sub-Assy, Airmix Damper Control
