AGH30

Toyota ALPHARD-VELLFIRE · 2015 · 3,604 parts · 210 categories

3,604 items

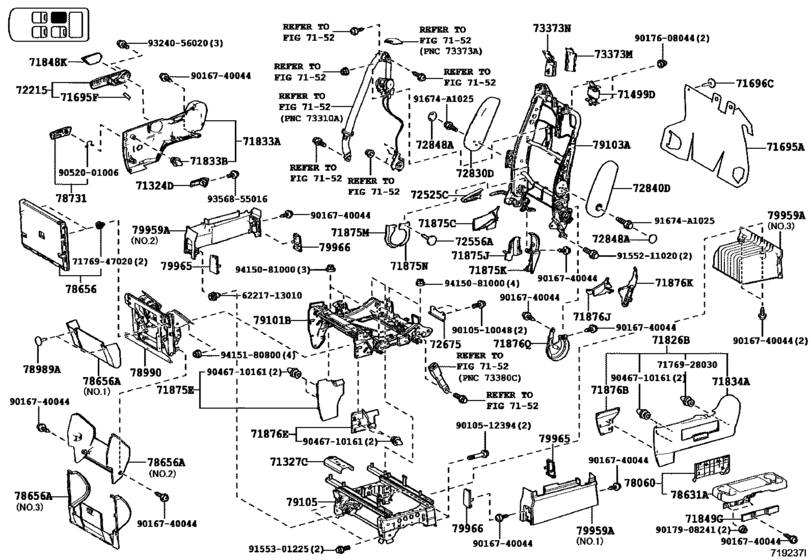

Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q) 67

#	OEM	Part name
71324	71324-58090	Cushion, Rear Seat, Rh
71327	71307-58010	Bracket, Rear Seat Cushion
71499	71499-28080	Damper, Rear Seat Cushion Spring
71695	71695-58080	Protector, Rear Seat, No.1 Rh
71695	71537-28080	Protector, Rear Seat, No.1
71696	90467-05161-C0	Clip
71826	71826-58090-A0	Moulding, Rear Seat Cushion, Lh
71833	71833-58060-A0	Cover, Rear Seat Reclining, No.1 Rh
71833	62217-13010	Clip(For Rear Floor Mat Plate)
71834	71834-58060-A0	Cover, Rear Seat Reclining, No.1 Lh
71848	71848-58160-A0	Cap, Seat Adjuster Cover
71849	71849-58130-A0	Cap, Rear No.1 Seat Adjuster Cover, Lh
71875	71875-28380-A0	Cover, Reclining Adjuster Inside, Rh
71875	71875-58290-A0	Cover, Reclining Adjuster Inside, Rh
71875	71875-58300-A0	Cover, Reclining Adjuster Inside, Rh
71875	71875-58470-A0	Cover, Reclining Adjuster Inside, Rh
71875	71875-28400-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875	71875-28410-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71876	71876-58310-A0	Cover, Reclining Adjuster Inside, Lh
71876	71876-58300-A0	Cover, Reclining Adjuster Inside, Lh
71876	71876-58360-A0	Cover, Reclining Adjuster Inside, Lh
71876	71876-58530-A0	Cover, Reclining Adjuster Inside, Lh
71876	71876-28370-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
72215	72215-58010-A0	Lever, Seat Track Handle Control, Rh
72525	72525-28130-A0	Handle, Reclining Adjuster Release, No.1 Rh
72556	90467-08186-A7	Clip(For Front Seat Cushion Inner Shield)
72556	90467-08186-C0	Clip(For Front Bumper), No.1
72556	90467-08186-C3	Clip(For Front Bumper), No.1
72675	72675-58040	Hook, Rear Seat Lock, Rh
72830	72880-58890-A1	Armrest Assy, Rear Seat, Rh
72840	72890-58880-A1	Armrest Assy, Rear No.1 Seat, Lh
72848	72848-28030-A3	Cap, Seat Armrest, No.1
73373	73373-28040	Cover, Rear Seat Shoulder Belt Hole, Rh
73373	73373-28060	Cover, Rear Seat Shoulder Belt Hole, Rh
78060	78060-58130-A0	Table Assy, Rear Seat Side
78631	78061-58060-A0	Table, Rear Seat Side
78656	78656-58030	Cover, Rear Seat Legrest
78656	78656-58040-C0	Cover, Rear Seat Legrest
78656	78656-58050-C0	Cover, Rear Seat Legrest
78656	78656-58060-C0	Cover, Rear Seat Legrest
78731	78731-58020-A0	Arm, Sub Seat Link, No.1
78731	78731-58030-A0	Arm, Sub Seat Link, No.1
78990	78990-58030	Adjuster Assy, Rear Seat Footrest
79101	79101-58050	Frame Sub-Assy, No.1 Seat Cushion, Rh
79103	79103-58070	Frame Sub-Assy, No.1 Seat Back, Rh
79105	79105-58070	Leg Sub-Assy, No.1 Seat, Rh
79959	79959-58230-C0	Cover, Rear Seat Leg, Rh
79959	79959-58240-C0	Cover, Rear Seat Leg, Rh
79959	79959-58250-C0	Cover, Rear Seat Leg, Rh
79965	79965-28230-C0	Cover, Rear Seat Leg Side, No.2
79966	79966-28170-C0	Cover, Rear Seat Leg Side, No.3
91674	91674-A1025	BOLT FLANGE
7176928030	71769-28030	Clip, Rear Seat Back Board
7176947020	71769-47020	Clip, Rear Seat Back Board
9010510048	90105-10048	Bolt, Flywheel Setting
9010512394	90105-12394	BOLT FLANGE
9016740044	90167-40044	BOLT
9017608044	90176-08044	NUT
9017908241	90179-08241	NUT
9046710161	90467-10161	Clip
9052001006	90520-01006	Ring, Shaft Snap(For Lumber Support Lever)
9155211020	91552-11020	New Genuine Part
9155301225	91553-01225	New Genuine Part
9324056020	93240-56020	New Genuine Part
9356855016	93568-55016	Screw
9415081000	94150-81000	NUT FLANGE
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
62217-13010	Clip(For Rear Floor Mat Plate)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71307-58010	Bracket, Rear Seat Cushion	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71324-58090	Cushion, Rear Seat, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71499-28080	Damper, Rear Seat Cushion Spring	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71537-28080	Protector, Rear Seat, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71695-58080	Protector, Rear Seat, No.1 Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71769-28030	Clip, Rear Seat Back Board	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71769-47020	Clip, Rear Seat Back Board	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71826-58090-A0	Moulding, Rear Seat Cushion, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71833-58060-A0	Cover, Rear Seat Reclining, No.1 Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71834-58060-A0	Cover, Rear Seat Reclining, No.1 Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71848-58160-A0	Cap, Seat Adjuster Cover	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71849-58130-A0	Cap, Rear No.1 Seat Adjuster Cover, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71875-28380-A0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71875-28400-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71875-28410-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71875-58290-A0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71875-58300-A0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71875-58470-A0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71876-28370-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71876-58300-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71876-58310-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71876-58360-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
71876-58530-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
72215-58010-A0	Lever, Seat Track Handle Control, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
72525-28130-A0	Handle, Reclining Adjuster Release, No.1 Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
72675-58040	Hook, Rear Seat Lock, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
72848-28030-A3	Cap, Seat Armrest, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
72880-58890-A1	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
72890-58880-A1	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
73373-28040	Cover, Rear Seat Shoulder Belt Hole, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
73373-28060	Cover, Rear Seat Shoulder Belt Hole, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78060-58130-A0	Table Assy, Rear Seat Side	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78061-58060-A0	Table, Rear Seat Side	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78656-58030	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78656-58040-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78656-58050-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78656-58060-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78731-58020-A0	Arm, Sub Seat Link, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78731-58030-A0	Arm, Sub Seat Link, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
78990-58030	Adjuster Assy, Rear Seat Footrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79101-58050	Frame Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79103-58070	Frame Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79105-58070	Leg Sub-Assy, No.1 Seat, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79959-58230-C0	Cover, Rear Seat Leg, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79959-58240-C0	Cover, Rear Seat Leg, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79959-58250-C0	Cover, Rear Seat Leg, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79965-28230-C0	Cover, Rear Seat Leg Side, No.2	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
79966-28170-C0	Cover, Rear Seat Leg Side, No.3	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90105-10048	Bolt, Flywheel Setting	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90105-12394	BOLT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90167-40044	BOLT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90176-08044	NUT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90179-08241	NUT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90467-05161-C0	Clip	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90467-08186-A7	Clip(For Front Seat Cushion Inner Shield)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90467-08186-C0	Clip(For Front Bumper), No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90467-08186-C3	Clip(For Front Bumper), No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90467-10161	Clip	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
90520-01006	Ring, Shaft Snap(For Lumber Support Lever)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
91552-11020	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
91553-01225	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
91674-A1025	BOLT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
93240-56020	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
93568-55016	Screw	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
94150-81000	NUT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
94151-80800	Nut (For Transmission Control Cable)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(RH) (1501- )AGH30,GGH30..G,Q)
