Search › Model › AGH30

AGH30

Toyota ALPHARD-VELLFIRE · 2015 · 3,604 parts · 210 categories

3,604 items

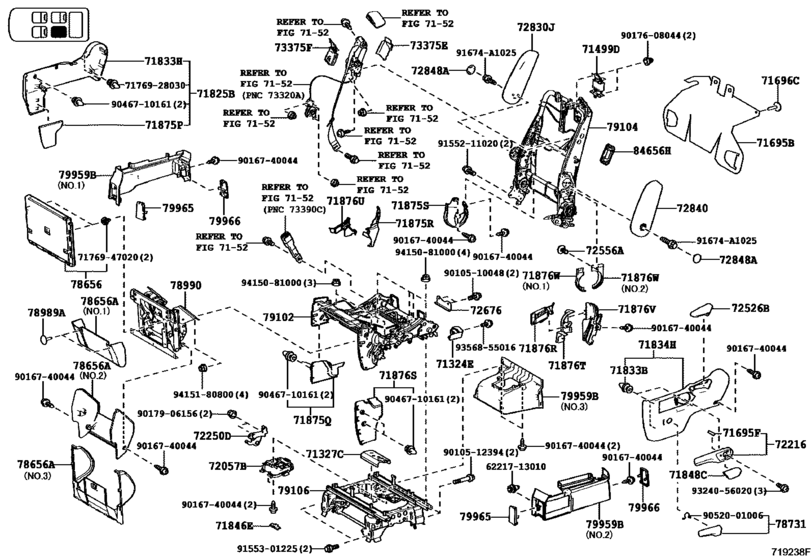

Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q) 64

#	OEM	Part name
71324	71324-58080	Cushion, Rear Seat, Lh
71327	71307-58010	Bracket, Rear Seat Cushion
71499	71499-28080	Damper, Rear Seat Cushion Spring
71695	71695-58110	Protector, Rear Seat, No.1 Lh
71695	71537-28080	Protector, Rear Seat, No.1
71696	90467-05161-C0	Clip
71825	71825-58090-A0	Moulding, Rear Seat Cushion, Rh
71833	62217-13010	Clip(For Rear Floor Mat Plate)
71833	71833-58070-A0	Cover, Rear Seat Reclining, No.1 Rh
71834	71834-58090-A0	Cover, Rear Seat Reclining, No.1 Lh
71848	71848-58200-A0	Cap, Seat Adjuster Cover, Rh
71875	71875-58480-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875	71875-58390-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875	71875-58490-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71875	71875-28490-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)
71876	71876-28440-A0	Cover, Reclining Adjuster Inside, Lh (For Lh Seat)
71876	71876-58370-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876	71876-58380-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876	71876-58440-A0	Cover, Reclining Adjuster Inside, Lh (For Front Seat)
71876	71876-58520-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)
71876	71876-28460-A0	Cover, Reclining Adjuster Inside, Lh
71876	71876-28470-A0	Cover, Reclining Adjuster Inside, Lh
72216	72216-58010-A0	Stop, Driver Seat
72526	72526-28130-A0	Handle, Reclining Adjuster Release, Lh
72556	90467-08186-A7	Clip(For Front Seat Cushion Inner Shield)
72556	90467-08186-C0	Clip(For Front Bumper), No.1
72556	90467-08186-C3	Clip(For Front Bumper), No.1
72676	72675-58050	Hook, Rear Seat Lock, Lh
72830	72880-58890-A1	Armrest Assy, Rear Seat, Rh
72840	72890-58880-A1	Armrest Assy, Rear No.1 Seat, Lh
72848	72848-28030-A3	Cap, Seat Armrest, No.1
73375	73373-28050	Cover, Rear Seat Shoulder Belt Hole, Lh
73375	73373-28070	Cover, Rear Seat Shoulder Belt Hole, Lh
78656	78656-58030	Cover, Rear Seat Legrest
78656	78656-58040-C0	Cover, Rear Seat Legrest
78656	78656-58050-C0	Cover, Rear Seat Legrest
78656	78656-58060-C0	Cover, Rear Seat Legrest
78731	78731-58020-A0	Arm, Sub Seat Link, No.1
78731	78731-58030-A0	Arm, Sub Seat Link, No.1
78990	78990-58030	Adjuster Assy, Rear Seat Footrest
79102	79102-58050	Frame Sub-Assy, No.1 Seat Cushion, Lh
79104	79104-58040	Frame Sub-Assy, No.1 Seat Back, Lh
79106	79106-58090	Leg Sub Assy, No.1 Seat, Lh
79959	79959-58280-C0	Cover, Rear Seat Leg, Lh
79959	79959-58290-C0	Cover, Rear Seat Leg, Lh
79959	79959-58300-C0	Cover, Rear Seat Leg, Lh
79965	79965-28230-C0	Cover, Rear Seat Leg Side, No.2
79966	79966-28170-C0	Cover, Rear Seat Leg Side, No.3
91674	91674-A1025	BOLT FLANGE
7176928030	71769-28030	Clip, Rear Seat Back Board
7176947020	71769-47020	Clip, Rear Seat Back Board
9010510048	90105-10048	Bolt, Flywheel Setting
9010512394	90105-12394	BOLT FLANGE
9016740044	90167-40044	BOLT
9017608044	90176-08044	NUT
9017906156	90179-06156	Nut (For Transmission Control Cable)
9046710161	90467-10161	Clip
9052001006	90520-01006	Ring, Shaft Snap(For Lumber Support Lever)
9155211020	91552-11020	New Genuine Part
9155301225	91553-01225	New Genuine Part
9324056020	93240-56020	New Genuine Part
9356855016	93568-55016	Screw
9415081000	94150-81000	NUT FLANGE
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
62217-13010	Clip(For Rear Floor Mat Plate)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71307-58010	Bracket, Rear Seat Cushion	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71324-58080	Cushion, Rear Seat, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71499-28080	Damper, Rear Seat Cushion Spring	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71537-28080	Protector, Rear Seat, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71695-58110	Protector, Rear Seat, No.1 Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71769-28030	Clip, Rear Seat Back Board	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71769-47020	Clip, Rear Seat Back Board	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71825-58090-A0	Moulding, Rear Seat Cushion, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71833-58070-A0	Cover, Rear Seat Reclining, No.1 Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71834-58090-A0	Cover, Rear Seat Reclining, No.1 Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71848-58200-A0	Cap, Seat Adjuster Cover, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71875-28490-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71875-58390-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71875-58480-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71875-58490-A0	Cover, Reclining Adjuster Inside, Rh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-28440-A0	Cover, Reclining Adjuster Inside, Lh (For Lh Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-28460-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-28470-A0	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-58370-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-58380-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-58440-A0	Cover, Reclining Adjuster Inside, Lh (For Front Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
71876-58520-A0	Cover, Reclining Adjuster Inside, Lh (For Rear No.1 Seat)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
72216-58010-A0	Stop, Driver Seat	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
72526-28130-A0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
72675-58050	Hook, Rear Seat Lock, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
72848-28030-A3	Cap, Seat Armrest, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
72880-58890-A1	Armrest Assy, Rear Seat, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
72890-58880-A1	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
73373-28050	Cover, Rear Seat Shoulder Belt Hole, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
73373-28070	Cover, Rear Seat Shoulder Belt Hole, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78656-58030	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78656-58040-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78656-58050-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78656-58060-C0	Cover, Rear Seat Legrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78731-58020-A0	Arm, Sub Seat Link, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78731-58030-A0	Arm, Sub Seat Link, No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
78990-58030	Adjuster Assy, Rear Seat Footrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79102-58050	Frame Sub-Assy, No.1 Seat Cushion, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79104-58040	Frame Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79106-58090	Leg Sub Assy, No.1 Seat, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79959-58280-C0	Cover, Rear Seat Leg, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79959-58290-C0	Cover, Rear Seat Leg, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79959-58300-C0	Cover, Rear Seat Leg, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79965-28230-C0	Cover, Rear Seat Leg Side, No.2	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
79966-28170-C0	Cover, Rear Seat Leg Side, No.3	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90105-10048	Bolt, Flywheel Setting	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90105-12394	BOLT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90167-40044	BOLT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90176-08044	NUT	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90179-06156	Nut (For Transmission Control Cable)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90467-05161-C0	Clip	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90467-08186-A7	Clip(For Front Seat Cushion Inner Shield)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90467-08186-C0	Clip(For Front Bumper), No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90467-08186-C3	Clip(For Front Bumper), No.1	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90467-10161	Clip	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
90520-01006	Ring, Shaft Snap(For Lumber Support Lever)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
91552-11020	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
91553-01225	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
91674-A1025	BOLT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
93240-56020	New Genuine Part	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
93568-55016	Screw	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
94150-81000	NUT FLANGE	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)
94151-80800	Nut (For Transmission Control Cable)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT(LH) (1501- )AGH30,GGH30..G,Q)

Source: Public OEM parts-catalog data
Variants: 2 / 15
Category: 210
Collected: 2026-08-02
