AGH30

Toyota ALPHARD-VELLFIRE · 2015 · 3,604 parts · 210 categories

← Back to categories

3,604 items

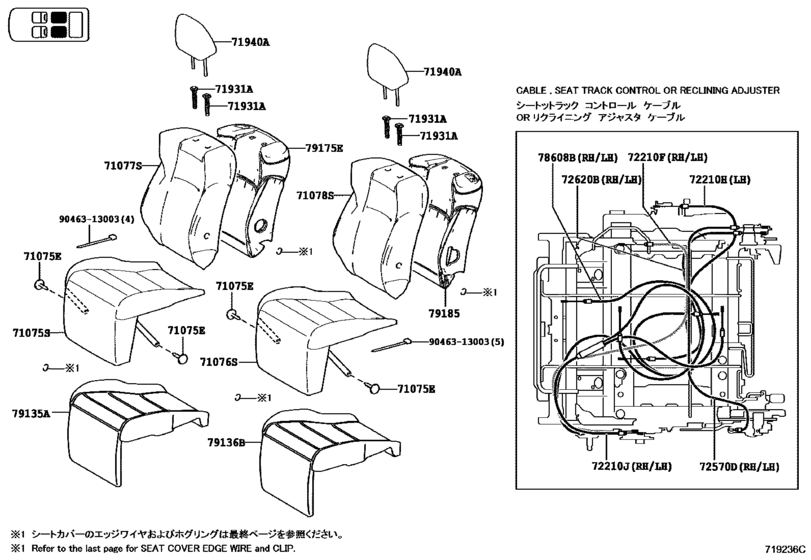

Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q) 18

#	OEM	Part name
71075	90467-05161-C0	Clip
71075	71075-58240-A2	Cover, Rear Seat Cushion, Rh (For Separate Type)
71076	71076-58240-A1	Cover, Rear Seat Cushion, Lh (For Separate Type)
71077	71077-58220-A2	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-58220-A2	Cover, Rear Seat Back, Lh(For Separate Type)
71931	71930-44020-A7	Support, Front Seat Headrest
71931	71931-47010-02	Support, Front Seat Headrest
71940	71940-58330-A2	Headrest Assy, Rear Seat
72210	72210-58240	Cable Assy, Seat Track Control
72210	72210-58250	Cable Assy, Seat Track Control
72570	72570-58020	Cable Assy, Reclining Adjusting
72620	72620-58020	Cable Assy, Rear No.1 Seat Lock
78608	78608-58020	Cable Sub-Assy, Legrest Lock Control
79135	71611-58050	Pad, No.1 Seat Cushion, Rh
79136	71612-58050	Pad, No.1 Seat Cushion, Lh
79175	71651-58040	Pad, No.1 Seat Back, Rh
79185	71652-58040	Pad, No.1 Seat Back, Lh
9046313003	90463-13003	Clamp, Hood Lock Control Wire

OEM	Part name	Category
71075-58240-A2	Cover, Rear Seat Cushion, Rh (For Separate Type)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71076-58240-A1	Cover, Rear Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71077-58220-A2	Cover, Rear Seat Back, Rh (For Separate Type)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71078-58220-A2	Cover, Rear Seat Back, Lh(For Separate Type)	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71611-58050	Pad, No.1 Seat Cushion, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71612-58050	Pad, No.1 Seat Cushion, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71651-58040	Pad, No.1 Seat Back, Rh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71652-58040	Pad, No.1 Seat Back, Lh	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71930-44020-A7	Support, Front Seat Headrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71931-47010-02	Support, Front Seat Headrest	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
71940-58330-A2	Headrest Assy, Rear Seat	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
72210-58240	Cable Assy, Seat Track Control	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
72210-58250	Cable Assy, Seat Track Control	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
72570-58020	Cable Assy, Reclining Adjusting	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
72620-58020	Cable Assy, Rear No.1 Seat Lock	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
78608-58020	Cable Sub-Assy, Legrest Lock Control	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
90463-13003	Clamp, Hood Lock Control Wire	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
90467-05161-C0	Clip	Seat & Seat Track ([01.2015 - ] REAR NO.1 SEAT (1501- )AGH30,GGH30..G,Q)
