Search › Model › AGH30

AGH30

Toyota ALPHARD-VELLFIRE · 2015 · 3,604 parts · 210 categories

3,604 items

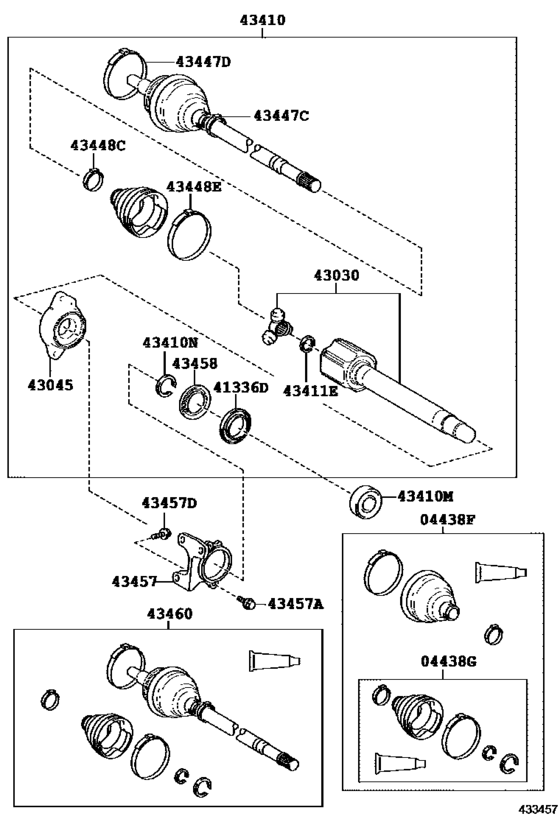

Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30) 22

#	OEM	Part name
4438	04427-58060	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-58062	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-58061	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-58040	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-78010	Cover, Front Drive Shaft Dust, Rh
43030	43030-58020	Joint Assy, Front Drive Inboard, Rh
43045	43045-64020	Case Sub Assy, Drive Shaft Bearing
43410	43410-58030	Shaft Assy, Front Drive, Rh
43410	90311-40041	Oil Seal, Front Drive Shaft, Rh
43410	43425-78010	Ring, Hole Snap (For Front Drive Shaft Rh)
43411	43425-78020	Ring, Hole Snap (For Front Drive Shaft Rh)
43447	42345-58140	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42346-24020	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-58020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-58130	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	42345-78010	Clamp (For Front Axle Inboard Joint Boot Rh)
43448	42345-78020	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)
43457	43457-21010	Bracket, Drive Shaft Bearing
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43457	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43458	43458-78010	Cover, Front Drive Shaft Dust
43460	43460-59825	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04427-58060	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
04427-58061	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
04427-58062	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
04437-58040	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
41336-78010	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
42345-58020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
42345-58130	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
42345-58140	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
42345-78010	Clamp (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
42345-78020	Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
42346-24020	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43030-58020	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43045-64020	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43410-58030	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43425-78010	Ring, Hole Snap (For Front Drive Shaft Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43425-78020	Ring, Hole Snap (For Front Drive Shaft Rh)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43457-21010	Bracket, Drive Shaft Bearing	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43458-78010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
43460-59825	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
90311-40041	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([01.2015 - ] RH (1501- )AGH30)
