Search › Model › AGH30
AGH30

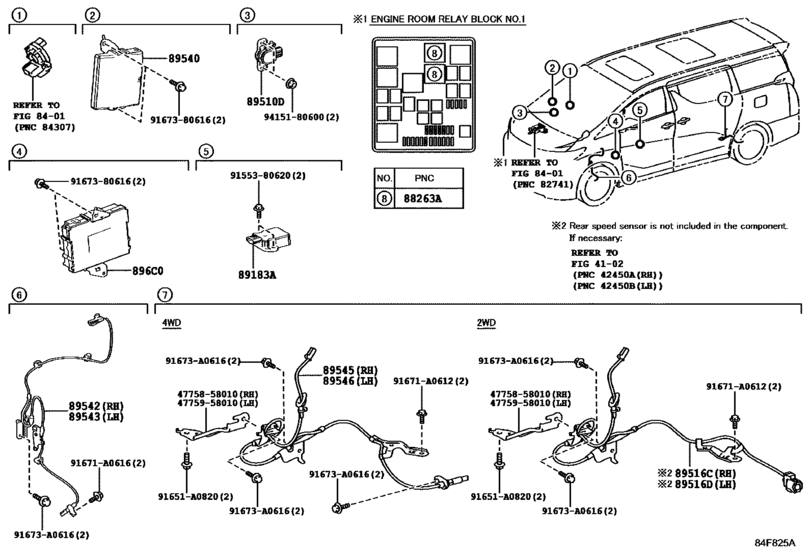

Abs & Vsc ([01.2015 - ] (1501- )) 13
| # | OEM | Part name |
|---|---|---|
| 89516 | 89516-58060 | Wire, Skid Control Sensor, Rh |
| 89516 | 89516-58070 | Wire, Skid Control Sensor, Lh |
| 89542 | 89542-58020 | Sensor, Speed, Front Rh |
| 89543 | 89543-58020 | Sensor, Speed, Front Lh |
| 91651 | 91651-A0820 | BOLT |
| 91671 | 91671-A0612 | BOLT FLANGE |
| 91671 | 91671-A0616 | BOLT FLANGE |
| 91673 | 91673-A0616 | BOLT, FLANGE |
| 4775858010 | 47758-58010 | Bracket, Wire Clamp, Rh No.1 |
| 4775958010 | 47759-58010 | Bracket, Wire Clamp, Lh No.1 |
| 9155380620 | 91553-80620 | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 47758-58010 | Bracket, Wire Clamp, Rh No.1 | Abs & Vsc ([01.2015 - ] (1501- )) |
| 47759-58010 | Bracket, Wire Clamp, Lh No.1 | Abs & Vsc ([01.2015 - ] (1501- )) |
| 89516-58060 | Wire, Skid Control Sensor, Rh | Abs & Vsc ([01.2015 - ] (1501- )) |
| 89516-58070 | Wire, Skid Control Sensor, Lh | Abs & Vsc ([01.2015 - ] (1501- )) |
| 89542-58020 | Sensor, Speed, Front Rh | Abs & Vsc ([01.2015 - ] (1501- )) |
| 89543-58020 | Sensor, Speed, Front Lh | Abs & Vsc ([01.2015 - ] (1501- )) |
| 91553-80620 | BOLT FLANGE | Abs & Vsc ([01.2015 - ] (1501- )) |
| 91651-A0820 | BOLT | Abs & Vsc ([01.2015 - ] (1501- )) |
| 91671-A0612 | BOLT FLANGE | Abs & Vsc ([01.2015 - ] (1501- )) |
| 91671-A0616 | BOLT FLANGE | Abs & Vsc ([01.2015 - ] (1501- )) |
| 91673-80616 | Bolt, W/washer | Abs & Vsc ([01.2015 - ] (1501- )) |
| 91673-A0616 | BOLT, FLANGE | Abs & Vsc ([01.2015 - ] (1501- )) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Abs & Vsc ([01.2015 - ] (1501- )) |
