Search › Model › AF34S

AF34S

Suzuki CULTUS · 1989 · 3,665 parts · 178 categories

3,665 items

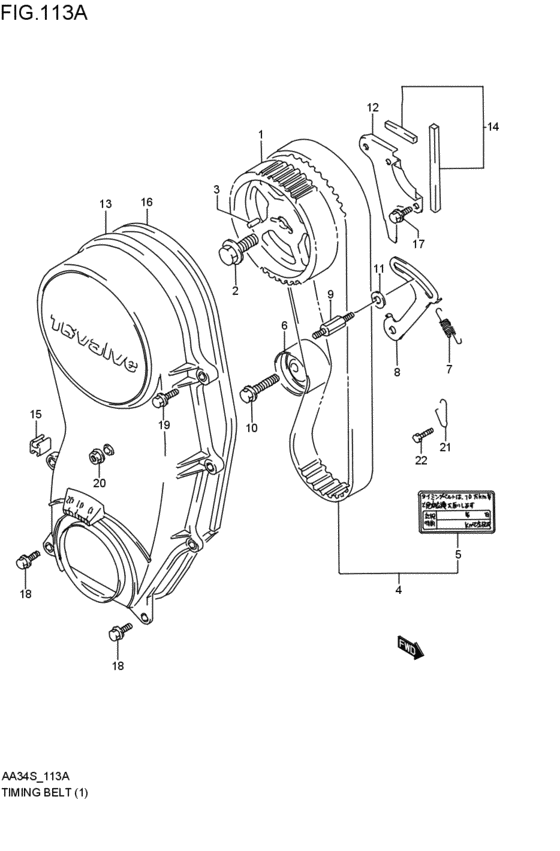

timing belt (OHC; 1990-06-01~) 33

#	OEM	Part name
1	12741-53B01-000	PULLEY,CAMSHAFT TIMING
2	01550-12253-000	Bolt
2	01550-1225A-000	Bolt
3	04221-05109-000	PIN
4	11407-70C00-000	BELT SET,TIMING
5	11499-60D00-000	ラベル,タイミングベルト
6	12810-71C02-000	TENSIONER,TIMING BELT
7	12821-70C00-000	Spring
7	12821-70C01-000	SPRING,TENSIONER
8	12822-70C00-000	PLATE,TENSIONER
9	12825-71C01-000	ボルト,テンショナプレート
9	12825-71C02-000	BOLT,TENSIONER PLATE
10	01550-08353-000	Bolt, rear
10	01550-0835B-000	Bolt
10	01550-0835A-000	Bolt
10	01550-08403-000	Bolt
10	01550-0840B-000	Bolt
10	01550-0840A-000	Bolt
11	09160-06109-000	WASHER(6.5X18X1.6)
12	11360-71C00-000	COVER,TIMING BELT INSIDE
13	11390-70C00-000	COVER,TIMING BELT OUTSIDE
14	11480-71C00-000	SEAL SET,TIMING BELT COVER
15	11394-70B00-000	SEAL
16	11396-71C00-000	SEAL,TIMING BELT COVER OUT
17	09103-06083-000	Bolt (6x12)
17	09103-06285-000	BOLT(6X12) - Bolt (6x12)
18	09103-06186-000	Bolt - Bolt (6x16)
18	01550-06167-000	Bolt
19	09103-06187-000	Bolt (6x20)
19	01550-06207-000	Bolt
20	09159-06077-000	NUT
22	01500-06253-000	Bolt - Bolt, fuel injection bracket
22	01500-0625A-000	Bolt - Bolt, gear shift arm

OEM	Part name	Category
01500-06253-000	Bolt - Bolt, fuel injection bracket	timing belt (OHC; 1990-06-01~)
01500-0625A-000	Bolt - Bolt, gear shift arm	timing belt (OHC; 1990-06-01~)
01550-06167-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-06207-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-08353-000	Bolt, rear	timing belt (OHC; 1990-06-01~)
01550-0835A-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-0835B-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-08403-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-0840A-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-0840B-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-12253-000	Bolt	timing belt (OHC; 1990-06-01~)
01550-1225A-000	Bolt	timing belt (OHC; 1990-06-01~)
04221-05109-000	PIN	timing belt (OHC; 1990-06-01~)
09103-06083-000	Bolt (6x12)	timing belt (OHC; 1990-06-01~)
09103-06186-000	Bolt - Bolt (6x16)	timing belt (OHC; 1990-06-01~)
09103-06187-000	Bolt (6x20)	timing belt (OHC; 1990-06-01~)
09103-06285-000	BOLT(6X12) - Bolt (6x12)	timing belt (OHC; 1990-06-01~)
09159-06077-000	NUT	timing belt (OHC; 1990-06-01~)
09160-06109-000	WASHER(6.5X18X1.6)	timing belt (OHC; 1990-06-01~)
11360-71C00-000	COVER,TIMING BELT INSIDE	timing belt (OHC; 1990-06-01~)
11390-70C00-000	COVER,TIMING BELT OUTSIDE	timing belt (OHC; 1990-06-01~)
11394-70B00-000	SEAL	timing belt (OHC; 1990-06-01~)
11396-71C00-000	SEAL,TIMING BELT COVER OUT	timing belt (OHC; 1990-06-01~)
11407-70C00-000	BELT SET,TIMING	timing belt (OHC; 1990-06-01~)
11480-71C00-000	SEAL SET,TIMING BELT COVER	timing belt (OHC; 1990-06-01~)
11499-60D00-000	ラベル,タイミングベルト	timing belt (OHC; 1990-06-01~)
12741-53B01-000	PULLEY,CAMSHAFT TIMING	timing belt (OHC; 1990-06-01~)
12810-71C02-000	TENSIONER,TIMING BELT	timing belt (OHC; 1990-06-01~)
12821-70C00-000	Spring	timing belt (OHC; 1990-06-01~)
12821-70C01-000	SPRING,TENSIONER	timing belt (OHC; 1990-06-01~)
12822-70C00-000	PLATE,TENSIONER	timing belt (OHC; 1990-06-01~)
12825-71C01-000	ボルト,テンショナプレート	timing belt (OHC; 1990-06-01~)
12825-71C02-000	BOLT,TENSIONER PLATE	timing belt (OHC; 1990-06-01~)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 178
Collected: 2026-08-01
