AF34S

Suzuki CULTUS · 1989 · 3,665 parts · 178 categories

3,665 items

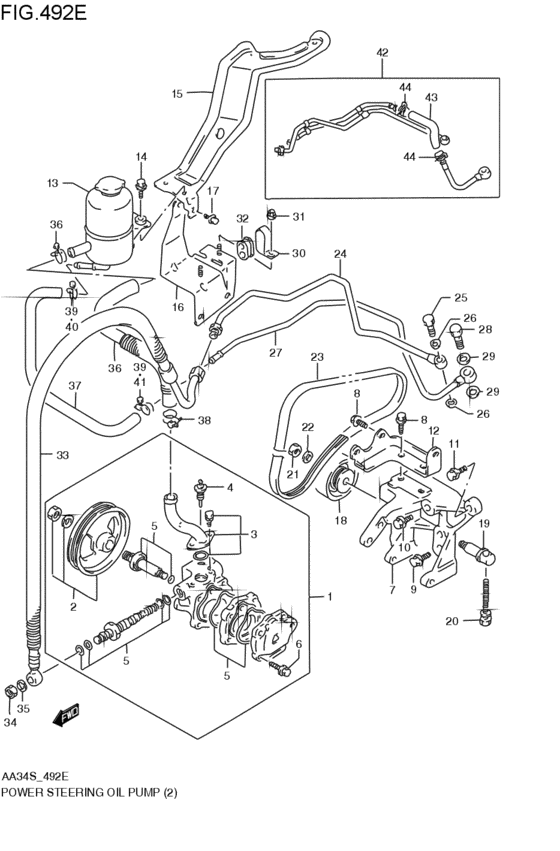

power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01) 54

#	OEM	Part name
1	49110-60B11-000	Pump assy,power steering
1	49110-60E00-000	PUMP ASSY,POWER STEERING
2	49111-60B10-000	PULLEY SET
3	49112-60B10-000	Connector set
4	49113-86000-000	TERMINAL SET
5	49114-86000-000	SEAL SET
6	49115-86000-000	BOLT SET
7	49120-60G10-000	BRACKET,POWER STEERING
8	09103-08254-000	BOLT(8X20) - Bolt, rear
9	09103-10229-000	BOLT(10X32) - Bolt, crankshaft (10x32)
10	09103-10236-000	BOLT(10X69)
11	09103-10235-000	BOLT(10X50) - Bolt (10x50)
12	49130-60B20-000	BRACKET,PUMP
13	49140-60E10-000	TANK,POWER STEERING OIL
14	01550-06253-000	Bolt (6x25)
14	01550-0625B-000	Bolt - Bolt, head cover
14	01550-0625A-000	Bolt
15	49150-60B20-000	BRACKET,OIL TANK
16	49243-60E20-000	STAY,OIL TANK
17	01550-06123-000	Bolt
17	01550-0612B-000	Bolt - Bolt, clamp
17	01550-0612A-000	Bolt
18	49160-50G10-000	PULLEY,BELT TENSION
19	49161-60B10-000	BOLT,BELT TENSION PULLEY
20	49162-60B10-000	ボルト,ベルトテンション
20	95912-60E10-000	BOLT,ADJUST
21	08310-00103-000	Nut
21	08310-0010B-000	NUT
21	08310-0010A-000	NUT
22	08321-01103-000	Washer - Lock washer
22	08321-0110B-000	WASHER,LOCK - Washer, knuckle end
22	08321-0110A-000	WASHER,LOCK
23	49180-63B10-000	BELT,POWER STEERING
23	49180-63B10-CDN	Belt,air cond 4pk920
24	49211-60E60-000	パイプ,ハイプレッシャ
24	49211-60E61-000	パイプ,ハイプレッシャ
25	49215-86000-000	BOLT,HIGH PRESSURE
26	09168-12017-000	GASKET(12X17X1) - Gasket, drain plug
27	49212-60E60-000	パイプ,ロープレッシャ
28	09360-14011-000	UNION
29	09168-14009-000	Washer
29	09168-14014-000	GASKET(14X18X1.5)
29	09168-14011-000	GASKET(14X20X1.5)
30	49231-60E00-000	CLAMP,PIPE
31	08316-10063-000	Nut
31	08316-1006B-000	NUT
32	49232-60E00-000	BUSHING,POWER STRG PIPE
33	49221-60E10-000	HOSE,HIGH PRESSURE
33	49221-60E11-000	HOSE,HIGH PRESSURE
34	09140-12039-000	NUT
35	09162-12006-000	WASHER,LOCK
36	49222-60E10-000	HOSE,LOW PRESS TANK TO PUMP
37	49223-60E10-000	HOSE,LOW PRESS PIPE TO TANK
38	09400-24301-000	CLAMP

OEM	Part name	Category
01550-06123-000	Bolt	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
01550-0612A-000	Bolt	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
01550-0612B-000	Bolt - Bolt, clamp	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
01550-06253-000	Bolt (6x25)	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
01550-0625A-000	Bolt	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
01550-0625B-000	Bolt - Bolt, head cover	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08310-00103-000	Nut	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08310-0010A-000	NUT	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08310-0010B-000	NUT	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08316-10063-000	Nut	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08316-1006B-000	NUT	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08321-01103-000	Washer - Lock washer	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08321-0110A-000	WASHER,LOCK	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
08321-0110B-000	WASHER,LOCK - Washer, knuckle end	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09103-08254-000	BOLT(8X20) - Bolt, rear	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09103-10229-000	BOLT(10X32) - Bolt, crankshaft (10x32)	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09103-10235-000	BOLT(10X50) - Bolt (10x50)	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09103-10236-000	BOLT(10X69)	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09140-12039-000	NUT	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09162-12006-000	WASHER,LOCK	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09168-12017-000	GASKET(12X17X1) - Gasket, drain plug	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09168-14009-000	Washer	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09168-14011-000	GASKET(14X20X1.5)	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09168-14014-000	GASKET(14X18X1.5)	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09360-14011-000	UNION	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
09400-24301-000	CLAMP	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49110-60B11-000	Pump assy,power steering	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49110-60E00-000	PUMP ASSY,POWER STEERING	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49111-60B10-000	PULLEY SET	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49112-60B10-000	Connector set	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49113-86000-000	TERMINAL SET	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49114-86000-000	SEAL SET	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49115-86000-000	BOLT SET	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49120-60G10-000	BRACKET,POWER STEERING	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49130-60B20-000	BRACKET,PUMP	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49140-60E10-000	TANK,POWER STEERING OIL	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49150-60B20-000	BRACKET,OIL TANK	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49160-50G10-000	PULLEY,BELT TENSION	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49161-60B10-000	BOLT,BELT TENSION PULLEY	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49162-60B10-000	ボルト,ベルトテンション	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49180-63B10-000	BELT,POWER STEERING	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49180-63B10-CDN	Belt,air cond 4pk920	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49211-60E60-000	パイプ,ハイプレッシャ	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49211-60E61-000	パイプ,ハイプレッシャ	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49212-60E60-000	パイプ,ロープレッシャ	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49215-86000-000	BOLT,HIGH PRESSURE	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49221-60E10-000	HOSE,HIGH PRESSURE	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49221-60E11-000	HOSE,HIGH PRESSURE	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49222-60E10-000	HOSE,LOW PRESS TANK TO PUMP	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49223-60E10-000	HOSE,LOW PRESS PIPE TO TANK	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49231-60E00-000	CLAMP,PIPE	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49232-60E00-000	BUSHING,POWER STRG PIPE	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
49243-60E20-000	STAY,OIL TANK	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
95912-60E10-000	BOLT,ADJUST	power steering oil pump ((RE,GE,SA)(91/7カラ92/4ナデ); RE,GE,SA,E,HG; 1991-07-01~1992-04-01)
