| 01550-06123-000 |
Bolt |

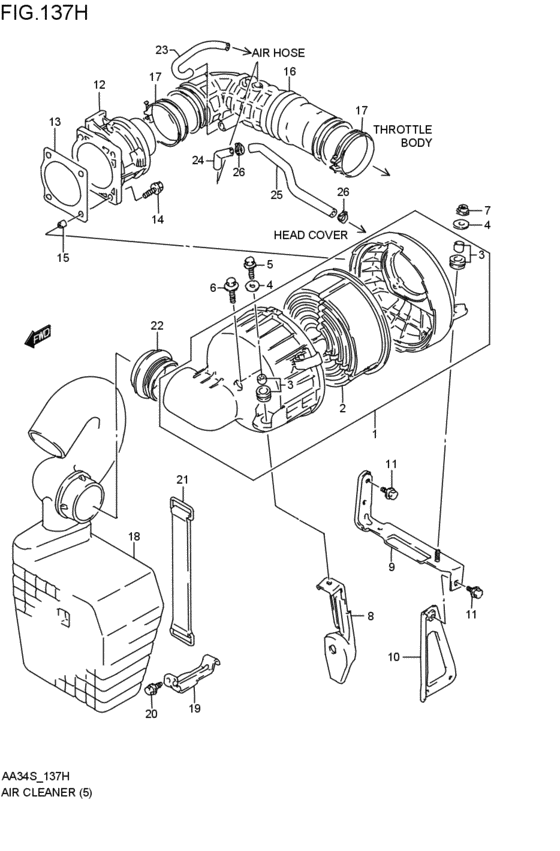

air cleaner (DOHC; 1990-09-01~) |
| 01550-0612A-000 |
Bolt |
air cleaner (DOHC; 1990-09-01~) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
air cleaner (DOHC; 1990-09-01~) |
| 01550-06203-000 |
Bolt |
air cleaner (DOHC; 1990-09-01~) |
| 01550-0620B-000 |
Bolt - Bolt, inspection cap |
air cleaner (DOHC; 1990-09-01~) |
| 01550-06253-000 |
Bolt (6x25) |
air cleaner (DOHC; 1990-09-01~) |
| 01550-0625A-000 |
Bolt |
air cleaner (DOHC; 1990-09-01~) |
| 01550-0625B-000 |
Bolt - Bolt, head cover |
air cleaner (DOHC; 1990-09-01~) |
| 08316-10063-000 |
Nut |
air cleaner (DOHC; 1990-09-01~) |
| 08316-1006B-000 |
NUT |
air cleaner (DOHC; 1990-09-01~) |
| 09116-06167-000 |
BOLT(6X20) - Bolt (6x20) |
air cleaner (DOHC; 1990-09-01~) |
| 09160-06077-000 |
WASHER(6.5X20X1.2) - Washer (6.5x20x1.2) |
air cleaner (DOHC; 1990-09-01~) |
| 09180-06208-000 |
SPACER(6.8X10X6) |
air cleaner (DOHC; 1990-09-01~) |
| 09401-18404-000 |
CLIP |
air cleaner (DOHC; 1990-09-01~) |
| 09402-68208-000 |
CLAMP |
air cleaner (DOHC; 1990-09-01~) |
| 09462-00015-000 |
BAND |
air cleaner (DOHC; 1990-09-01~) |
| 11191-64B11-000 |
Hose,breather |
air cleaner (DOHC; 1990-09-01~) |
| 11192-64B11-000 |
PIPE,VACUUM |
air cleaner (DOHC; 1990-09-01~) |
| 11197-64B00-000 |
パイプ,ブリーザ |
air cleaner (DOHC; 1990-09-01~) |
| 13700-64B03-000 |
CLEANER ASSY,AIR |
air cleaner (DOHC; 1990-09-01~) |
| 13760-64B02-000 |
RESONATOR ASSY,AIR SUCTION |
air cleaner (DOHC; 1990-09-01~) |
| 13765-64B02-000 |
BRACKET,RESONATOR |
air cleaner (DOHC; 1990-09-01~) |
| 13766-64B00-000 |
GROMMET,RESONATOR |
air cleaner (DOHC; 1990-09-01~) |
| 13780-82400-000 |
ELEMENT,AIR CLEANER |
air cleaner (DOHC; 1990-09-01~) |
| 13780-824A0-000 |
Element,air cleaner |
air cleaner (DOHC; 1990-09-01~) |
| 13800-64B40-000 |
Meter,air flow |
air cleaner (DOHC; 1990-09-01~) |
| 13805-64B01-000 |
GASKET,AFM |
air cleaner (DOHC; 1990-09-01~) |
| 13811-61B00-000 |
BRACKET,AIR CLNR,NO.1 |
air cleaner (DOHC; 1990-09-01~) |
| 13813-64BT0-000 |
GROMMET SET,AIR CLEANER |
air cleaner (DOHC; 1990-09-01~) |
| 13815-64B01-000 |
BRACKET,AIR CLNR NO.2 |
air cleaner (DOHC; 1990-09-01~) |
| 13825-64B00-000 |
Stay,air clnr brkt |
air cleaner (DOHC; 1990-09-01~) |
| 13881-64B11-000 |
HOSE,AFM OUTLET |
air cleaner (DOHC; 1990-09-01~) |
