Search › Model › AE95
AE95

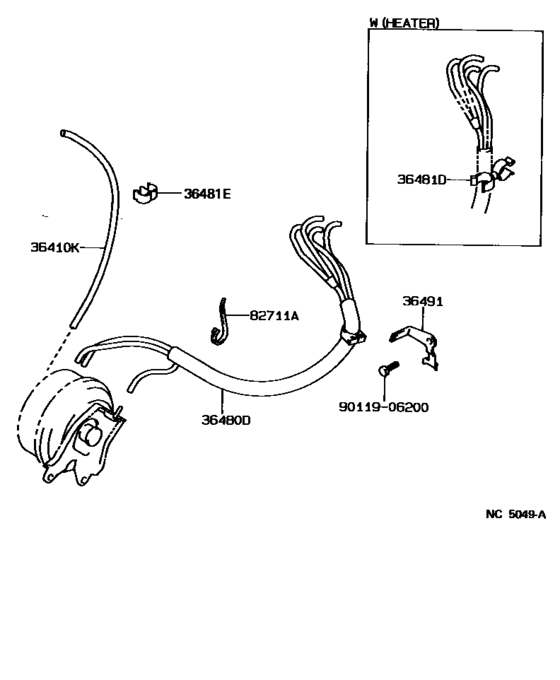

Transfer Vacuum Piping ([09.1990 - ] E57F5 (9009- )5F) 5
| # | OEM | Part name |
|---|---|---|
| 36410 | 90999-92003 | Hose, Breather (For Transfer Case) |
| 36480 | 36480-12011 | Tube Assy, Transfer Vacuum |
| 36481 | 90464-00497 | Clamp, No.1 (For Transfer Vacuum) |
| 82711 | 82711-22270 | Clamp(For Transfer Vacuum Tube) |
| 9011906200 | 90119-06200 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 36480-12011 | Tube Assy, Transfer Vacuum | Transfer Vacuum Piping ([09.1990 - ] E57F5 (9009- )5F) |
| 82711-22270 | Clamp(For Transfer Vacuum Tube) | Transfer Vacuum Piping ([09.1990 - ] E57F5 (9009- )5F) |
| 90119-06200 | New Genuine Part | Transfer Vacuum Piping ([09.1990 - ] E57F5 (9009- )5F) |
| 90464-00497 | Clamp, No.1 (For Transfer Vacuum) | Transfer Vacuum Piping ([09.1990 - ] E57F5 (9009- )5F) |
| 90999-92003 | Hose, Breather (For Transfer Case) | Transfer Vacuum Piping ([09.1990 - ] E57F5 (9009- )5F) |
