Search › Model › AE95
AE95

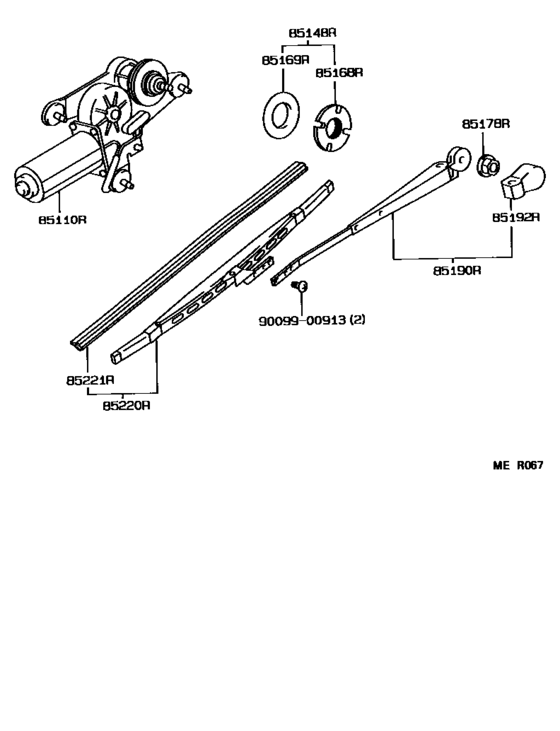

Rear Wiper ([09.1990 - ] (9009- )) 12
| # | OEM | Part name |
|---|---|---|
| 85110 | 85110-12470 | Motor Assy, Rear Wiper |
| 85148 | 85148-12020 | Nut, W/washer Packing, Rear Wiper Link Pivot |
| 85168 | 90179-22013 | Nut, Wiper Motor |
| 85169 | 90210-28002 | Washer, Rear Wiper Link Pivot, No.1 |
| 85178 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| 85190 | 85190-1A061 | Arm Assy, Rear Wiper |
| 85192 | 85192-13060 | Cover, Rear Wiper Arm |
| 85220 | 85220-22531 | Blade Assy, Rear Wiper |
| 85220 | 85242-23010 | Blade Assy, Rear Wiper |
| 85221 | 85221-16070 | Blade, Rear Wiper |
| 85221 | 85214-12H90 | Rubber, Blade Wiper |
| 9009900913 | 90099-00913 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 85110-12470 | Motor Assy, Rear Wiper | Rear Wiper ([09.1990 - ] (9009- )) |
| 85148-12020 | Nut, W/washer Packing, Rear Wiper Link Pivot | Rear Wiper ([09.1990 - ] (9009- )) |
| 85190-1A061 | Arm Assy, Rear Wiper | Rear Wiper ([09.1990 - ] (9009- )) |
| 85192-13060 | Cover, Rear Wiper Arm | Rear Wiper ([09.1990 - ] (9009- )) |
| 85214-12H90 | Rubber, Blade Wiper | Rear Wiper ([09.1990 - ] (9009- )) |
| 85220-22531 | Blade Assy, Rear Wiper | Rear Wiper ([09.1990 - ] (9009- )) |
| 85221-16070 | Blade, Rear Wiper | Rear Wiper ([09.1990 - ] (9009- )) |
| 85242-23010 | Blade Assy, Rear Wiper | Rear Wiper ([09.1990 - ] (9009- )) |
| 90099-00913 | SCREW | Rear Wiper ([09.1990 - ] (9009- )) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([09.1990 - ] (9009- )) |
| 90179-22013 | Nut, Wiper Motor | Rear Wiper ([09.1990 - ] (9009- )) |
| 90210-28002 | Washer, Rear Wiper Link Pivot, No.1 | Rear Wiper ([09.1990 - ] (9009- )) |
