AE95

Toyota COROLLA · 1987 · 4,917 parts · 183 categories

4,917 items

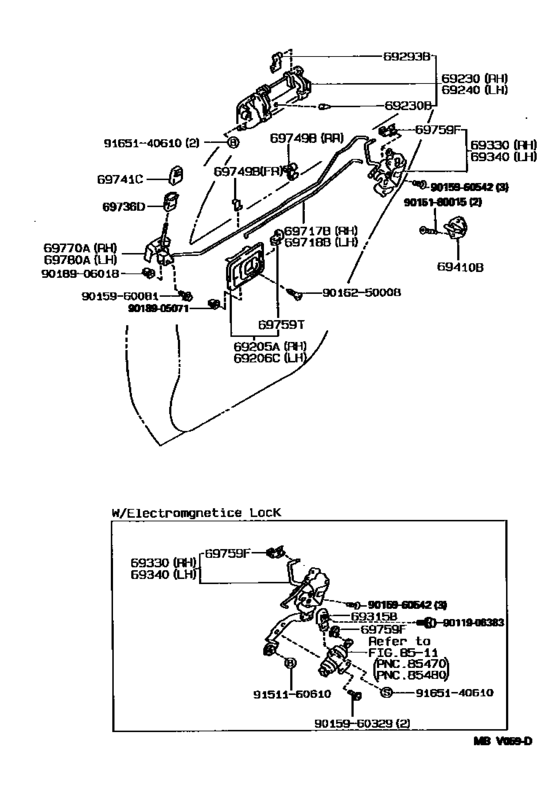

Rear Door Lock & Handle ([09.1990 - ] (9009- )) 48

#	OEM	Part name
69205	69206-12120-03	Handle Sub-Assy, Rear Door Inside, Rh
69205	69206-12120-04	Handle Sub-Assy, Rear Door Inside, Rh
69206	69205-12120-03	Handle Sub-Assy, Front Door Inside, Rh
69206	69205-12120-04	Handle Sub-Assy, Front Door Inside, Rh
69230	69230-12110	Handle Assy, Rear Door Outside, Rh
69230	90541-04014	Cushion, Console Box
69240	69240-12110	Handle Assy, Rear Door Outside, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69315	69315-12010	Retainer, Rear Door Lock Solenoid
69330	69330-12181	Lock Assy, Rear Door, Rh
69330	69330-12201	Lock Assy, Rear Door, Rh
69340	69340-12181	Lock Assy, Rear Door, Lh
69340	69340-12201	Lock Assy, Rear Door, Lh
69410	69410-87001	Plate Assy, Front Door Lock Striker
69410	69410-AA020	Plate Assy, Front Door Lock Striker
69717	69713-12040	Link, Rear Door Lock Remote Control, Rh
69718	69714-12050	Link, Rear Door Lock Remote Control, Lh
69736	69736-20090	Guide, Front Door Locking Link
69736	69736-12030	Guide, Front Door Lock Link
69741	69741-90K00-43	Knob, Front Door Lock Control
69741	69741-90K00-C0	Knob, Front Door Lock Control
69741	69741-90K00-J0	Knob, Front Door Lock Control
69749	69749-12040	Clamp, Front Door Lock Link
69749	69749-20010	Clamp, Front Door Lock Link
69749	69749-30020	Clamp, No.1(For Back Door Lock Control Cable)
69759	69759-12070	Snap, Rear Door Lock Control Link
69759	69759-20040	Snap, Auxiliary Catch Release Lever Control Link
69759	69759-20100	Snap, Tail Gate Handle
69759	69759-20110	Snap, Auxiliary Catch Release Lever Control Link
69759	69759-20060	Snap(For Rear Door Inside Handle)
69759	69759-20070	Snap(For Rear Door Inside Handle)
69770	69770-12040	Link Assy, Rear Door Inside Locking, Rh
69780	69780-12040	Link Assy, Rear Door Inside Locking, Lh
9011906383	90119-06383	New Genuine Part
9011906383	91651-A0610	BOLT WWASHER
9015180015	90151-80015	SCREW CROSSRECESS
9015180015	90148-80027	Screw Hex Lobular
9015960081	90159-60081	SCREW
9015960329	90159-60329	New Genuine Part
9015960542	90159-60542	SCREW WWASHER
9015960542	90159-60349	SCREW WWASHER
9016250008	90162-50008	SCREW
9018905071	90189-05071	New Genuine Part
9018906018	90189-06018	GROMMET
9151160610	91511-60610	New Genuine Part
9151160610	91511-B0610	BOLT FLANGE
9165140610	91651-40610	RIVET

OEM	Part name	Category
69205-12120-03	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69205-12120-04	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69206-12120-03	Handle Sub-Assy, Rear Door Inside, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69206-12120-04	Handle Sub-Assy, Rear Door Inside, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69230-12110	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69240-12110	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69293-12030	Snap, Front Door Outside Handle	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69293-12040	Snap, Front Door Outside Handle	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69315-12010	Retainer, Rear Door Lock Solenoid	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69330-12181	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69330-12201	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69340-12181	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69340-12201	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69410-87001	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69410-AA020	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69713-12040	Link, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69714-12050	Link, Rear Door Lock Remote Control, Lh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69736-12030	Guide, Front Door Lock Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69736-20090	Guide, Front Door Locking Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69741-90K00-43	Knob, Front Door Lock Control	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69741-90K00-C0	Knob, Front Door Lock Control	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69741-90K00-J0	Knob, Front Door Lock Control	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69749-12040	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69749-20010	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69749-30020	Clamp, No.1(For Back Door Lock Control Cable)	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69759-12070	Snap, Rear Door Lock Control Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69759-20040	Snap, Auxiliary Catch Release Lever Control Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69759-20060	Snap(For Rear Door Inside Handle)	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69759-20070	Snap(For Rear Door Inside Handle)	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69759-20100	Snap, Tail Gate Handle	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69759-20110	Snap, Auxiliary Catch Release Lever Control Link	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69770-12040	Link Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
69780-12040	Link Assy, Rear Door Inside Locking, Lh	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90119-06383	New Genuine Part	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90151-80015	SCREW CROSSRECESS	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90159-60081	SCREW	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90159-60329	New Genuine Part	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90159-60349	SCREW WWASHER	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90159-60542	SCREW WWASHER	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90162-50008	SCREW	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90189-05071	New Genuine Part	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90189-06018	GROMMET	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
90541-04014	Cushion, Console Box	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
91511-60610	New Genuine Part	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
91511-B0610	BOLT FLANGE	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
91651-40610	RIVET	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
91651-A0610	BOLT WWASHER	Rear Door Lock & Handle ([09.1990 - ] (9009- ))
