AE95

Toyota COROLLA · 1987 · 4,917 parts · 183 categories

4,917 items

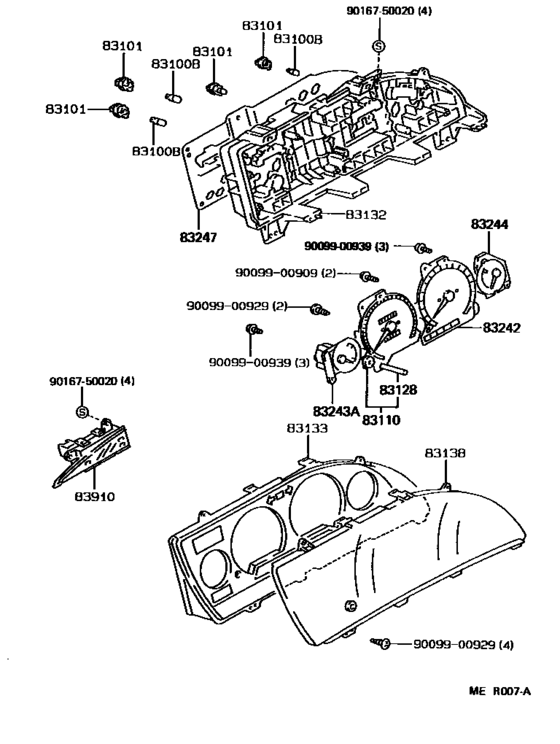

Meter ([09.1990 - ] W(TACHOMETER) (9009- )) 25

#	OEM	Part name
83100	83101-20080	Bulb, Combination Meter, No.1
83100	83109-12030	Bulb, Combination Meter, No.1
83100	90981-11018	Bulb, Position Indicator Lamp
83100	99132-12034	Bulb, Position Indicator Lamp
83100	00234-00158	Bulb, Position Indicator Lamp
83100	83101-20060	Socket Sub-Assy, Combination Meter Bulb
83101	83101-14030	Socket Sub-Assy, Combination Meter Bulb
83101	83101-14040	Socket, Indicator Lamp
83110	83110-1E441	Speedometer Assy
83128	83128-14630	Knob, Trip Counter
83132	83132-1A250	Case, Combination Meter
83133	83133-1E370	Plate, Combination Meter, No.1
83133	83133-13070	Plate, Combination Meter, No.1
83138	83138-1A010	Glass, Speedometer
83242	83242-1E031	Tachometer Assy, Engine
83243	83243-1A231	Gage Assy, Fuel Receiver
83244	83244-1A651	Gage Assy, Water Temperature Receiver
83247	83247-1E801	Plate Sub-Assy, Combination Meter Circuit, No.1
83247	83247-13630	Plate, Meter Circuit
83910	83910-12400	Clock Assy
83910	83910-12450	Clock Assy
9009900909	90099-00909	New Genuine Part
9009900929	90099-00929	New Genuine Part
9009900939	90099-00939	New Genuine Part
9016750020	90167-50020	SCREW PAN TAPPING

OEM	Part name	Category
00234-00158	Bulb, Position Indicator Lamp	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83101-14030	Socket Sub-Assy, Combination Meter Bulb	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83101-14040	Socket, Indicator Lamp	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83101-20060	Socket Sub-Assy, Combination Meter Bulb	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83101-20080	Bulb, Combination Meter, No.1	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83109-12030	Bulb, Combination Meter, No.1	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83110-1E441	Speedometer Assy	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83128-14630	Knob, Trip Counter	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83132-1A250	Case, Combination Meter	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83133-13070	Plate, Combination Meter, No.1	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83133-1E370	Plate, Combination Meter, No.1	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83138-1A010	Glass, Speedometer	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83242-1E031	Tachometer Assy, Engine	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83243-1A231	Gage Assy, Fuel Receiver	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83244-1A651	Gage Assy, Water Temperature Receiver	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83247-13630	Plate, Meter Circuit	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83247-1E801	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83910-12400	Clock Assy	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
83910-12450	Clock Assy	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
90099-00909	New Genuine Part	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
90099-00929	New Genuine Part	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
90099-00939	New Genuine Part	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
90167-50020	SCREW PAN TAPPING	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
90981-11018	Bulb, Position Indicator Lamp	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
99132-12034	Bulb, Position Indicator Lamp	Meter ([09.1990 - ] W(TACHOMETER) (9009- ))
