Search › Model › AE95

AE95

Toyota COROLLA · 1987 · 4,917 parts · 183 categories

4,917 items

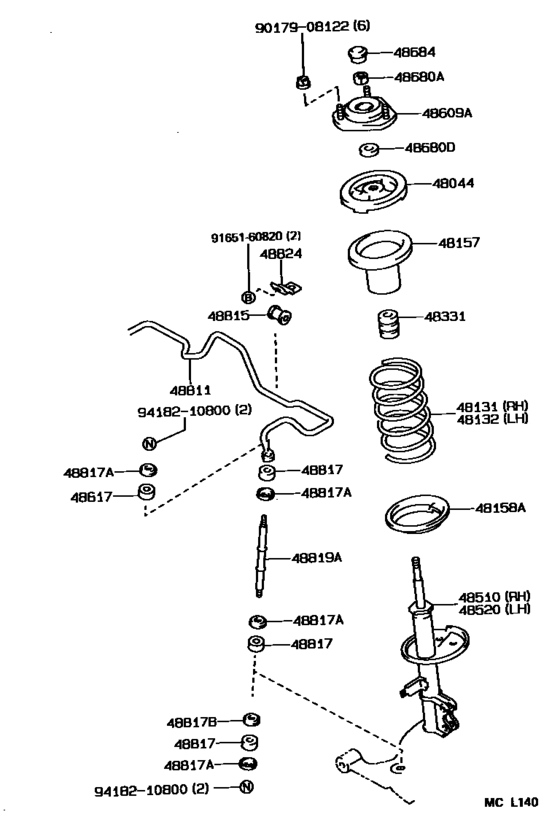

Front Spring & Shock Absorber ([09.1990 - ] (9009- )) 26

#	OEM	Part name
48044	48044-12090	Seat Sub- Assy, Front Spring, No.1
48131	48131-1H830	Spring, Front Coil, Lh
48132	48131-1H780	Spring, Front Coil, Rh
48132	48131-1H800	Spring, Front Coil, Lh
48157	48157-12060	Insulator, Front Coil Spring, Upper
48158	48158-12030	Insulator, Front Coil Spring, Lower
48331	48331-12130	Bumper, Front Spring, No.1
48510	48510-12651	Absorber Assy, Shock, Front Rh
48510	48510-12652	Absorber Assy, Shock, Front Rh
48520	48520-12521	Absorber Assy, Shock, Front Lh
48520	48520-12522	Absorber Assy, Shock, Front Lh
48609	48609-12192	Support Sub-Assy, Front Suspension
48680	94182-11400	Nut(For Idler Arm Support)
48680	90303-22049	Seal, Dust(For Front Suspension Support)
48684	48684-32010	Cover, Bearing Dust
48811	48811-12690	Bar, Stabilizer, Front
48815	48815-12180	Bush, Front Stabilizer Bar, No.1
48817	48817-30020	Rear stabilizer link cushion
48817	90948-02032	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02015	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48819	48819-20030	Bolt(For Front Stabilizer)
48824	48824-12090	Bracket, Stabilizer, Front
9017908122	90179-08122	Nut(For Rear Suspension Support)
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9418210800	94182-10800	Nut

OEM	Part name	Category
48044-12090	Seat Sub- Assy, Front Spring, No.1	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48131-1H780	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48131-1H800	Spring, Front Coil, Lh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48131-1H830	Spring, Front Coil, Lh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48157-12060	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48158-12030	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48331-12130	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48510-12651	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48510-12652	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48520-12521	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48520-12522	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48609-12192	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48684-32010	Cover, Bearing Dust	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48811-12690	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48815-12180	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48817-30020	Rear stabilizer link cushion	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48819-20030	Bolt(For Front Stabilizer)	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
48824-12090	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
90179-08122	Nut(For Rear Suspension Support)	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
90303-22049	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
90948-02015	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
90948-02032	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
91651-60820	Bolt, Radiator Side Support Plate	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
91651-B0820	Bolt, Radiator Side Support Plate	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
94182-10800	Nut	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))
94182-11400	Nut(For Idler Arm Support)	Front Spring & Shock Absorber ([09.1990 - ] (9009- ))

Source: Public OEM parts-catalog data
Variants: 2 / 69
Category: 183
Collected: 2026-08-02
