AE95

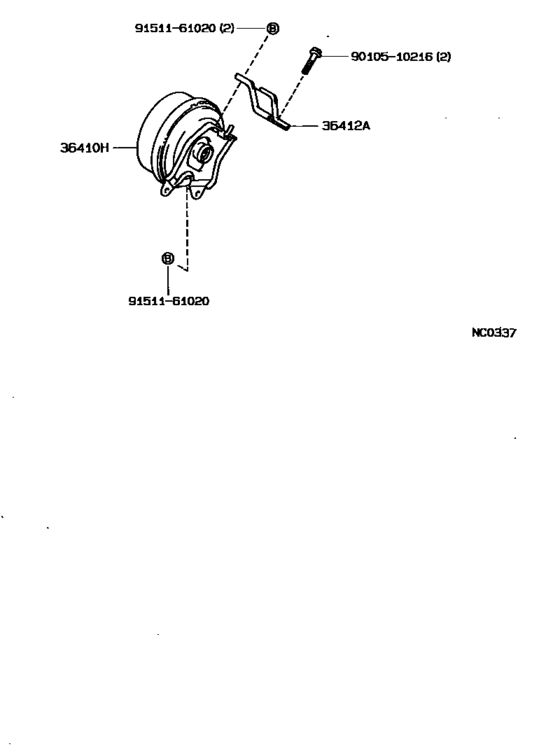

Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) 6
| # | OEM | Part name |
|---|---|---|
| 36410 | 36410-12010 | Actuator Assy, Transfer Vacuum |
| 36412 | 36412-12010 | Bracket, Transfer Vacuum Actuator |
| 9010510216 | 90105-10216 | Bolt (For Transfer Oil Receiver No.1) |
| 9010510216 | 91512-B1030 | Bolt (For Transfer Oil Receiver No.1) |
| 9151161020 | 91511-61020 | Bolt(For Front Transaxle Case Cover) |
| 9151161020 | 91512-B1020 | Bolt(For Front Transaxle Case Cover) |
| OEM | Part name | Category |
|---|---|---|
| 36410-12010 | Actuator Assy, Transfer Vacuum | Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) |
| 36412-12010 | Bracket, Transfer Vacuum Actuator | Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) |
| 90105-10216 | Bolt (For Transfer Oil Receiver No.1) | Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) |
| 91511-61020 | Bolt(For Front Transaxle Case Cover) | Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) |
| 91512-B1020 | Bolt(For Front Transaxle Case Cover) | Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) |
| 91512-B1030 | Bolt (For Transfer Oil Receiver No.1) | Diaphragm Cylinder & Transfer Vacuum Actuator ([09.1990 - ] E57F5 (9009- )5F) |
