AE95

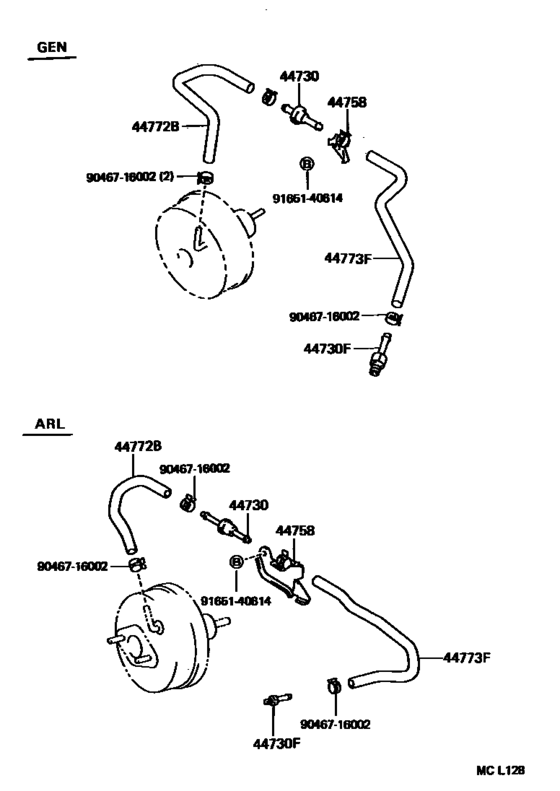

Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) 8
| # | OEM | Part name |
|---|---|---|
| 44730 | 44730-10010 | Valve Assy, Vacuum Check(For Brake) |
| 44730 | 90404-51237 | Union, No.3 |
| 44758 | 44758-12280 | Bracket, Vacuum Check Valve |
| 44772 | 44772-12400 | Hose, Check Valve To Brake Booster |
| 44773 | 44773-12450 | Hose, Union To Check Valve |
| 9046716002 | 90467-16002 | Clip(Vaccum Transmitting Hose No.1) |
| 9046716002 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) |
| 9165140614 | 91651-40614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 44730-10010 | Valve Assy, Vacuum Check(For Brake) | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 44758-12280 | Bracket, Vacuum Check Valve | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 44772-12400 | Hose, Check Valve To Brake Booster | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 44773-12450 | Hose, Union To Check Valve | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 90404-51237 | Union, No.3 | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 90467-16002 | Clip(Vaccum Transmitting Hose No.1) | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 91651-40614 | Bolt | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
| 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Brake Booster & Vacuum Tube ([09.1990 - ] (9009- )RHD) |
