Search › Model › AE92

AE92

Toyota COROLLA · 1987 · 4,095 parts · 177 categories

4,095 items

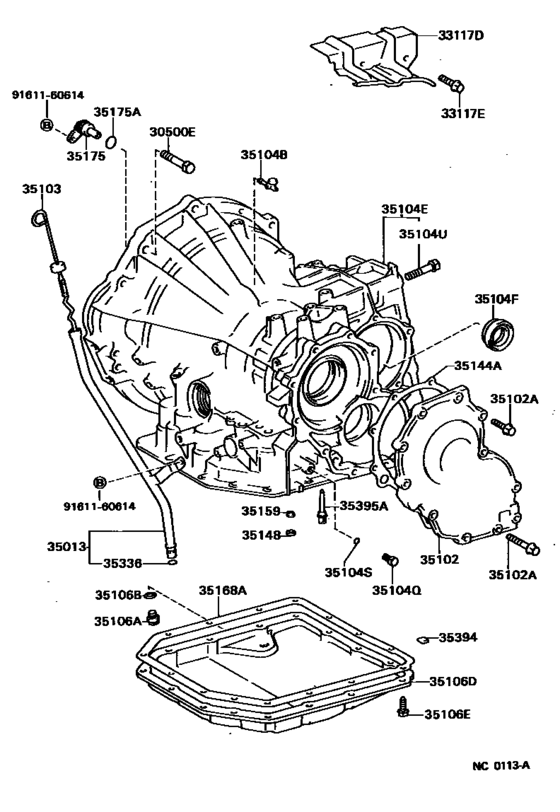

Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC) 39

#	OEM	Part name
30500	90105-10077	Bolt(For Transaxle Case Protector)
30500	90119-12168	Bolt(For Transaxle & Engine Setting)
30500	91611-61025	Bolt(For Transaxle & Engine Setting)
30500	91612-61025	Bolt (For Control Shaft Cover)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
33117	33117-12040	Protector, Transaxle Case
33117	90105-08040	Bolt(For Plate Bolt Lock)
33117	91641-H0820	Bolt
35013	35013-12220	Tube Sub-Assy, Transmission Oil Filler
35102	35102-12020	Cover Sub-Assy, Transaxle Rear
35102	90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)
35102	90105-08056	Bolt (For Overdrive Case & Transaxle Case Setting)
35103	35103-12150	Gage Sub-Assy, Transmission Oil Level
35104	90930-03089	Plug, Breather, No.1 (Atm)
35104	35104-12161	Case Sub-Assy, Automatic Transaxle
35104	35104-12162	Case Sub-Assy, Automatic Transaxle
35104	35104-12201	Case Sub-Assy, Automatic Transaxle
35104	90311-34012	Oil Seal
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90105-10008	Bolt, Hexagon(For Differential Bearing Cap Setting)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-12080	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35144	34112-32010	Gasket, Overdrive Case
35144	35144-12030	Gasket, Transaxle Rear Cover
35144	35144-12020	Gasket, Transaxle Rear Cover
35148	35148-16010	Gasket (For Automatic Transfer Case)
35159	35159-32011	Gasket, Brake Drum
35168	35168-32010	Gasket, Automatic Transaxle Oil Pan
35175	35175-32010	Cap, Transaxle Case, No.2
35175	90301-21002	Ring, O (For Transaxle Case Cap)
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-32011	Strainer, Governor Oil
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)

OEM	Part name	Category
33117-12040	Protector, Transaxle Case	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
34112-32010	Gasket, Overdrive Case	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35013-12220	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35102-12020	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35103-12150	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35104-12161	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35104-12162	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35104-12201	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35106-12080	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35144-12020	Gasket, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35144-12030	Gasket, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35159-32011	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35168-32010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35175-32010	Cap, Transaxle Case, No.2	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
35395-32011	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90105-08056	Bolt (For Overdrive Case & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90105-10008	Bolt, Hexagon(For Differential Bearing Cap Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90301-21002	Ring, O (For Transaxle Case Cap)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90311-34012	Oil Seal	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
90930-03089	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
91611-61025	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
91612-61025	Bolt (For Control Shaft Cover)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([05.1987 - ] A131L,A132L (8705- )3FC)

Source: Public OEM parts-catalog data
