AE92

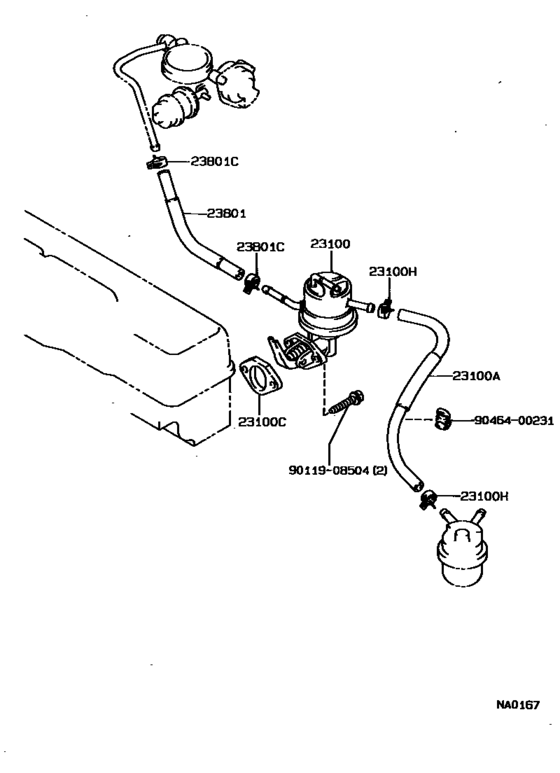

Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) 11
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-15081 | Pump Assy, Fuel |
| 23100 | 23100-15082 | Pump Assy, Fuel |
| 23100 | 95333-06040 | Hose |
| 23100 | 23915-16010 | Insulator, Fuel Pump |
| 23100 | 96132-30600 | Clip(For Actuator Hose) |
| 23100 | 96132-51100 | Clip (For Hose) |
| 23801 | 95333-06020 | Hose, Fuel(For Injection Pump To Fuel Pipe) |
| 23801 | 95337-06020 | Hose, Differential Pressure Control |
| 9011908504 | 90119-08504 | Bolt(For Clutch Release Cylinder Setting) |
| 9011908504 | 91611-60830 | Bolt(For Clutch Release Cylinder Setting) |
| 9046400231 | 90464-00231 | Clamp, Fuel Pipe(Hose), No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23100-15081 | Pump Assy, Fuel | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 23100-15082 | Pump Assy, Fuel | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 23915-16010 | Insulator, Fuel Pump | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 90119-08504 | Bolt(For Clutch Release Cylinder Setting) | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 90464-00231 | Clamp, Fuel Pipe(Hose), No.1 | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 91611-60830 | Bolt(For Clutch Release Cylinder Setting) | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 95333-06020 | Hose, Fuel(For Injection Pump To Fuel Pipe) | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 95333-06040 | Hose | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 95337-06020 | Hose, Differential Pressure Control | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 96132-30600 | Clip(For Actuator Hose) | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
| 96132-51100 | Clip (For Hose) | Fuel Pump & Pipe ([05.1987 - ] (8705- )4AF) |
