AE92

Toyota COROLLA · 1987 · 4,095 parts · 177 categories
AE92 ×

← Back to categories

4,095 items

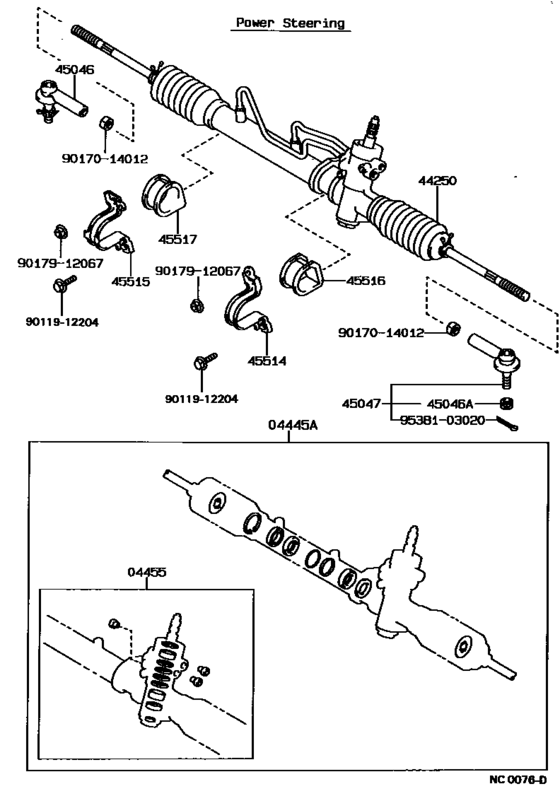

Front Steering Gear & Link ([05.1987 - ] (8705- )LHD) 80
#OEMPart name
4445 04445-12120 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-12041 Gasket Kit, Power Steering Control Valve Overhole
44201 44201-12170 Valve Sub-Assy, Power Steering Control
44201 44201-12171 Valve Sub-Assy, Power Steering Control
44201 90179-12098 Nut, Lock(For Power Steering Control Valve)
44201 94184-61200 Nut, Lock(For Power Steering Control Valve)
44201 90560-12030 Spacer(For Power Steering Control Valve)
44201 90562-33002 Ring(For Power Steering Control Valve)
44201 90369-19005 Bearing(For Power Steering Control Valve Upper)
44201 90363-12008 Bearing(For Power Steering Control Valve Lower)
44204 44204-12040 Rack Sub-Assy, Power Steering
44204 44204-12041 Rack Sub-Assy, Power Steering
44204 90301-33003 Ring(For Rack Steering Piston)
44204 90562-37001 Ring(For Rack Steering Piston)
44204 90562-37004 Ring(For Rack Steering Piston)
44206 90310-24007 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206 90310-24012 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206 90310-24008 Seal, Oil, No.2(For Power Steering Cylinder Tube)
44206 90560-24005 Spacer, No.1(For Power Steering Cylinder Tube)
44206 90560-25007 Spacer, No.2(For Power Steering Cylinder Tube)
44240 44240-12110 Housing Assy, Power Steering Rack
44240 45523-12080 Guide, Rack(For Steering Gear)
44240 44240-12113 Housing Assy, Power Steering Rack
44240 44277-12040 Seat, Rack Guide
44240 45524-12041 Cap, Steering Rack Guide Spring
44240 44240-12111 Housing Assy, Power Steering Rack
44240 44240-12112 Housing Assy, Power Steering Rack
44250 44250-12230 Gear Assy, Power Steering(For Rack & Pinion)
44250 44250-12232 Gear Assy, Power Steering(For Rack & Pinion)
44250 45517-12111 Grommet, Steering Rack Housing, No.2
44250 44250-12231 Gear Assy, Power Steering(For Rack & Pinion)
44253 90410-06002 Seat, Union(For Power Steering Control Valve)
44253 90311-19007 Seal, Oil(For Power Steering Control Valve)
44253 90310-23005 Seal, Oil, No.2(For Power Steering Rack Housing)
44253 90521-41003 Ring, Snap(For Power Steering Control Valve)
44253 90389-28001 Bush(For Power Steering Rack Housing)
44275 44275-12020 Stopper, Cylinder End
44275 44275-12080 Stopper, Cylinder End
44275 44275-12090 Stopper, Cylinder End
44275 90521-50002 Ring, Hole Snap(For Cylinder End Stopper)
44277 44277-12020 Seat, Rack Guide
44283 44283-12010 Cap, Power Steering Rack Housing
44418 44418-12140 Tube, Steering Right Turn Pressure
44419 44419-12140 Tube, Steering Left Turn Pressure
45046 45046-19175 End Sub-Assy, Tie Rod
45046 90171-12028 Nut, Castle(For Pitman Arm)
45222 45222-12090 Cover, Steering Gear Dust
45503 45503-19125 End Sub-Assy, Steering Rack
45503 45503-19135 End Sub-Assy, Steering Rack
45503 90214-14009 Washer, Claw(For Steering Rack End)
45514 45514-12070 Bracket, Steering Rack Housing, No.1
45514 45514-12081 Bracket, Steering Rack Housing, No.1
45515 45515-12150 Bracket, Steering Rack Housing, No.2
45515 45515-12161 Bracket, Steering Rack Housing, No.2
45516 45516-12050 Grommet, Steering Rack Housing, No.1
45516 45516-20010 Grommet, Steering Rack Housing, No.1
45517 45517-12110 Grommet, Steering Rack Housing, No.2
45517 45517-12120 Grommet, Steering Rack Housing, No.2
45523 45523-12020 Guide, Rack(For Power Steering)
45523 45523-12040 Guide, Rack(For Steering Gear)
45523 45523-12060 Guide, Rack(For Steering Gear)
45523 90501-26038 Spring(For Power Steering Rack Guide)
45523 90501-29016 Spring(For Steering Gear Rack Guide)
45524 45524-12010 Cap, Rack Guide Spring(For Power Steering)
45524 45524-16010 Cap(For Power Steering Pinion)
45524 90179-33003 Nut(For Power Steering Rack Guide Cap)
45524 90179-36002 Nut(For Power Steering Pinion Cap)
45535 45535-12011 Boot, Steering Rack, No.1
45535 45535-12040 Boot, Steering Rack No.1(For Power Steering)
45535 90461-10273 Clamp(For Steering Rack Boot)
45535 90949-01081 Clamp(For Power Steering Rack Boot)
45535 90949-01082 Clamp(For Power Steering Rack Boot)
45535 90467-18003 Clip Or Clamp(For Ventilation Hose)
45536 45536-12030 Boot, Steering Rack, No.2
9011912204 90119-12204 New Genuine Part
9011912204 90119-12137 New Genuine Part
9017014012 90170-14012 Nut, Rack End Lock
9017912067 90179-12067 New Genuine Part
9326963020 93269-63020 Screw(For Steering Rack Boot Clamp)
9538103020 95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin)
