Search › Model › AE92

AE92

Toyota COROLLA · 1987 · 4,095 parts · 177 categories

4,095 items

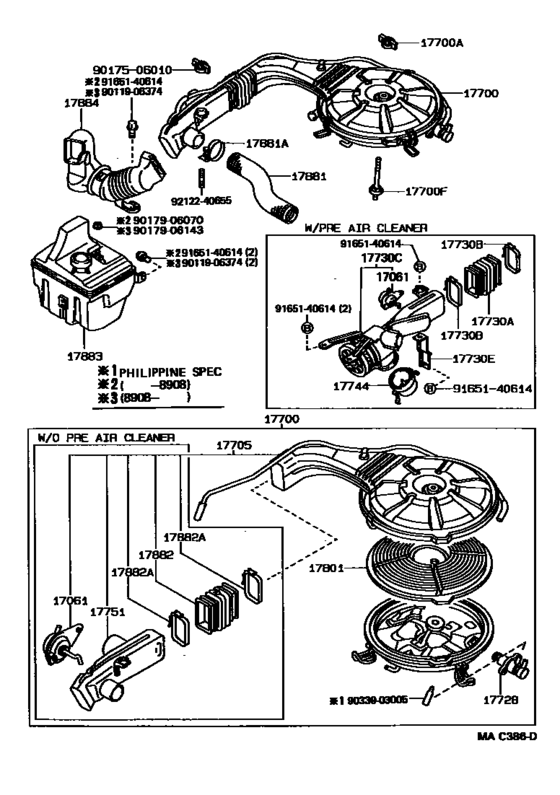

Air Cleaner ([05.1987 - ] (8705- )4AF) 30

#	OEM	Part name
17700	17700-16420	Cleaner Assy, Air
17700	17700-16840	Cleaner Assy, Air
17700	17700-16480	Cleaner Assy, Air
17700	17700-16860	Cleaner Assy, Air
17700	90175-06010	Nut, Wing(For Air Cleaner)
17700	90116-06018	Bolt, Stud(For Air Cleaner Setting)
17705	17705-16210	Cap Sub-Assy, Air Cleaner
17705	17705-16450	Cap Sub-Assy, Air Cleaner
17705	17705-16220	Cap Sub-Assy, Air Cleaner
17705	17705-16480	Cap Sub-Assy, Air Cleaner
17730	17881-16180	Hose, Precleaner - AIR CLEANER, NO.2
17730	17786-16010	Clamp, Hose(For Precleaner Hose) - NO.2)
17730	17736-16030	Case, Precleaner
17730	17736-16040	Case, Precleaner
17730	17741-16020	Bracket, Precleaner, No.1
17744	17744-16020	Cup, Precleaner
17751	17751-16010	Inlet, Air Cleaner, No.1
17801	17801-15060	Element Sub-Assy, Air Cleaner Filter
17882	17881-15140	Hose, Air Cleaner, No.2
17882	17786-15010	Clamp(For Air Cleaner Hose, No.2)
17883	17883-16031	Hose, Air Cleaner, No.3
17884	17880-16010	Hose, Air Cleaner, No.4
9011906374	90119-06374	BOLT
9011906374	91653-A0614	BOLT WWASHER
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906143	90179-06143	NUT
9033903005	90339-03005	Plug, No.1
9165140614	91651-40614	Bolt
9212240655	92122-40655	New Genuine Part

OEM	Part name	Category
17700-16420	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] (8705- )4AF)
17700-16480	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] (8705- )4AF)
17700-16840	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] (8705- )4AF)
17700-16860	Cleaner Assy, Air	Air Cleaner ([05.1987 - ] (8705- )4AF)
17705-16210	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17705-16220	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17705-16450	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17705-16480	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17736-16030	Case, Precleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17736-16040	Case, Precleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17741-16020	Bracket, Precleaner, No.1	Air Cleaner ([05.1987 - ] (8705- )4AF)
17744-16020	Cup, Precleaner	Air Cleaner ([05.1987 - ] (8705- )4AF)
17751-16010	Inlet, Air Cleaner, No.1	Air Cleaner ([05.1987 - ] (8705- )4AF)
17786-15010	Clamp(For Air Cleaner Hose, No.2)	Air Cleaner ([05.1987 - ] (8705- )4AF)
17786-16010	Clamp, Hose(For Precleaner Hose) - NO.2)	Air Cleaner ([05.1987 - ] (8705- )4AF)
17801-15060	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.1987 - ] (8705- )4AF)
17880-16010	Hose, Air Cleaner, No.4	Air Cleaner ([05.1987 - ] (8705- )4AF)
17881-15140	Hose, Air Cleaner, No.2	Air Cleaner ([05.1987 - ] (8705- )4AF)
17881-16180	Hose, Precleaner - AIR CLEANER, NO.2	Air Cleaner ([05.1987 - ] (8705- )4AF)
17883-16031	Hose, Air Cleaner, No.3	Air Cleaner ([05.1987 - ] (8705- )4AF)
90116-06018	Bolt, Stud(For Air Cleaner Setting)	Air Cleaner ([05.1987 - ] (8705- )4AF)
90119-06374	BOLT	Air Cleaner ([05.1987 - ] (8705- )4AF)
90175-06010	Nut, Wing(For Air Cleaner)	Air Cleaner ([05.1987 - ] (8705- )4AF)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Air Cleaner ([05.1987 - ] (8705- )4AF)
90179-06143	NUT	Air Cleaner ([05.1987 - ] (8705- )4AF)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Air Cleaner ([05.1987 - ] (8705- )4AF)
90339-03005	Plug, No.1	Air Cleaner ([05.1987 - ] (8705- )4AF)
91651-40614	Bolt	Air Cleaner ([05.1987 - ] (8705- )4AF)
91653-A0614	BOLT WWASHER	Air Cleaner ([05.1987 - ] (8705- )4AF)
92122-40655	New Genuine Part	Air Cleaner ([05.1987 - ] (8705- )4AF)
