AE91

Toyota COROLLA · 1987 · 4,330 parts · 188 categories

← Back to categories

4,330 items

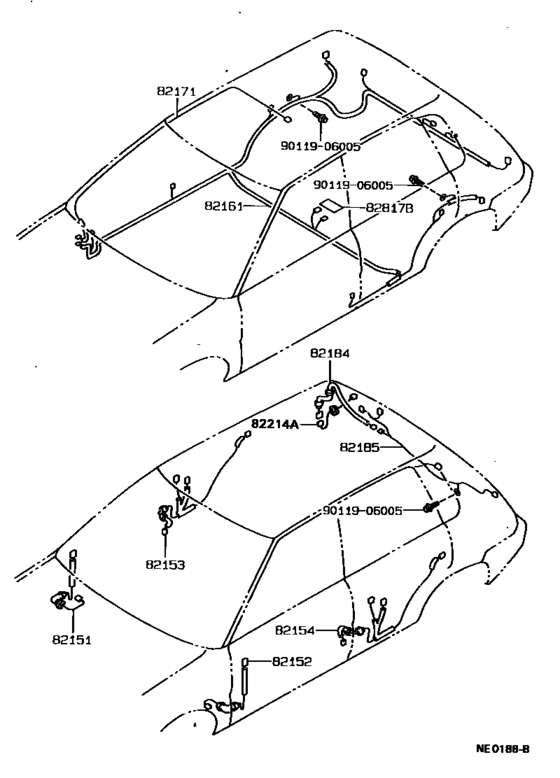

Wiring & Clamp ([05.1987 - ] (8705- )5D) 19

#	OEM	Part name
82151	82151-12260	Wire, Front Door, Rh
82151	82151-12600	Wire, Front Door, Rh
82152	82152-12400	Wire, Front Door, Lh
82152	82152-12510	Wire, Front Door, Lh
82153	82153-12150	Wire, Rear Door, No.1
82154	82154-12150	Wire, Rear Door, No.2
82161	82161-1E890	Wire, Floor
82161	82161-1H010	Wire, Floor
82161	82161-1H030	Wire, Floor
82161	82161-1H050	Wire, Floor
82161	82161-1H060	Wire, Floor
82171	82171-12320	Wire, Roof, No.1
82171	82171-12330	Wire, Roof, No.1
82184	82184-12320	Wire, Back Door, No.1
82184	82184-12420	Wire, Back Door, No.1
82185	82185-12330	Wire, Back Door, No.2
82214	82214-12160	Wire, Lamp
82817	82817-16100	Protector, Wiring Harness, No.1
9011906005	90119-06005	New Genuine Part

OEM	Part name	Category
82151-12260	Wire, Front Door, Rh	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82151-12600	Wire, Front Door, Rh	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82152-12400	Wire, Front Door, Lh	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82152-12510	Wire, Front Door, Lh	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82153-12150	Wire, Rear Door, No.1	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82154-12150	Wire, Rear Door, No.2	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82161-1E890	Wire, Floor	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82161-1H010	Wire, Floor	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82161-1H030	Wire, Floor	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82161-1H050	Wire, Floor	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82161-1H060	Wire, Floor	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82171-12320	Wire, Roof, No.1	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82171-12330	Wire, Roof, No.1	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82184-12320	Wire, Back Door, No.1	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82184-12420	Wire, Back Door, No.1	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82185-12330	Wire, Back Door, No.2	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82214-12160	Wire, Lamp	Wiring & Clamp ([05.1987 - ] (8705- )5D)
82817-16100	Protector, Wiring Harness, No.1	Wiring & Clamp ([05.1987 - ] (8705- )5D)
90119-06005	New Genuine Part	Wiring & Clamp ([05.1987 - ] (8705- )5D)

Source: Public OEM parts-catalog data
Variants: 2 / 60
Category: 188
Collected: 2026-08-02
