AE91

Toyota COROLLA · 1987 · 4,330 parts · 188 categories

4,330 items

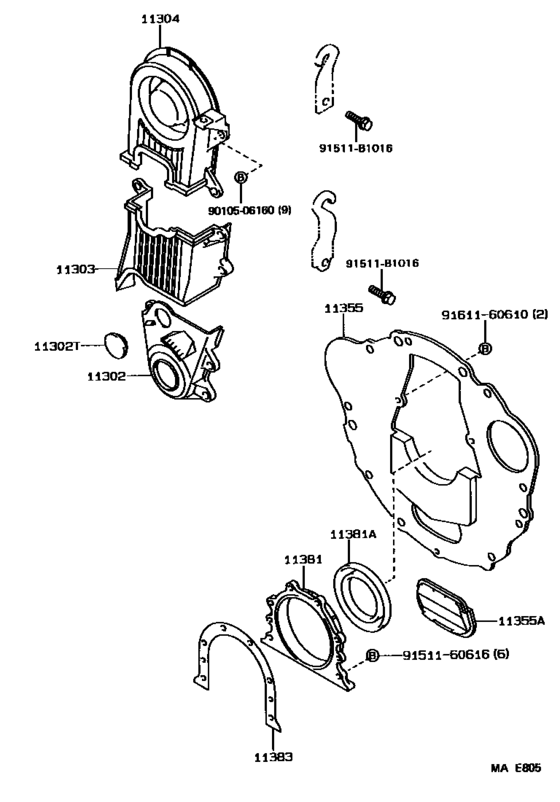

Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#) 20

#	OEM	Part name
11302	11302-15041	Cover Sub-Assy, Timing Chain Or Belt
11302	90950-01391	Plug, Hole
11303	11303-15040	Cover Sub-Assy, Crankshaft Gear Or Pulley
11304	11304-15020	Cover, Timing Chain Or Belt, No.2
11355	11355-15080	Plate, Rear End
11355	90950-01264	Plug, Hole(For Rear End Plate)
11381	11381-15010	Retainer, Engine Rear Oil Seal
11381	90311-70004	Seal, Engine Rear Oil
11381	90311-70007	Seal, Engine Rear Oil
11383	11383-15010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-16010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-15011	Gasket, Engine Rear Oil Seal Retainer
91511	91511-B1016	New Genuine Part
91511	90119-10684	New Genuine Part
9010506160	90105-06160	Bolt
9010506160	91511-G0620	BOLT, FLANGE
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)

OEM	Part name	Category
11302-15041	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11303-15040	Cover Sub-Assy, Crankshaft Gear Or Pulley	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11304-15020	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11355-15080	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11381-15010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11383-15010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11383-15011	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
11383-16010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
90105-06160	Bolt	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
90119-10684	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
90311-70004	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
90311-70007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
90950-01264	Plug, Hole(For Rear End Plate)	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
90950-01391	Plug, Hole	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
91511-60616	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
91511-B0616	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
91511-B1016	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
91511-G0620	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([05.1987 - ] (8705- )5AF#)
