AE91

Toyota COROLLA · 1987 · 4,330 parts · 188 categories

4,330 items

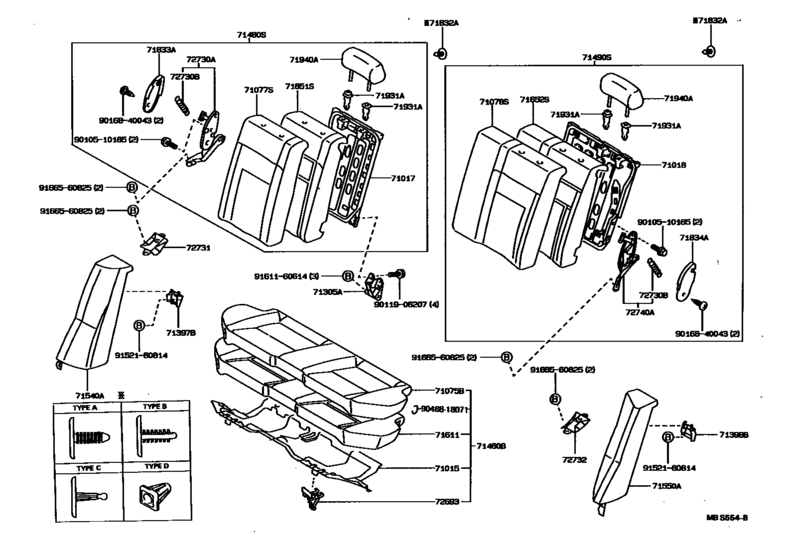

Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS) 40

#	OEM	Part name
71015	71015-12300	Frame Sub-Assy, Rear Seat Cushion
71017	71017-12280	Frame Sub-Assy, Rear Seat Back, Rh
71018	71018-12070	Frame Sub-Assy, Rear Seat Back, Lh
71075	71075-1E091-03	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-1H651-03	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-1A361-03	Cover, Rear Seat Back, Lh(For Separate Type)
71305	71305-12070	Hinge Sub-Assy, Rear Seat Back, Center
71397	71397-12020	Holder, Rear Seat Back, Rh
71398	71398-12020	Holder, Rear Seat Back, Lh
71460	71460-1E121-03	Cushion Assy, Rear Seat (For Bench Type)
71480	71480-1H751-03	Back Assy, Rear Seat, Rh (For Separate Type)
71490	71490-1A431-03	Back Assy, Rear Seat, Lh (For Separate Type)
71540	71540-12171-03	Back Assy, Rear Side Seat, Rh
71550	71550-12171-03	Back Assy, Rear Side Seat, Lh
71611	71611-12560	Pad, Rear Seat Cushion
71651	71651-12620	Pad, Rear Seat Back, Rh(For Separate Type)
71652	71652-12430	Pad, Rear Seat Back, Lh(For Separate Type)
71833	71833-12030-03	Cover, Rear Seat Reclining, No.1 Rh
71834	71834-12030-03	Cover, Rear Seat Reclining, No.1 Lh
71931	71930-10060-33	Support, Front Seat Headrest
71931	71931-10010-33	Support, Front Seat Headrest
71940	71940-12071-03	Headrest Assy, Rear Seat
72693	72693-12050	Hook, Rear Seat Cushion Lock
72730	72730-12040-03	Adjuster Assy, Rear Seat Reclining, Rh
72730	90506-14116	Spring, Tension(For Rear Seat Reclining Adjuster)
72731	72731-12020	Bracket, Rear Seat Reclining, Rh
72732	72732-12020	Bracket, Rear Seat Reclining, Lh
72740	72740-12040-03	Adjuster Assy, Rear Seat Reclining, Lh
9010510165	90105-10165	New Genuine Part
9011906207	90119-06207	Bolt(For Transaxle Case Receiver)
9011906207	91611-B0616	Bolt(For Transaxle Case Receiver)
9016840043	90168-40043	SCREW
9046818071	90468-18071	Clip (For Front Seat Cushion Cover)
9046818071	90468-16019	Clip (For Rear Seat Back)
9152160814	91521-60814	New Genuine Part
9152160814	91511-B0814	BOLT
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9166560825	91665-60825	New Genuine Part
9166560825	91661-60825	New Genuine Part

OEM	Part name	Category
71015-12300	Frame Sub-Assy, Rear Seat Cushion	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71017-12280	Frame Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71018-12070	Frame Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71075-1E091-03	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71077-1H651-03	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71078-1A361-03	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71305-12070	Hinge Sub-Assy, Rear Seat Back, Center	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71397-12020	Holder, Rear Seat Back, Rh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71398-12020	Holder, Rear Seat Back, Lh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71460-1E121-03	Cushion Assy, Rear Seat (For Bench Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71480-1H751-03	Back Assy, Rear Seat, Rh (For Separate Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71490-1A431-03	Back Assy, Rear Seat, Lh (For Separate Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71540-12171-03	Back Assy, Rear Side Seat, Rh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71550-12171-03	Back Assy, Rear Side Seat, Lh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71611-12560	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71651-12620	Pad, Rear Seat Back, Rh(For Separate Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71652-12430	Pad, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71833-12030-03	Cover, Rear Seat Reclining, No.1 Rh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71834-12030-03	Cover, Rear Seat Reclining, No.1 Lh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71930-10060-33	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71931-10010-33	Support, Front Seat Headrest	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
71940-12071-03	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
72693-12050	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
72730-12040-03	Adjuster Assy, Rear Seat Reclining, Rh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
72731-12020	Bracket, Rear Seat Reclining, Rh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
72732-12020	Bracket, Rear Seat Reclining, Lh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
72740-12040-03	Adjuster Assy, Rear Seat Reclining, Lh	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
90105-10165	New Genuine Part	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
90119-06207	Bolt(For Transaxle Case Receiver)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
90168-40043	SCREW	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
90468-16019	Clip (For Rear Seat Back)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
90468-18071	Clip (For Front Seat Cushion Cover)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
90506-14116	Spring, Tension(For Rear Seat Reclining Adjuster)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91511-B0814	BOLT	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91521-60814	New Genuine Part	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91611-B0616	Bolt(For Transaxle Case Receiver)	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91661-60825	New Genuine Part	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
91665-60825	New Genuine Part	Rear Seat & Seat Track ([05.1987 - ] (8705- )FXG,FXGT,FXZI,FXZS)
