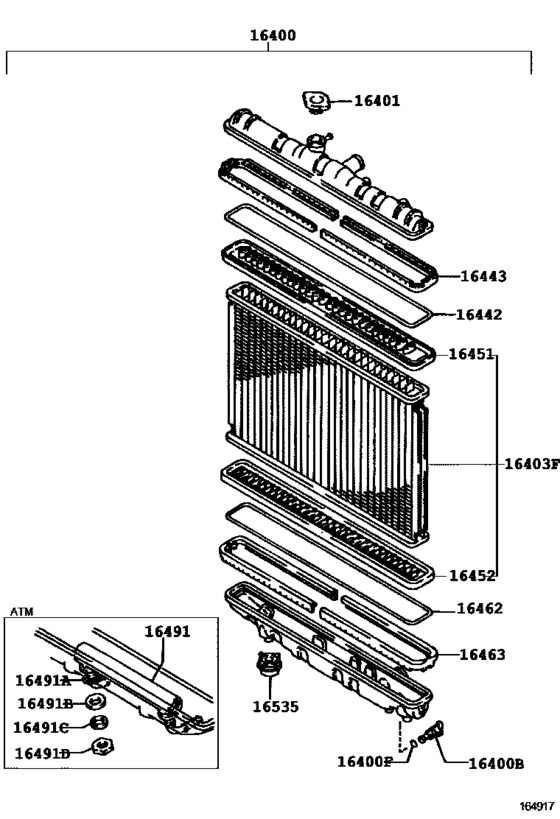

| 16400-15380 |
Radiator Assy |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16401-15210 |
Cap Sub-Assy(For Water Outlet) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16401-63010 |
Cap Sub-Assy, |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16403-15390 |
Core Sub-Assy, Radiator |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16403-74180 |
Core Sub-Assy, Radiator |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16417-15210 |
Plug, Radiator Drain Cock |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16418-24200 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16442-63030 |
Ring, O(For Radiator Upper Tank) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16442-70080 |
Ring, O(For Radiator Upper Tank) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16443-15321 |
Plate, Radiator Tank, Lock, Upper |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16443-15370 |
Plate, Radiator Tank, Lock, Upper |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16451-63030 |
Plate, Radiator Core, Upper |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16451-70080 |
Plate, Radiator Core, Upper |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16452-15370 |
Plate, Radiator Core, Lower |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16452-63030 |
Plate, Radiator Core, Lower |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16462-15370 |
Ring, O(For Radiator Lower Tank) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16462-63030 |
Ring, O(For Radiator Upper Tank) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16463-15320 |
Plate, Radiator Tank, Lock, Upper |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16463-15370 |
Plate, Radiator Tank, Lock, Lower |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16491-15390 |
Cooler, Oil(For Atm) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16491-16240 |
Cooler, Oil(For Atm) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16491-63040 |
Cooler, Oil(For Atm) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16492-15390 |
Ring, O(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16492-15660 |
Ring, O(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16492-35080 |
Ring, O(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16492-62060 |
Ring, O(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16493-15130 |
Washer, Plate(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16493-15390 |
Washer, Plate(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16494-15130 |
Washer, Spring(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16494-15390 |
Washer, Spring(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16496-15130 |
Nut(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16496-15390 |
Nut(For Atm Oil Cooler) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 16535-15020 |
Support, Radiator, Lower |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 23322-54010 |
Plug,air(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
| 96711-19007 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([05.1987 - ] (8705- )4AGE,4AF#,5AF#) |
