Search › Model › AE91

AE91

Toyota COROLLA · 1987 · 4,330 parts · 188 categories

4,330 items

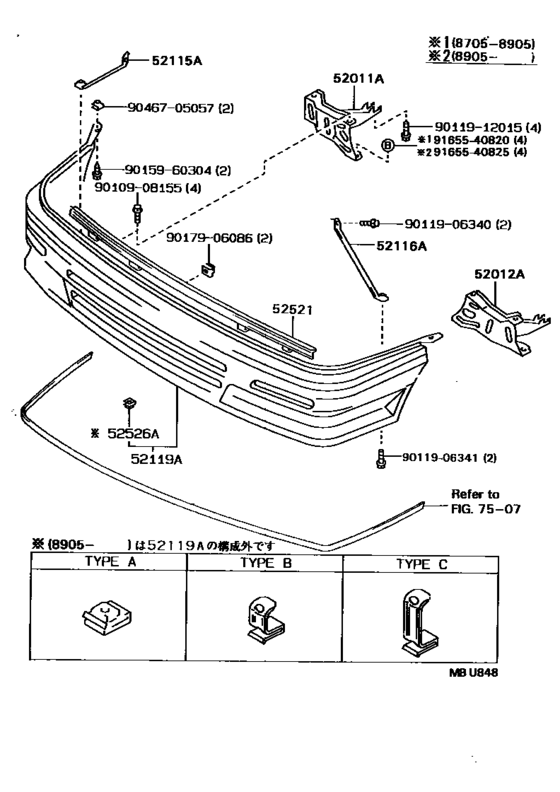

Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D) 23

#	OEM	Part name
52011	52011-12440	Arm Sub-Assy, Front Bumper, Rh
52012	52012-12450	Arm Sub-Assy, Front Bumper, Lh
52115	52115-12310	Support, Front Bumper Side, Rh
52116	52116-12250	Support, Front Bumper Side, Lh
52119	52119-1A650-01	Cover, Front Bumper
52119	52119-1A914	Cover, Front Bumper
52119	52119-1A650-02	Cover, Front Bumper
52119	52119-1A650-08	Cover, Front Bumper
52119	52119-1A740-07	Cover, Front Bumper
52521	52521-12140	Retainer, Front Bumper, Upper Center
52526	52565-16020	Retainer(For Timing Belt Cover)
9010908155	90109-08155	New Genuine Part
9011906340	90119-06340	BOLT
9011906341	90119-06341	BOLT
9011912015	90119-12015	New Genuine Part
9011912015	90119-12297	New Genuine Part
9015960304	90159-60304	SCREW
9017906086	90179-06086	NUT
9046705057	90467-05057	New Genuine Part
9165540820	91655-40820	New Genuine Part
9165540820	91653-40820	BOLT, W/WASHER
9165540825	91655-40825	New Genuine Part
9165540825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)

OEM	Part name	Category
52011-12440	Arm Sub-Assy, Front Bumper, Rh	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52012-12450	Arm Sub-Assy, Front Bumper, Lh	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52115-12310	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52116-12250	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52119-1A650-01	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52119-1A650-02	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52119-1A650-08	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52119-1A740-07	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52119-1A914	Cover, Front Bumper	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52521-12140	Retainer, Front Bumper, Upper Center	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
52565-16020	Retainer(For Timing Belt Cover)	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90109-08155	New Genuine Part	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90119-06340	BOLT	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90119-06341	BOLT	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90119-12015	New Genuine Part	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90119-12297	New Genuine Part	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90159-60304	SCREW	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90179-06086	NUT	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
90467-05057	New Genuine Part	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
91653-40820	BOLT, W/WASHER	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
91655-40820	New Genuine Part	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)
91655-40825	New Genuine Part	Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D)

Source: Public OEM parts-catalog data
Variants: 2 / 60
Category: 188
Collected: 2026-08-02
