AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories
AE86 ×

← Back to categories

4,358 items

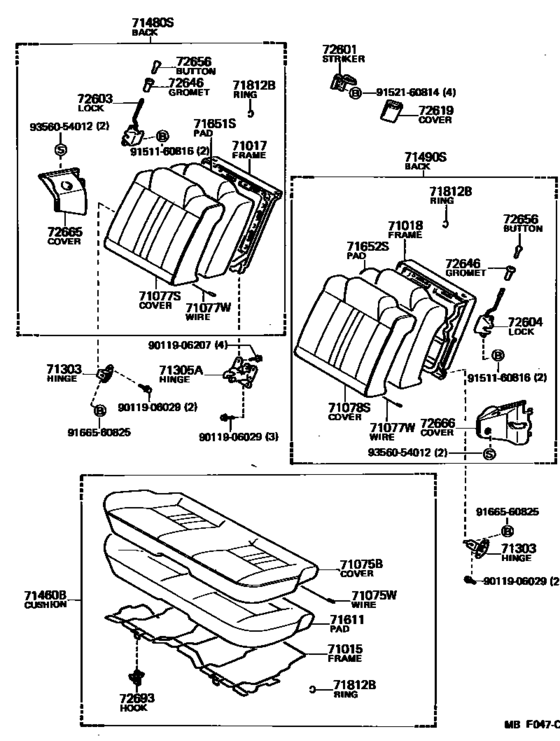

Rear Seat & Seat Track ([05.1985 - ] (8305-8505)APX,GTV,SE,SR ; (8505- )APX,GTV,SR) 63
#OEMPart name
71015 71015-12240 Frame Sub-Assy, Rear Seat Cushion
71015 71015-12241 Frame Sub-Assy, Rear Seat Cushion
71017 71202-12080 Frame Sub-Assy, Rear Seat Back, Rh
71018 71203-12060 Frame Sub-Assy, Rear Seat Back, Lh
71075 71065-1A170-02 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A170-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A730-01 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A721-01 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A731-01 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-1A720-01 Cover, Rear Seat Cushion (For Bench Type)
71075 90580-20009 Wire, Rear Seat Cushion Cover
71075 90580-20107 Wire, Front Seat Cushion Cover
71075 90580-20133 Wire, Front Seat Cushion Cover
71077 71077-1E470-02 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1E470-04 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1H340-03 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1H310-03 Cover, Rear Seat Back, Rh (For Separate Type)
71077 90580-20032 Wire, Front Seat Back Cover
71077 90580-29005 Wire, Front Seat Back Cover
71077 90580-29013 Wire, Rear Seat Cushion Cover
71078 71078-12680-02 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-12680-04 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-1A260-03 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-1A230-03 Cover, Rear Seat Back, Lh(For Separate Type)
71303 71303-12040 Hinge Sub-Assy, Rear Seat Back
71305 71305-12050 Hinge Sub-Assy, Rear Seat Back, Center
71460 71460-1A820-02 Cushion Assy, Rear Seat (For Bench Type)
71460 71460-1A820-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A730-01 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-1A731-01 Cushion Assy, Rear Seat (For Bench Type)
71480 71480-1E500-02 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-1E500-04 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-1H420-03 Back Assy, Rear Seat, Rh (For Separate Type)
71490 71490-12690-02 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-12690-04 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-1A320-03 Back Assy, Rear Seat, Lh (For Separate Type)
71611 71611-12410 Pad, Rear Seat Cushion
71651 71651-12410 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-12310 Pad, Rear Seat Back, Lh(For Separate Type)
71812 90467-18071 Clip(For Rear Seat Cushion Cover)
72601 72601-12070 Striker Sub-Assy, Rear Seat Lock
72603 72630-12080 Lock Sub-Assy, Rear Seat Back, Rh
72604 72640-12070 Lock Sub-Assy, Rear Seat Back, Lh
72619 72615-12030-01 Cover, Rear Seat Back Lock Striker
72646 72646-12010-01 Grommet, Rear Seat Back Stop Button
72646 72646-12010-02 Grommet, Rear Seat Back Stop Button
72646 72646-12010-04 Grommet, Rear Seat Back Stop Button
72656 72661-12010-01 Button, Rear Seat Back Stop Release
72656 72661-12010-C0 Button, Rear Seat Back Lock Release
72656 72661-12010-02 Button, Rear Seat Back Stop Release
72656 72661-12010-04 Button, Rear Seat Back Stop Release
72693 72693-12010 Hook, Rear Seat Cushion Lock
9011906029 90119-06029 New Genuine Part
9011906029 91651-G0616 BOLT WWASHER
9011906207 90119-06207 Bolt(For Transaxle Case Receiver)
9011906207 91611-B0616 Bolt(For Transaxle Case Receiver)
9151160816 91511-60816 BOLT
9151160816 91511-B0816 BOLT
9152160814 91521-60814 New Genuine Part
9152160814 91511-B0814 BOLT
9166560825 91665-60825 New Genuine Part
9166560825 91661-60825 New Genuine Part
9356054012 93560-54012 Screw
