AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories

4,358 items

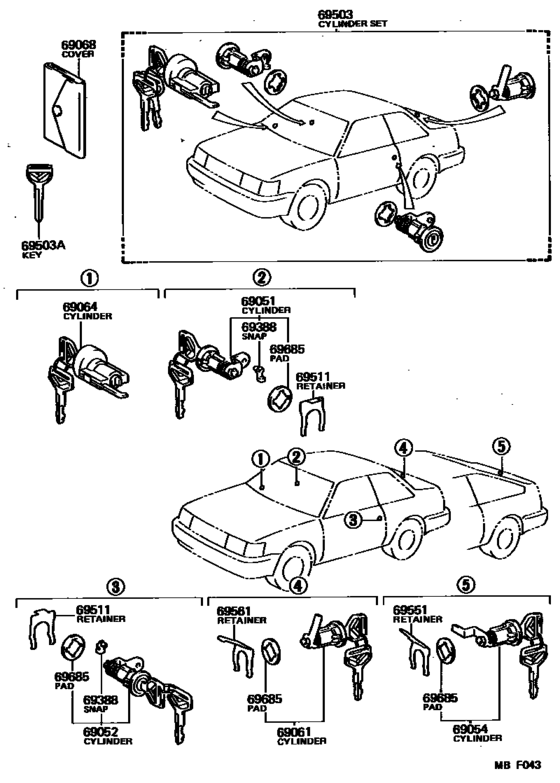

Lock Cylinder Set ([05.1983 - ] (8305- )) 20

#	OEM	Part name
69051	69051-12140	Cylinder & Key Set, Door Lock, Rh
69051	69051-12190	Cylinder & Key Set, Door Lock, Rh
69052	69052-12140	Cylinder & Key Set, Door Lock, Lh
69052	69052-12190	Cylinder & Key Set, Door Lock, Lh
69061	69055-12180	Cylinder & Key Set, Luggage Lock
69064	69057-12120	Cylinder & Key Set, Ignition Switch Lock
69064	69057-32121	Cylinder & Key Set, Ignition Switch Lock
69064	69057-16040	Cylinder & Key Set, Ignition Switch Lock
69064	69057-16061	Cylinder & Key Set, Ignition Switch Lock
69068	69555-20010	Cover Sub-Assy, Key
69388	69759-20080	Snap, Door Lock Control Link
69388	69759-20090	Snap(For Rear Door Lock)
69503	69005-12460	Cylinder Set, Lock
69503	69005-12400	Cylinder Set, Lock
69503	69005-1A090	Cylinder Set, Lock
69503	90999-00085	Key, Blank
69511	69511-32010	Retainer, Front Door Lock Cylinder
69561	69561-12140	Retainer, Luggage Compartment Or Back Door Lock Cylinder
69685	69513-32010	Pad, Lock Cylinder
69685	69563-32010	Pad, Luggage Compartment Door Lock Cylinder

OEM	Part name	Category
69005-12400	Cylinder Set, Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69005-12460	Cylinder Set, Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69005-1A090	Cylinder Set, Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69051-12140	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([05.1983 - ] (8305- ))
69051-12190	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([05.1983 - ] (8305- ))
69052-12140	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([05.1983 - ] (8305- ))
69052-12190	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([05.1983 - ] (8305- ))
69055-12180	Cylinder & Key Set, Luggage Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69057-12120	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69057-16040	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69057-16061	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69057-32121	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.1983 - ] (8305- ))
69511-32010	Retainer, Front Door Lock Cylinder	Lock Cylinder Set ([05.1983 - ] (8305- ))
69513-32010	Pad, Lock Cylinder	Lock Cylinder Set ([05.1983 - ] (8305- ))
69555-20010	Cover Sub-Assy, Key	Lock Cylinder Set ([05.1983 - ] (8305- ))
69561-12140	Retainer, Luggage Compartment Or Back Door Lock Cylinder	Lock Cylinder Set ([05.1983 - ] (8305- ))
69563-32010	Pad, Luggage Compartment Door Lock Cylinder	Lock Cylinder Set ([05.1983 - ] (8305- ))
69759-20080	Snap, Door Lock Control Link	Lock Cylinder Set ([05.1983 - ] (8305- ))
69759-20090	Snap(For Rear Door Lock)	Lock Cylinder Set ([05.1983 - ] (8305- ))
90999-00085	Key, Blank	Lock Cylinder Set ([05.1983 - ] (8305- ))
