Search › Model › AE86

AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories

4,358 items

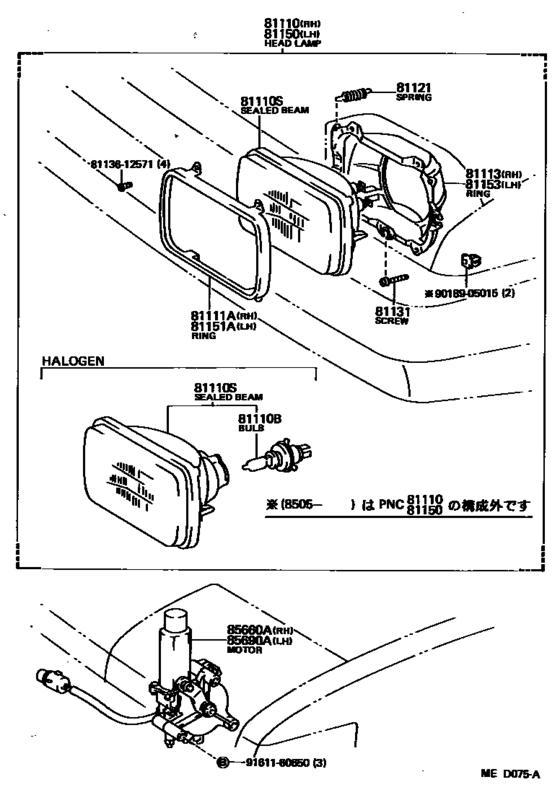

Headlamp ([05.1983 - ] (8305- )) 31

#	OEM	Part name
81110	81110-1A281	Headlamp Assy, Rh
81110	81110-1A530	Headlamp Assy, Rh
81110	81110-80325	Headlamp Assy, Rh
81110	90981-13015	Bulb(For Headlamp, No.1)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90981-13016	Bulb(For Headlamp, No.1)
81110	90981-13H01	Bulb(For Headlamp, No.1)
81110	90981-04010	Sealed Beam Unit, No.1
81110	90981-04030	Sealed Beam Unit, No.1
81110	90981-04032	Sealed Beam Unit, No.1
81110	81110-1A271	Headlamp Assy, Rh
81110	81110-80324	Headlamp Assy, Rh
81110	90981-04001	Sealed Beam Unit, No.1
81110	90981-04H21	Sealed Beam Unit (2 pcs set) Halogen
81110	90981-04H22	SEALED BEAM UNIT, H4 (2 pcs set)
81110	90981-04029	Sealed Beam Unit, No.1
81111	81111-16020	Ring, Sealed Beam Retaining
81113	81153-14670	Ring, Sealed Beam Mounting, No.1 Rh
81121	81121-14670	Spring, Headlamp Tension
81131	81119-1A270	Screw, Headlamp Adjusting
81150	81150-1A170	Headlamp Assy, Lh
81150	81150-1A211	Headlamp Assy, Lh
81150	81150-80322	Headlamp Assy, Lh
81150	81150-12891	Headlamp Assy, Lh
81150	81150-80321	Headlamp Assy, Lh
81153	81113-14670	Ring, Sealed Beam Mounting, No.1 Rh
85660	85660-12010	Motor Assy, Light Retractor, Rh
85690	85690-12010	Motor Assy, Light Retractor, Lh
8113612571	81136-12571	Screw
9018905015	90189-05015	Nut, Headlamp Self Locking
9161160650	91611-60650	BOLTWWASHER

OEM	Part name	Category
81110-1A271	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- ))
81110-1A281	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- ))
81110-1A530	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- ))
81110-80324	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- ))
81110-80325	Headlamp Assy, Rh	Headlamp ([05.1983 - ] (8305- ))
81111-16020	Ring, Sealed Beam Retaining	Headlamp ([05.1983 - ] (8305- ))
81113-14670	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([05.1983 - ] (8305- ))
81119-1A270	Screw, Headlamp Adjusting	Headlamp ([05.1983 - ] (8305- ))
81121-14670	Spring, Headlamp Tension	Headlamp ([05.1983 - ] (8305- ))
81136-12571	Screw	Headlamp ([05.1983 - ] (8305- ))
81150-12891	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- ))
81150-1A170	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- ))
81150-1A211	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- ))
81150-80321	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- ))
81150-80322	Headlamp Assy, Lh	Headlamp ([05.1983 - ] (8305- ))
81153-14670	Ring, Sealed Beam Mounting, No.1 Rh	Headlamp ([05.1983 - ] (8305- ))
85660-12010	Motor Assy, Light Retractor, Rh	Headlamp ([05.1983 - ] (8305- ))
85690-12010	Motor Assy, Light Retractor, Lh	Headlamp ([05.1983 - ] (8305- ))
90189-05015	Nut, Headlamp Self Locking	Headlamp ([05.1983 - ] (8305- ))
90981-04001	Sealed Beam Unit, No.1	Headlamp ([05.1983 - ] (8305- ))
90981-04010	Sealed Beam Unit, No.1	Headlamp ([05.1983 - ] (8305- ))
90981-04029	Sealed Beam Unit, No.1	Headlamp ([05.1983 - ] (8305- ))
90981-04030	Sealed Beam Unit, No.1	Headlamp ([05.1983 - ] (8305- ))
90981-04032	Sealed Beam Unit, No.1	Headlamp ([05.1983 - ] (8305- ))
90981-04H21	Sealed Beam Unit (2 pcs set) Halogen	Headlamp ([05.1983 - ] (8305- ))
90981-04H22	SEALED BEAM UNIT, H4 (2 pcs set)	Headlamp ([05.1983 - ] (8305- ))
90981-13015	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- ))
90981-13016	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- ))
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([05.1983 - ] (8305- ))
90981-13H01	Bulb(For Headlamp, No.1)	Headlamp ([05.1983 - ] (8305- ))
91611-60650	BOLTWWASHER	Headlamp ([05.1983 - ] (8305- ))

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 151
Collected: 2026-08-02
