AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories
AE86 ×

← Back to categories

4,358 items

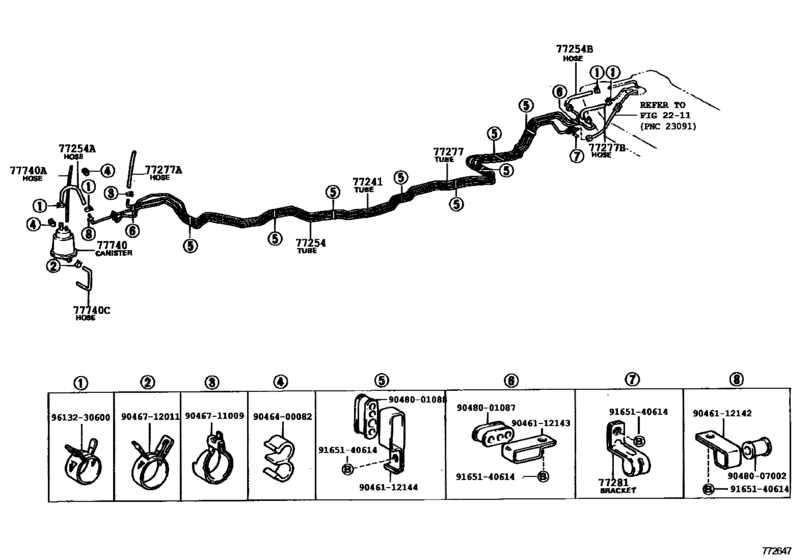

Fuel Tank & Tube ([05.1983 - ] (8305- )AE86) 28
#OEMPart name
77241 77205-12120 Tube, Fuel Main, No.1
77254 77019-12100 Tube, Fuel Emission, No.1
77254 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77254 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95332-06030 Hose(For Carburetor)
77254 95333-06030 Hose, Fuel
77254 95333-06022 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
77277 77255-12160 Tube, Fuel Return, No.1
77277 90447-12044 Hose, Fuel, No.1(For Return Tube, No.1)
77281 77281-12020 Bracket, Fuel Main Tube, No.1
77740 77704-12270 Canister Assy, Charcoal
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 77754-12030 Hose, Fuel, No.3(For Charcoal Canister)
9046112142 90461-12142 New Genuine Part
9046112143 90461-12143 New Genuine Part
9046112144 90461-12144 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712011 90467-12011 Clip(For Actuator Hose)
9046712011 96132-51100 Clip (For Hose)
9048001087 90480-01087 New Genuine Part
9048001088 90480-01088 New Genuine Part
9048007002 90480-07002 New Genuine Part
9165140614 91651-40614 Bolt
9613230600 96132-30600 Clip(For Actuator Hose)
Source
Public OEM parts-catalog data
Variants
2 / 7
Category
151
Collected
2026-08-02
