Search › Model › AE86

AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories

4,358 items

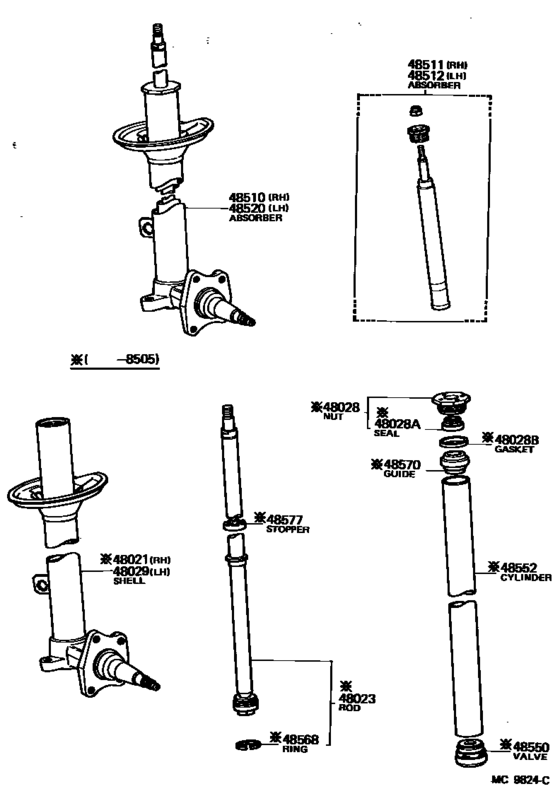

Front Spring & Shock Absorber ([05.1983 - ] (8305- )) 57

#	OEM	Part name
48021	48021-12170	Shell Sub-Assy, W/steering Knuckle, Rh
48023	48023-12240	Rod Sub-Assy, Shock Absorber Piston (For Front)
48028	48028-14011	Nut Sub-Assy, Shock Absorber Ring
48028	48028-14012	Nut Sub-Assy, Shock Absorber Ring
48028	90316-22001	Seal, Oil(For Shock Absorber Ring Nut)
48028	90430-43206	Gasket(For Shock Absorber Ring Nut)
48029	48029-12050	Shell Sub-Assy, W/steering Knuckle, Lh
48131	48131-1A390	Spring, Front Coil, Rh
48131	48131-1A410	Spring, Front Coil, Rh - FRONT COIL, LH
48132	48131-1A370	Spring, Front Coil, Rh
48157	48157-12030	Insulator, Front Coil Spring, Upper
48331	48331-12080	Bumper, Front Spring, No.1
48471	48045-12050	Seat, Front Spring, Upper
48510	48510-12270	Absorber Assy, Shock, Front Rh
48510	48510-12281	Absorber Assy, Shock, Front Rh
48510	48510-12490	Absorber Assy, Shock, Front Rh
48510	48510-12491	Absorber Assy, Shock, Front Rh
48511	48511-12230	Absorber, Shock Front, Rh(For Cartridge Type)
48511	48511-19135	Absorber, Shock Front, Rh(For Cartridge Type)
48520	48520-12140	Absorber Assy, Shock, Front Lh
48520	48520-12151	Absorber Assy, Shock, Front Lh
48520	48520-12360	Absorber Assy, Shock, Front Lh
48520	48520-12361	Absorber Assy, Shock, Front Lh
48550	48550-12230	Valve Assy, Shock Absorber Base
48552	48552-12030	Cylinder, Shock Absorber(For Front)
48568	48568-22021	Ring, Shock Absorber Piston
48570	48022-14010	Guide Sub-Assy, Shock Absorber Rod
48570	48022-22040	Guide Sub-Assy, Shock Absorber Rod
48570	90430-42001	Gasket(For Shock Absorber Ring Nut)
48577	48579-14011	Stopper, Shock Absorber Rebound
48603	48603-12010	Support Sub-Assy, Front Suspension, Rh
48609	48609-12100	Support Sub-Assy, Front Suspension, Lh
48660	48660-19165	Bar Assy, Strut, Rh
48670	48670-19155	Bar Assy, Strut, Lh
48674	48674-12050	Cushion, Strut Bar
48674	48674-19105	Cushion, Strut Bar
48674	90948-02036	Retainer, Cushion(For Strut Bar Cushion)
48674	90387-16108	Collar(For Strut Bar Cushion)
48680	94182-11400	Nut(For Idler Arm Support)
48680	90303-22049	Seal, Dust(For Front Suspension Support)
48684	48684-14030	Cover, Bearing Dust
48811	48811-12340	Bar, Stabilizer, Front
48815	48815-14140	Bush, Front Stabilizer Bar, No.1
48817	48817-20020	Cushion, Front Stabilizer
48817	90948-02038	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02037	Retainer, Cushion, No.2(For Front Stabilizer Bar)
48817	48819-20010	Bolt(For Front Stabilizer)
48824	48824-24010	Cover, Stabilizer Link(For Rear)
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017016183	90170-16183	New Genuine Part
9017908054	90179-08054	Nut (For Connecting Rod Swivel)
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9418360800	94183-60800	Nut(For Front Stabilizer Bar)
9451201600	94512-01600	Washer(For Center Arm Shaft)
9451201600	90204-16001	Washer(For Center Arm Shaft)
9453101000	94531-01000	WASHER

OEM	Part name	Category
48021-12170	Shell Sub-Assy, W/steering Knuckle, Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48022-14010	Guide Sub-Assy, Shock Absorber Rod	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48022-22040	Guide Sub-Assy, Shock Absorber Rod	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48023-12240	Rod Sub-Assy, Shock Absorber Piston (For Front)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48028-14011	Nut Sub-Assy, Shock Absorber Ring	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48028-14012	Nut Sub-Assy, Shock Absorber Ring	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48029-12050	Shell Sub-Assy, W/steering Knuckle, Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48045-12050	Seat, Front Spring, Upper	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48131-1A370	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48131-1A390	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48131-1A410	Spring, Front Coil, Rh - FRONT COIL, LH	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48157-12030	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48331-12080	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48510-12270	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48510-12281	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48510-12490	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48510-12491	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48511-12230	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48511-19135	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48520-12140	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48520-12151	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48520-12360	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48520-12361	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48550-12230	Valve Assy, Shock Absorber Base	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48552-12030	Cylinder, Shock Absorber(For Front)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48568-22021	Ring, Shock Absorber Piston	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48579-14011	Stopper, Shock Absorber Rebound	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48603-12010	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48609-12100	Support Sub-Assy, Front Suspension, Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48660-19165	Bar Assy, Strut, Rh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48670-19155	Bar Assy, Strut, Lh	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48674-12050	Cushion, Strut Bar	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48674-19105	Cushion, Strut Bar	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48684-14030	Cover, Bearing Dust	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48811-12340	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48815-14140	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48817-20020	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48819-20010	Bolt(For Front Stabilizer)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
48824-24010	Cover, Stabilizer Link(For Rear)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90119-08830	Bolt(For Oil Receiver Pipe)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90170-10082	Nut, Hexagon (For Control Rod Setting)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90170-16183	New Genuine Part	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90179-08054	Nut (For Connecting Rod Swivel)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90204-16001	Washer(For Center Arm Shaft)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90303-22049	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90316-22001	Seal, Oil(For Shock Absorber Ring Nut)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90387-16108	Collar(For Strut Bar Cushion)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90430-42001	Gasket(For Shock Absorber Ring Nut)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90430-43206	Gasket(For Shock Absorber Ring Nut)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90948-02036	Retainer, Cushion(For Strut Bar Cushion)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90948-02037	Retainer, Cushion, No.2(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
90948-02038	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
91611-60818	Bolt(For Oil Receiver Pipe)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
94182-11400	Nut(For Idler Arm Support)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
94183-60800	Nut(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
94512-01600	Washer(For Center Arm Shaft)	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
94531-01000	WASHER	Front Spring & Shock Absorber ([05.1983 - ] (8305- ))
