AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories
AE86 ×

← Back to categories

4,358 items

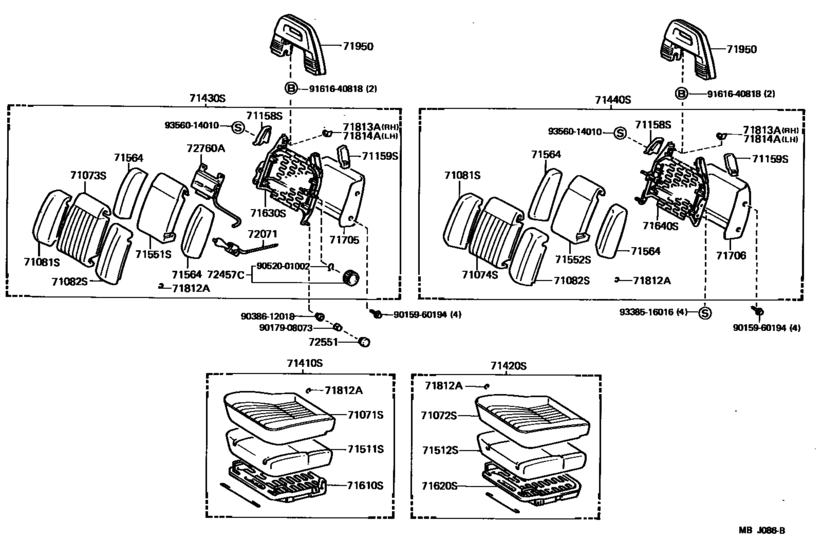

Front Seat & Seat Track ([05.1985 - ] (8505- )APX,GTV,SR) 83
#OEMPart name
71071 71071-1A860-02 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1A860-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1E750-01 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-1A850-02 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1A850-04 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1E180-01 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-1E250-02 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-1E250-04 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-1E850-03 Cover, Front Seat Back, Rh(For Separate Type)
71081 71081-12040-02 Cover Sub-Assy, Front Seat Back Side, Rh
71081 71081-12040-04 Cover Sub-Assy, Front Seat Back Side, Rh
71081 71081-12080-03 Cover Sub-Assy, Front Seat Back Side, Rh
71082 71082-12020-02 Cover Sub-Assy, Front Seat Back Side, Lh
71082 71082-12020-04 Cover Sub-Assy, Front Seat Back Side, Lh
71082 71082-12060-03 Cover Sub-Assy, Front Seat Back Side, Lh
71158 71158-12060 Frame, Front Seat Back, Upper Rh
71158 71158-12080 Frame, Front Seat Back, Upper Rh
71159 71159-12040 Frame, Front Seat Back, Upper Lh
71159 71159-12060 Frame, Front Seat Back, Upper Lh
71410 71410-1E170-02 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-1E170-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-1H160-01 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-1E140-02 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-1E140-04 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-1E180-01 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71430-1E390-02 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-1E390-04 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-1H230-03 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-1E330-02 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1E330-04 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1H170-03 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-12460 Pad, Front Seat Cushion, Rh(For Separate Type)
71511 71511-12540 Pad, Front Seat Cushion, Rh(For Separate Type)
71551 71551-12420 Pad, Front Seat Back, Rh(For Separate Type)
71551 71551-12500 Pad, Front Seat Back, Rh(For Separate Type)
71564 71563-12050 Pad, Front Seat Back, Side
71564 71564-12010 Pad, Front Seat Back, Side
71610 71610-12180 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610 71610-12250 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71620 71620-12141 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620 71620-12150 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620 71620-12151 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71620 71620-12181 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71630 71630-12270 Spring Assy, Front Seat Back, Rh(For Separate Type)
71630 71630-12330 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-12230 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-12300 Spring Assy, Front Seat Back, Lh(For Separate Type)
71705 71705-12010-01 Board Sub-Assy, Front Seat Back, Rh
71705 71705-12010-02 Board Sub-Assy, Front Seat Back, Rh
71705 71705-12010-04 Board Sub-Assy, Front Seat Back, Rh
71706 71706-12010-01 Board Sub-Assy, Front Seat Back, Lh
71706 71706-12010-02 Board Sub-Assy, Front Seat Back, Lh
71706 71706-12010-04 Board Sub-Assy, Front Seat Back, Lh
71812 90468-18071 Clip (For Front Seat Cushion Cover)
71812 90468-16019 Clip (For Rear Seat Back)
71813 71813-12020-02 Shield, Front Seat Back, Rh
71813 71813-12020-13 Shield, Front Seat Back, Rh
71813 71813-12020-04 Shield, Front Seat Back, Rh
71813 71813-12030-01 Shield, Front Seat Back, Rh
71814 71814-12010-02 Shield, Front Seat Back, Lh
71814 71814-12010-13 Shield, Front Seat Back, Lh
71814 71814-12010-04 Shield, Front Seat Back, Lh
71814 71814-12020-01 Shield, Front Seat Back, Lh
71950 71910-12270-02 Headrest Assy, Front Seat
71950 71910-12270-04 Headrest Assy, Front Seat
71950 71910-12590-01 Headrest Assy, Front Seat
72071 72071-12010-01 Pump Sub-Assy, Lumber Support
72457 72457-14030-01 Knob, Seat Adjuster
72457 72457-14030-11 Knob, Seat Adjuster
72457 72457-14030-04 Knob, Seat Adjuster
72457 72457-14030-22 Knob, Seat Adjuster
72457 72457-14030-32 Knob, Side Support Adjuster
72551 72551-12070 Cover, Reclining Hinge, No.1
72760 72750-12050 Adjuster Assy, Lumbar Support
9015960194 90159-60194 New Genuine Part
9017908073 90179-08073 New Genuine Part
9038612018 90386-12018 Bush (For Front Seat Hinge Pin)
9052001002 90520-01002 Ring, Shaft Snap(For Vent Window Control)
9052001002 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
9161640818 91616-40818 Screw Or Bolt(for Valve Rocker Shaft Lock)
9161640818 91611-B0816 Bolt
9338516016 93385-16016 New Genuine Part
9356014010 93560-14010 SCREW
