Search › Model › AE86

AE86

Toyota SPRINTER-CARIB-TRUENO · 1983 · 4,358 parts · 151 categories

4,358 items

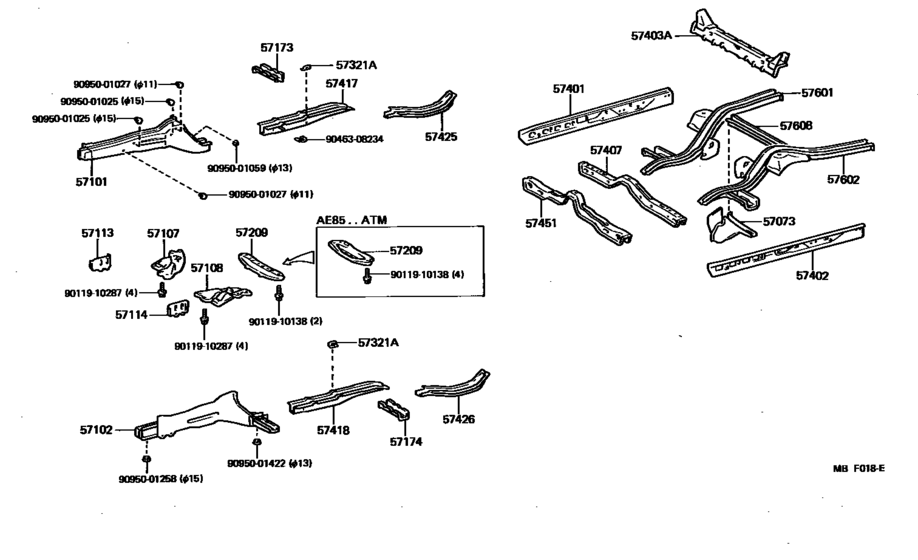

Floor Side Member ([05.1983 - ] (8305- )) 43

#	OEM	Part name
57073	57073-12030	Bracket Sub-Assy, Lateral Rod
57101	57101-12180	Member Sub-Assy, Front Side, Rh
57101	57101-12190	Member Sub-Assy, Front Side, Rh
57102	57102-12180	Member Sub-Assy, Front Side, Lh
57102	57102-12190	Member Sub-Assy, Front Side, Lh
57107	57107-12040	Bracket Sub-Assy, Strut Bar, Rh
57108	57108-12040	Bracket Sub-Assy, Strut Bar, Lh
57113	57113-12060	Extension, Front Side Member, Rh
57114	57114-12060	Extension, Front Side Member, Lh
57173	57173-12010	Box, Torque, Front No.2 Rh
57174	57174-12010	Box, Torque, Front No.2 Lh
57209	57209-12340	Member Sub-Assy, Engine Rear Support
57321	57321-12040	Retainer, Catalytic Converter Mounting
57401	57401-12160	Member Sub-Assy, Main Floor Side, Rh
57401	57401-12170	Member Sub-Assy, Main Floor Side, Rh
57402	57402-12160	Member Sub-Assy, Main Floor Side, Lh
57402	57402-12170	Member Sub-Assy, Main Floor Side, Lh
57403	57403-12040	Member Sub-Assy, Center Floor Cross, No.3
57407	57407-12010	Cross Member Sub-Assy, Center Floor, No.1
57417	57417-12040	Reinforcement, Front Floor Under, Rh
57425	57425-12020	Reinforcement, Front Floor, No.2 Rh
57425	57425-12030	Reinforcement, Front Floor, No.2 Rh
57426	57426-12020	Reinforcement, Front Floor, No.2 Lh
57426	57426-12030	Reinforcement, Front Floor, No.2 Lh
57451	57408-12030	Member, Front Floor Cross
57601	57601-12910	Member Sub-Assy, Rear Floor Side, Rh
57601	57601-12913	Member Sub-Assy, Rear Floor Side, Rh
57601	57601-12915	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-12910	Member Sub-Assy, Rear Floor Side, Lh
57602	57602-12913	Member Sub-Assy, Rear Floor Side, Lh
57602	57602-12915	Member Sub-Assy, Rear Floor Side, Lh
57608	57405-12040	Member Sub-Assy, Center Floor Cross, No.2
9011910138	90119-10138	New Genuine Part
9011910138	90119-10767	New Genuine Part
9011910287	90119-10287	New Genuine Part
9046308234	90463-08234	New Genuine Part
9095001025	90950-01025	Plug, Hole(For Front Fender Apron)
9095001027	90950-01027	Plug, Hole, No.3(For Dash Panel)
9095001059	90950-01059	Grommet, Safety Band Anchorage Nut
9095001258	90950-01258	Plug, Hole(For Rear Suspension Arm)
9095001258	90950-01478	Plug, Hole(For Front Suspension Lower Arm)
9095001422	90950-01422	New Genuine Part
9095001422	90950-01528	New Genuine Part

OEM	Part name	Category
57073-12030	Bracket Sub-Assy, Lateral Rod	Floor Side Member ([05.1983 - ] (8305- ))
57101-12180	Member Sub-Assy, Front Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57101-12190	Member Sub-Assy, Front Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57102-12180	Member Sub-Assy, Front Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57102-12190	Member Sub-Assy, Front Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57107-12040	Bracket Sub-Assy, Strut Bar, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57108-12040	Bracket Sub-Assy, Strut Bar, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57113-12060	Extension, Front Side Member, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57114-12060	Extension, Front Side Member, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57173-12010	Box, Torque, Front No.2 Rh	Floor Side Member ([05.1983 - ] (8305- ))
57174-12010	Box, Torque, Front No.2 Lh	Floor Side Member ([05.1983 - ] (8305- ))
57209-12340	Member Sub-Assy, Engine Rear Support	Floor Side Member ([05.1983 - ] (8305- ))
57321-12040	Retainer, Catalytic Converter Mounting	Floor Side Member ([05.1983 - ] (8305- ))
57401-12160	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57401-12170	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57402-12160	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57402-12170	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57403-12040	Member Sub-Assy, Center Floor Cross, No.3	Floor Side Member ([05.1983 - ] (8305- ))
57405-12040	Member Sub-Assy, Center Floor Cross, No.2	Floor Side Member ([05.1983 - ] (8305- ))
57407-12010	Cross Member Sub-Assy, Center Floor, No.1	Floor Side Member ([05.1983 - ] (8305- ))
57408-12030	Member, Front Floor Cross	Floor Side Member ([05.1983 - ] (8305- ))
57417-12040	Reinforcement, Front Floor Under, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57425-12020	Reinforcement, Front Floor, No.2 Rh	Floor Side Member ([05.1983 - ] (8305- ))
57425-12030	Reinforcement, Front Floor, No.2 Rh	Floor Side Member ([05.1983 - ] (8305- ))
57426-12020	Reinforcement, Front Floor, No.2 Lh	Floor Side Member ([05.1983 - ] (8305- ))
57426-12030	Reinforcement, Front Floor, No.2 Lh	Floor Side Member ([05.1983 - ] (8305- ))
57601-12910	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57601-12913	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57601-12915	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.1983 - ] (8305- ))
57602-12910	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57602-12913	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
57602-12915	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.1983 - ] (8305- ))
90119-10138	New Genuine Part	Floor Side Member ([05.1983 - ] (8305- ))
90119-10287	New Genuine Part	Floor Side Member ([05.1983 - ] (8305- ))
90119-10767	New Genuine Part	Floor Side Member ([05.1983 - ] (8305- ))
90463-08234	New Genuine Part	Floor Side Member ([05.1983 - ] (8305- ))
90950-01025	Plug, Hole(For Front Fender Apron)	Floor Side Member ([05.1983 - ] (8305- ))
90950-01027	Plug, Hole, No.3(For Dash Panel)	Floor Side Member ([05.1983 - ] (8305- ))
90950-01059	Grommet, Safety Band Anchorage Nut	Floor Side Member ([05.1983 - ] (8305- ))
90950-01258	Plug, Hole(For Rear Suspension Arm)	Floor Side Member ([05.1983 - ] (8305- ))
90950-01422	New Genuine Part	Floor Side Member ([05.1983 - ] (8305- ))
90950-01478	Plug, Hole(For Front Suspension Lower Arm)	Floor Side Member ([05.1983 - ] (8305- ))
90950-01528	New Genuine Part	Floor Side Member ([05.1983 - ] (8305- ))

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 151
Collected: 2026-08-02
