Search › Model › AE85

AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories
AE85 ×

← Back to categories

4,790 items

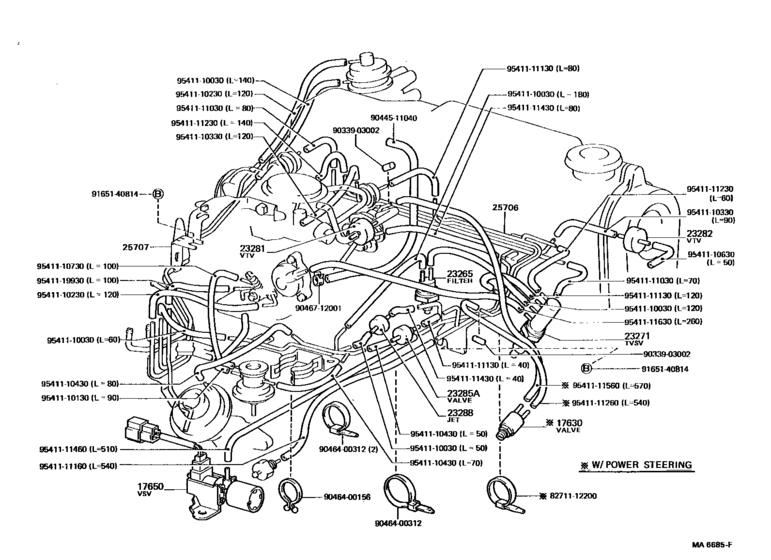

Vacuum Piping ([05.1983 - 05.1985] (8305-8505)3AU) 51
#OEMPart name
17630 17630-15020 Valve Assy, Air Control
17630 17630-15021 Valve Assy, Air Control
17650 89570-12220 Valve Assy, Vacuum Switching
17650 89570-12340 Valve Assy, Vacuum Switching
23262 90925-05013 Valve, Bimetal Vacuum Switching, No.1
23262 90925-05066 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11023 Filter, Gas, No.1
23271 90925-02076 Valve, Thermostatic Vacuum Switching, No.1
23271 90925-02078 Valve, Thermostatic Vacuum Switching, No.1
23281 90925-01091 Valve, Vacuum Transmitting, No.1
23282 90925-01095 Valve, Vacuum Transmitting, No.1
23285 90917-10049 Valve, Check, No.1
23288 90925-04012 Jet, No.1
23288 90925-04013 Jet, No.1
25706 25706-15160 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-15161 Pipe Sub-Assy, Vacuum Transmitting, No.1
25706 25706-15190 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-15120 Pipe Sub-Assy, Vacuum Transmitting, No.2
25707 25707-15160 Pipe Sub-Assy, Vacuum Transmitting, No.2
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9033903002 90339-03002 PLUG
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9044511040 90445-11040 Hose, No.1(For Idle-Up)
9046400156 90464-00156 Clamp, No.2(For Back Door Lock Control Cable)
9046400312 90464-00312 New Genuine Part
9046712001 90467-12001 Clip(For Carburetor Fuel Hose)
9046712001 96132-51100 Clip (For Hose)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9541110030 95411-10030 Hose (For Idle Up Device)
9541110030 90999-92002 Air Hose (300 mm)
9541110130 95411-10130 Pipe Or Hose
9541110230 95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift)
9541110330 95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift)
9541110430 95411-10430 Hose (For Idle Up Device)
9541110630 95411-10630 Hose, Fuel, No.1(For Charcoal Canister)
9541110730 95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner)
9541111030 95411-11030 Hose (For Idle Up Device)
9541111130 95411-11130 Hose, Air
9541111160 95411-11160 Hose, Breather (For Transfer Case)
9541111160 90999-92003 Hose, Breather (For Transfer Case)
9541111230 95411-11230 Hose, Vacuum (For Idle Up Device), No.1
9541111260 95411-11260 Hose, Vacuum (For Idle Up Device), No.1
9541111430 95411-11430 Hose, Vacuum (For Idle Up Device), No.1
9541111460 95411-11460 Hose, Vacuum (For Idle Up Device), No.1
9541111530 95411-11530 Hose, Air
9541111560 95411-11560 Hose, Breather (For Transfer Case)
9541111595 95411-11595 Hose, Vacuum, No.1 (For Front Drive Shift)
9541111595 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
9541111630 95411-11630 Hose, Vacuum (For Idle Up Device), No.1
9541119930 95411-19930 Hose(For Carburetor To Manifold)
