Search › Model › AE85

AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories

4,790 items

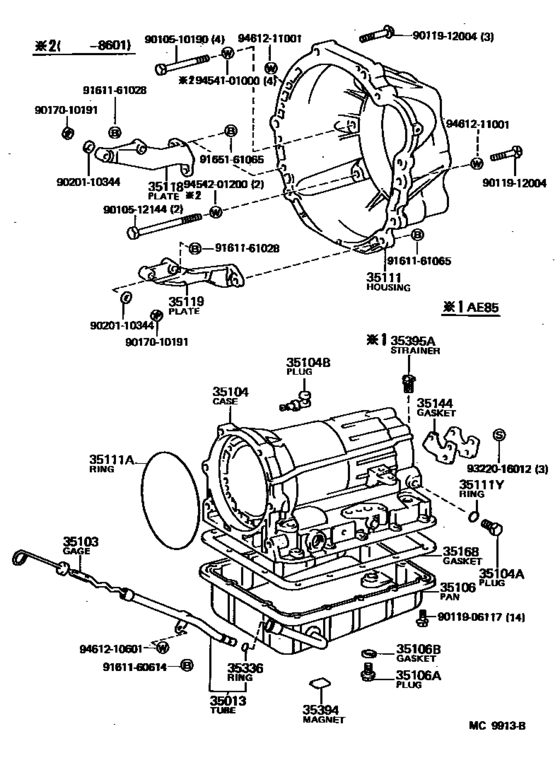

Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC) 48

#	OEM	Part name
35013	35013-12170	Tube Sub-Assy, Transmission Oil Filler
35103	35103-12050	Gage Sub-Assy, Transmission Oil Level
35103	35103-12051	Gage Sub-Assy, Transmission Oil Level
35104	35104-12050	Case Sub-Assy, Automatic Transmission
35104	35104-12130	Case Sub-Assy, Automatic Transmission
35104	35104-12051	Case Sub-Assy, Automatic Transmission
35104	35104-12052	Case Sub-Assy, Automatic Transmission
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90930-03069	Plug, Breather, No.1 (Atm)
35104	90930-03108	Plug, Breather, No.1 (Atm)
35106	35106-12030	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-10003	Plug Sub-Assy, Drain (Atm)
35106	90341-10011	Drain Plug (No Type)
35106	90341-10006	Plug (For Transfer Oil Pan)
35106	35178-30010	Drain Plug Gasket
35111	35111-12110	Housing, Automatic Transmission
35111	35111-12111	Housing, Automatic Transmission
35111	90301-99006	Ring, O (For Automatic Transmission Housing)
35111	90301-99054	Ring, O (For Automatic Transmission Housing)
35111	90301-06196	O Ring, Transaxle Case, No.1
35118	33118-12090	Plate, Stiffener, Rh(Mtm) - STIFENER, RH (ATM)
35118	33118-12110	Plate, Stiffener, Rh(Mtm) - STIFENER, RH (ATM)
35119	33119-12100	Plate, Stiffener, Lh(Mtm)
35144	35144-22010	Gasket, Transmission Case Rear Cover
35144	35144-28010	Gasket, Transmission Case Rear Cover
35168	35168-22011	Gasket, Automatic Transmission Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-40010	Strainer, Governor Oil
9010510190	90105-10190	New Genuine Part
9010512144	90105-12144	New Genuine Part
9011906117	90119-06117	Bolt (For Automatic Transmission Oil Pan)
9011906117	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9011912004	90119-12004	Bolt(For Transmission Case & Engine Setting)
9017010191	90170-10191	Nut(For Rear Drive Shaft)
9020110344	90201-10344	Washer, Plate(For Cylinder Head Set)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9161161065	91611-61065	Bolt(For Transaxle & Engine Setting)
9161161065	91612-61065	Bolt(For Transaxle & Engine Setting)
9165161065	91651-61065	New Genuine Part
9322016012	93220-16012	SCREW
9454101000	94541-01000	New Genuine Part
9454201200	94542-01200	New Genuine Part
9461210601	94612-10601	New Genuine Part
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
33118-12090	Plate, Stiffener, Rh(Mtm) - STIFENER, RH (ATM)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
33118-12110	Plate, Stiffener, Rh(Mtm) - STIFENER, RH (ATM)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
33119-12100	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35013-12170	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35103-12050	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35103-12051	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35104-12050	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35104-12051	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35104-12052	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35104-12130	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35106-12030	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35111-12110	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35111-12111	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35144-22010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35144-28010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35168-22011	Gasket, Automatic Transmission Oil Pan	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
35395-40010	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90105-10190	New Genuine Part	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90105-12144	New Genuine Part	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90119-06117	Bolt (For Automatic Transmission Oil Pan)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90119-12004	Bolt(For Transmission Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90170-10191	Nut(For Rear Drive Shaft)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90201-10344	Washer, Plate(For Cylinder Head Set)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90301-99006	Ring, O (For Automatic Transmission Housing)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90301-99054	Ring, O (For Automatic Transmission Housing)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90341-10003	Plug Sub-Assy, Drain (Atm)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90341-10006	Plug (For Transfer Oil Pan)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90930-03069	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
90930-03108	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91611-61065	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91612-61065	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
91651-61065	New Genuine Part	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
93220-16012	SCREW	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
94541-01000	New Genuine Part	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
94542-01200	New Genuine Part	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
94612-10601	New Genuine Part	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Transmission Case & Oil Pan (Atm) ([05.1983 - ] (8305- )4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 177
Collected: 2026-08-02
