Search › Model › AE85

AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories
AE85 ×

← Back to categories

4,790 items

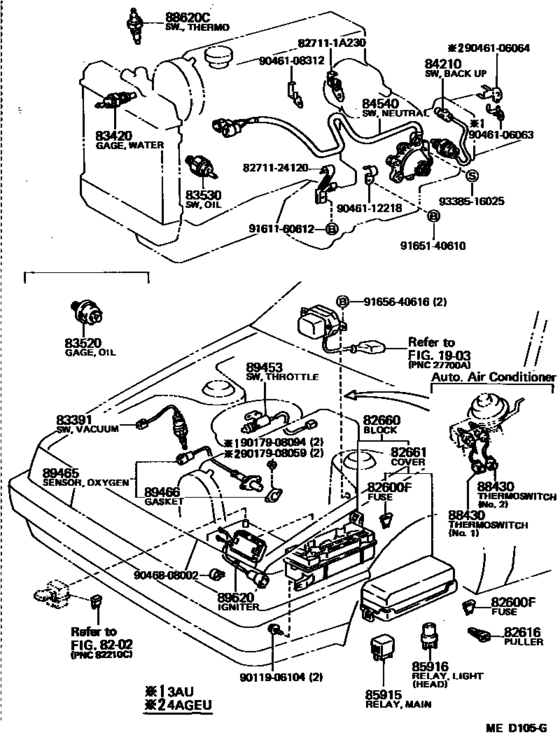

Switch & Relay & Computer ([05.1983 - ] (8305- )) 127
#OEMPart name
81980 81980-16010 Flasher Assy, Turn Signal
81980 81980-22070 Flasher Assy, Turn Signal
82600 90982-07011 Fuse, Fuse Block
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82600 82683-12020 Plate, Caution(For Fuse)
82600 82683-12070 Plate, Caution(For Fuse)
82616 82616-12010 Lever, Fuse
82650 82650-12010 Breaker Assy, Wiring Circuit, No.1
82650 82650-35010 Breaker Assy, Wiring Circuit, No.1
82650 82650-20011 Breaker Assy, Wiring Circuit, No.1
82660 82660-12190 Block Assy, Relay, Engine Room
82660 82660-12191 Block Assy, Relay, Engine Room
82660 82660-12130 Block Assy, Relay, Cowl Side
82660 82660-12220 Block Assy, Relay, Cowl Side
82661 82661-12100 Cover, Relay Block, No.1
82661 82661-12130 Cover, Relay Block, No.1
82661 82661-12131 Cover, Relay Block, No.1
83320 83320-19715 Gage Assy, Fuel Sender
83361 77169-14020 Gasket, Fuel Tank Vent
83391 83391-14061 Switch, Vacuum
83391 83391-22070 Switch, Vacuum
83420 83420-16010 Gage Assy, Water Temperature Sender
83420 83420-20020 Gage Assy, Water Temperature Sender
83530 83530-12040 Switch Assy, Oil Pressure (For Engine)
83530 83530-60040 Switch Assy, Oil Pressure (For Engine)
83530 83530-30080 Switch Assy, Oil Pressure (For Engine)
83650 90986-01003 Fusee
84110 84112-19545 Switch Assy, Light Control, No.1
84110 90179-14010 Bolt Or Nut, Light Control Switch Set
84110 84110-12090 Switch Assy, Light Control, No.2
84110 84110-12100 Switch Assy, Light Control, No.2
84111 84111-12060 Knob, Light Control Switch
84118 84118-12040 Knob, Light Control Rheostat - WINDSHIELD WIPER VOLUME SWITCH
84118 84118-12050 Knob, Light Control Rheostat
84140 84140-19285 Switch Assy, Headlamp Dimmer
84140 84140-24010 Switch Assy, Headlamp Dimmer
84233 84230-12130 Switch Assy, Courtesy Lamp (For Front Door)
84233 84231-22060 Switch Assy, Courtesy Lamp (For Front Door)
84233 84230-12131 Switch Assy, Courtesy Lamp (For Front Door)
84233 84234-24010 Cushion, Courtesy Switch (For Front Door)
84310 84310-12500 Switch Assy, Turn Signal
84312 84312-32010 Plate, Horn Contact
84330 84332-19255 Switch Assy, Hazard Warning Signal
84335 84330-12120 Switch Assy, Parking Lamp
84335 84330-14110 Switch Assy, Parking Lamp
84340 84340-30030 Switch Assy, Stop Lamp
84340 84340-32010 Switch Assy, Stop Lamp
84450 84450-12120 Switch Assy, Ignition Or Starter
84450 84450-17030 Switch Assy, Ignition Or Starter
84450 84450-17020 Switch Assy, Ignition Or Starter
84540 84540-35020 Switch Assy, Neutral Start
84550 84550-12060 Switch Assy, Parking Brake
84650 84650-12040 Switch Assy, Windshield Wiper
84650 84650-12050 Switch Assy, Windshield Wiper
84651 84651-12040 Knob, Windshield Wiper Switch
84655 84655-12010 Knob, Windshield Wiper Volume Switch
84660 84660-12070 Switch, Cooler
84660 84660-12071 Switch, Cooler
84660 88607-12010 Bulb(For Cooler Switch)
84730 84732-12140 Switch Assy, Heater Blower
84730 84732-12150 Switch Assy, Heater Blower
84730 90981-11014 Bulb, Position Indicator Lamp
84790 84790-12120 Switch Assy, Rear Window Defogger
84790 84790-12131 Switch Assy, Rear Window Defogger
84790 84999-10110 Bulb, Indicator Lamp
84790 84999-20060 Bulb(For Rear Window Defogger Switch)
84870 84870-22040 Switch Assy, Outer Mirror
85500 85500-12190 Lighter Assy, Cigarette
85533 85533-20011 Lens, Cigarette Lighter Indicator
85915 85913-30020 Relay, Ignition, No.1
85915 90987-04002 Relay, Ignition, No.1
85916 90987-01003 Relay, Fuel Lid Opener
86640 86640-12070 Chime Assy
88430 88655-12010 Thermoswitch Assy, Air Conditioner
88430 88655-12020 Thermoswitch Assy, Air Conditioner
89425 89425-19295 Sensor, Exhaust Gas Temperature
89425 89425-19305 Sensor, Exhaust Gas Temperature
89453 89453-14010 Switch, Throttle Position (For T.c.s.)
89465 89465-10010 Sensor, Oxygen
89465 89465-19085 Sensor, Oxygen
89466 89466-32010 Gasket, Oxygen Sensor
89466 89466-30030 Gasket, Oxygen Sensor
89550 89550-12670 Computer Assy, Emission Control
89550 89550-12671 Computer Assy, Emission Control
89550 89550-12850 Computer Assy, Emission Control
827111 82711-1A230 Wire, Fuse To Fuse(for Combustion Heater)
8271120300 82711-20300 Wire, Fuse To Fuse(for Combustion Heater)
8271124120 82711-24120 Wire, Fuse To Fuse(for Combustion Heater)
9011906005 90119-06005 New Genuine Part
9011906067 90119-06067 BOLT
9011906104 90119-06104 New Genuine Part
9011908413 90119-08413 New Genuine Part
9014940013 90149-40013 New Genuine Part
9015960081 90159-60081 SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9017908059 90179-08059 Nut
9017908059 90179-08101 NUT
9017908094 90179-08094 New Genuine Part
9018906043 90189-06043 CLIP
9043008252 90430-08252 Gasket(For Catalytic Converter Sensor Guide)
9046106063 90461-06063 New Genuine Part
9046106064 90461-06064 New Genuine Part
9046108312 90461-08312 New Genuine Part
9046112218 90461-12218 New Genuine Part
9046315402 90463-15402 New Genuine Part
9046808002 90468-08002 New Genuine Part
9048026015 90480-26015 New Genuine Part
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9165140610 91651-40610 RIVET
9165160616 91651-60616 BOLT
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
9331514012 93315-14012 Screw with washer
9331514014 93315-14014 SCREW
9331515010 93315-15010 New Genuine Part
9331914010 93319-14010 SCREW
9331915012 93319-15012 Screw
9338516025 93385-16025 New Genuine Part
9356614512 93566-14512 SCREW
9356614512 93568-54512 SCREW
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
