AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories
AE85 ×

← Back to categories

4,790 items

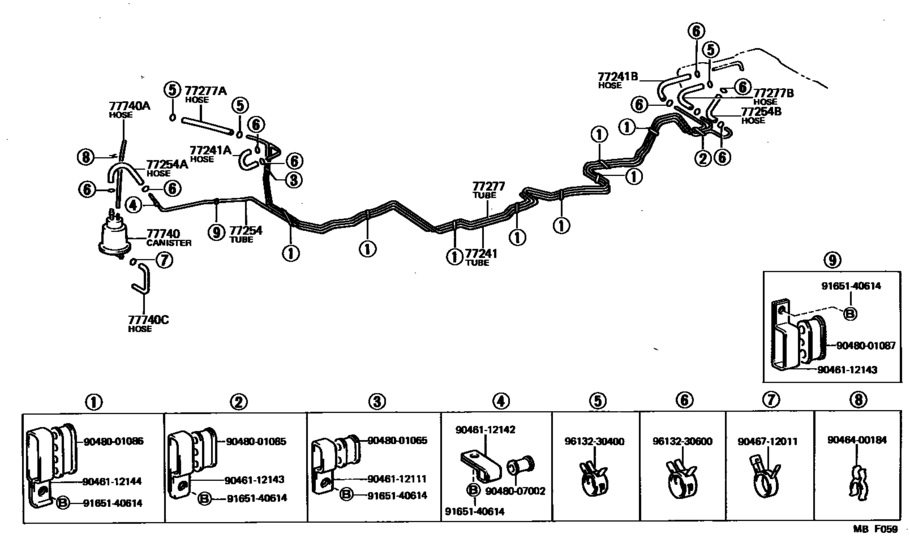

Fuel Tank & Tube ([05.1983 - ] (8305- )AE85) 33
#OEMPart name
77241 77205-12110 Tube, Fuel Main, No.1
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77241 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 77019-12090 Tube, Fuel Emission, No.1
77277 77255-12150 Tube, Fuel Return, No.1
77277 95332-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77277 95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77277 95333-04024 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
77277 95332-04020 Hose, Lpg Injector
77277 95333-04020 Hose, Lpg Injector
77277 95333-04018 Hose, Fuel, No.2(For Return Tube, No.1)
77740 77704-12270 Canister Assy, Charcoal
77740 17361-15070 Hose, Fuel, No.1(For Charcoal Canister)
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 77754-12030 Hose, Fuel, No.3(For Charcoal Canister)
9046112111 90461-12111 New Genuine Part
9046112142 90461-12142 New Genuine Part
9046112143 90461-12143 New Genuine Part
9046112144 90461-12144 New Genuine Part
9046400184 90464-00184 Clamp, Vacuum Tube
9046712011 90467-12011 Clip(For Actuator Hose)
9046712011 96132-51100 Clip (For Hose)
9048001065 90480-01065 New Genuine Part
9048001085 90480-01085 New Genuine Part
9048001086 90480-01086 New Genuine Part
9048001087 90480-01087 New Genuine Part
9048007002 90480-07002 New Genuine Part
9165140614 91651-40614 Bolt
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
