Search › Model › AE85

AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories

4,790 items

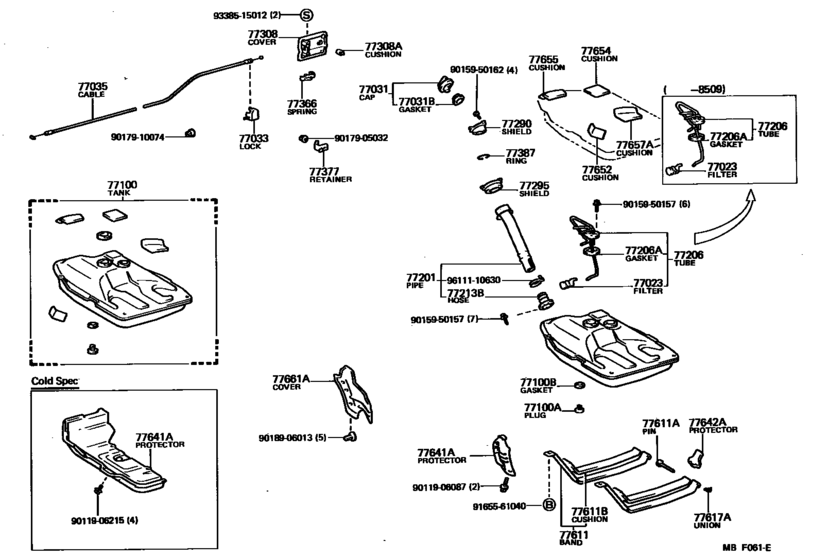

Fuel Tank & Tube ([05.1983 - ] (8305- )) 54

#	OEM	Part name
77023	77023-12050	Filter Sub-Assy, Fuel Suction Tube
77031	77310-12100	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77033	77037-14010	Lock Sub-Assy, Fuel Tank Cap
77033	77037-90K00	Lock Sub-Assy, Fuel Tank Cap
77035	77035-12090	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-22090	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-19305	Tank Assy, Fuel
77100	90341-20004	Plug(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77201	77201-16060	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-12290	Pipe Sub-Assy, Fuel Tank Inlet
77206	77017-12210	Tube Sub-Assy, Fuel And Evaporation Vent
77206	77017-12380	Tube Sub-Assy, Fuel And Evaporation Vent
77206	77017-12240	Tube Sub-Assy, Fuel And Evaporation Vent
77206	77017-12260	Tube Sub-Assy, Fuel And Evaporation Vent
77206	77178-10010	Gasket, Fuel Pump Bracket
77213	77213-14090	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77290	77290-12010	Shield Assy, Fuel Tank Filler Pipe
77295	77293-12020	Shield, Fuel Filler Pipe
77308	77350-12100	Cover Sub-Assy, Fuel Inlet Box
77308	90541-08009	Cushion(For Luggage Compartment Door Panel)
77366	77360-24010	Retainer, Fuel Inlet Cushion
77377	77377-24010	Retainer, Fuel Filler Opening Lid Lock
77387	77391-16010	Ring, Fuel Inlet Box
77611	77601-12070	Band, Fuel Tank
77611	77601-16050	Band, Fuel Tank
77611	77602-12030	Band, Fuel Tank
77611	77602-16040	Band, Fuel Tank
77611	90240-08020	Pin (For Fuel Tank Band)
77611	77654-12021	Cushion, Fuel Tank, No.4
77617	77617-12010	Union, Auxiliary Fuel Band
77641	77641-12130	Protector, Fuel Tank, No.1
77641	77641-16030	Protector, Fuel Tank, No.1
77642	77642-12010	Protector, Fuel Tank, No.2
77652	77651-16050	Cushion, Fuel Tank, No.1
77652	77655-12021	Cushion, Fuel Tank, No.1
77654	77652-12041	Cushion, Fuel Tank, No.2
77655	77653-12031	Cushion, Fuel Tank, No.3
77661	77661-12030	Cover, Fuel Tank Filler Hose
77661	77661-12040	Cover, Fuel Tank Filler Hose
9011906087	90119-06087	New Genuine Part
9011906087	90119-06407	New Genuine Part
9011906215	90119-06215	New Genuine Part
9015950157	90159-50157	SCREW WWASHER
9015950162	90159-50162	New Genuine Part
9017905032	90179-05032	NUT
9017905032	90179-05011	NUT
9017910074	90179-10074	New Genuine Part
9018906013	90189-06013	CLIP
9165561040	91655-61040	New Genuine Part
9165561040	91651-61035	BOLT
9338515012	93385-15012	SCREW
9611110630	96111-10630	Clamp, Hose

OEM	Part name	Category
77001-19305	Tank Assy, Fuel	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77017-12210	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77017-12240	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77017-12260	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77017-12380	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77023-12050	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77035-12090	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77035-22090	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77037-14010	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77037-90K00	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77178-10010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77201-12290	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77201-16060	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77213-14090	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77290-12010	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77293-12020	Shield, Fuel Filler Pipe	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77350-12100	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77360-24010	Retainer, Fuel Inlet Cushion	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77377-24010	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77391-16010	Ring, Fuel Inlet Box	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77601-12070	Band, Fuel Tank	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77601-16050	Band, Fuel Tank	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77602-12030	Band, Fuel Tank	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77602-16040	Band, Fuel Tank	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77617-12010	Union, Auxiliary Fuel Band	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77641-12130	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77641-16030	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77642-12010	Protector, Fuel Tank, No.2	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77651-16050	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77652-12041	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77653-12031	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77654-12021	Cushion, Fuel Tank, No.4	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77655-12021	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77661-12030	Cover, Fuel Tank Filler Hose	Fuel Tank & Tube ([05.1983 - ] (8305- ))
77661-12040	Cover, Fuel Tank Filler Hose	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90119-06087	New Genuine Part	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90119-06215	New Genuine Part	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90119-06407	New Genuine Part	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90159-50157	SCREW WWASHER	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90159-50162	New Genuine Part	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90179-05011	NUT	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90179-05032	NUT	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90179-10074	New Genuine Part	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90189-06013	CLIP	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90240-08020	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([05.1983 - ] (8305- ))
90541-08009	Cushion(For Luggage Compartment Door Panel)	Fuel Tank & Tube ([05.1983 - ] (8305- ))
91651-61035	BOLT	Fuel Tank & Tube ([05.1983 - ] (8305- ))
91655-61040	New Genuine Part	Fuel Tank & Tube ([05.1983 - ] (8305- ))
93385-15012	SCREW	Fuel Tank & Tube ([05.1983 - ] (8305- ))
96111-10630	Clamp, Hose	Fuel Tank & Tube ([05.1983 - ] (8305- ))
