Search › Model › AE85
AE85

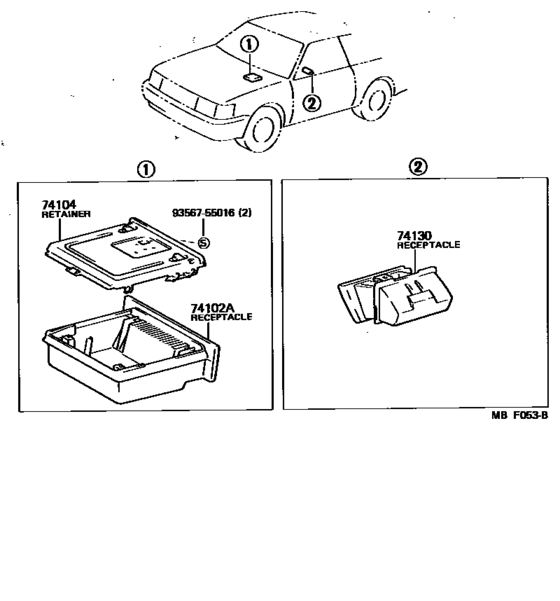

Ash Receptacle ([05.1983 - ] (8305- )) 9
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-12180 | Receptacle Assy, Front Ash |
| 74102 | 74102-12181 | Receptacle Assy, Front Ash |
| 74104 | 74104-12160 | Retainer Sub-Assy, Ash Receptacle, No.1 |
| 74130 | 74130-12040-01 | Receptacle Assy, Rear Ash |
| 74130 | 74109-20080-22 | Receptacle Assy, Rear Ash (Black) |
| 74130 | 74130-12040-14 | Receptacle Assy, Rear Ash |
| 74130 | 74130-12040-22 | Receptacle Assy, Rear Ash |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 74102-12180 | Receptacle Assy, Front Ash | Ash Receptacle ([05.1983 - ] (8305- )) |
| 74102-12181 | Receptacle Assy, Front Ash | Ash Receptacle ([05.1983 - ] (8305- )) |
| 74104-12160 | Retainer Sub-Assy, Ash Receptacle, No.1 | Ash Receptacle ([05.1983 - ] (8305- )) |
| 74109-20080-22 | Receptacle Assy, Rear Ash (Black) | Ash Receptacle ([05.1983 - ] (8305- )) |
| 74130-12040-01 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1983 - ] (8305- )) |
| 74130-12040-14 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1983 - ] (8305- )) |
| 74130-12040-22 | Receptacle Assy, Rear Ash | Ash Receptacle ([05.1983 - ] (8305- )) |
| 93567-55016 | Screw | Ash Receptacle ([05.1983 - ] (8305- )) |
| 93568-55016 | Screw | Ash Receptacle ([05.1983 - ] (8305- )) |
