Search › Model › AE85

AE85

Toyota COROLLA · 1983 · 4,790 parts · 177 categories

4,790 items

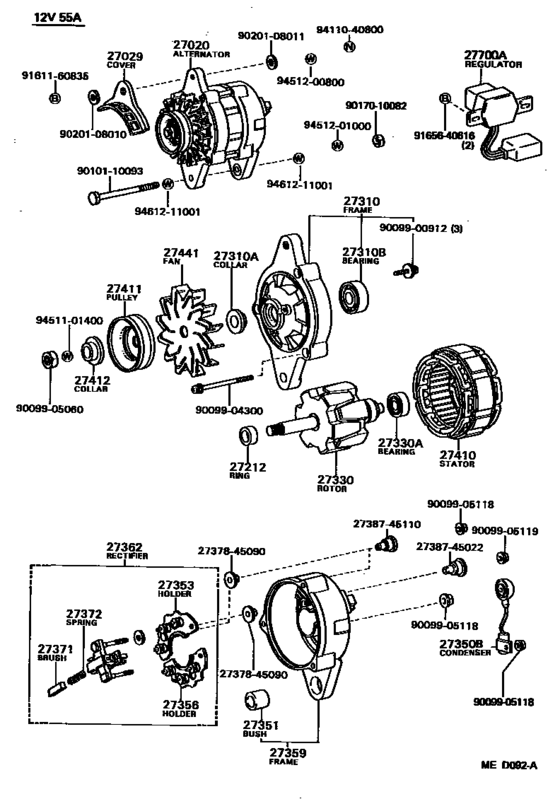

Alternator ([05.1983 - ] (8305- )3AU) 50

#	OEM	Part name
27020	27020-15140	Alternator Assy
27029	27029-15012	Cover, Alternator
27212	27412-15150	Ring, Space(For Alternator Rotor)
27212	27412-45070	Ring, Space(For Alternator Rotor)
27310	27310-61023	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10126	Bearing(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27330	27330-63010	Rotor Assy, Alternator
27330	90099-10111	Bearing(For Alternator Rotor)
27330	90099-10116	Bearing(For Alternator Rotor)
27350	90099-52065	Condenser, Alternator
27350	90099-52034	Condenser, Alternator
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27353	27353-34021	Holder, W/rectifier Positive, Alternator
27356	27356-34021	Holder, W/rectifier Negative, Alternator
27359	27359-15021	Frame, Alternator Rectifier End
27362	27362-34021	Rectifier Assy, W/brush
27362	27362-63011	Rectifier Assy, W/brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-43040	Stator Assy, Alternator
27411	27411-26111	Pulley, Alternator
27412	27412-44030	Ring, Space(For Alternator Rotor)
27412	27412-44031	Collar, Spacer(For Alternator Pulley)
27441	27441-34030	Fan, Alternator
27700	27700-15030	Regulator Assy, Generator
27700	27700-15040	Regulator Assy, Generator
27700	27700-15050	Regulator Assy, Generator
2737845090	27378-45090	Insulator, Alternator, No.1
2738745022	27387-45022	Insulator, Terminal
2738745110	27387-45110	Insulator, Terminal
9009900912	90099-00912	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9010110093	90101-10093	New Genuine Part
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9020108010	90201-08010	New Genuine Part
9020108011	90201-08011	New Genuine Part
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451101400	94511-01400	WASHER
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27020-15140	Alternator Assy	Alternator ([05.1983 - ] (8305- )3AU)
27029-15012	Cover, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27310-61023	Frame Assy, Drive End, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27330-63010	Rotor Assy, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([05.1983 - ] (8305- )3AU)
27353-34021	Holder, W/rectifier Positive, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27356-34021	Holder, W/rectifier Negative, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27359-15021	Frame, Alternator Rectifier End	Alternator ([05.1983 - ] (8305- )3AU)
27362-34021	Rectifier Assy, W/brush	Alternator ([05.1983 - ] (8305- )3AU)
27362-63011	Rectifier Assy, W/brush	Alternator ([05.1983 - ] (8305- )3AU)
27371-31011	Brush, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27372-31011	Spring, Alternator Brush	Alternator ([05.1983 - ] (8305- )3AU)
27378-45090	Insulator, Alternator, No.1	Alternator ([05.1983 - ] (8305- )3AU)
27387-45022	Insulator, Terminal	Alternator ([05.1983 - ] (8305- )3AU)
27387-45110	Insulator, Terminal	Alternator ([05.1983 - ] (8305- )3AU)
27410-43040	Stator Assy, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27411-26111	Pulley, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27412-15150	Ring, Space(For Alternator Rotor)	Alternator ([05.1983 - ] (8305- )3AU)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([05.1983 - ] (8305- )3AU)
27412-44030	Ring, Space(For Alternator Rotor)	Alternator ([05.1983 - ] (8305- )3AU)
27412-44031	Collar, Spacer(For Alternator Pulley)	Alternator ([05.1983 - ] (8305- )3AU)
27412-45070	Ring, Space(For Alternator Rotor)	Alternator ([05.1983 - ] (8305- )3AU)
27441-34030	Fan, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
27700-15030	Regulator Assy, Generator	Alternator ([05.1983 - ] (8305- )3AU)
27700-15040	Regulator Assy, Generator	Alternator ([05.1983 - ] (8305- )3AU)
27700-15050	Regulator Assy, Generator	Alternator ([05.1983 - ] (8305- )3AU)
90099-00912	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
90099-04300	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([05.1983 - ] (8305- )3AU)
90099-05118	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
90099-05119	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
90099-10111	Bearing(For Alternator Rotor)	Alternator ([05.1983 - ] (8305- )3AU)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([05.1983 - ] (8305- )3AU)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([05.1983 - ] (8305- )3AU)
90099-10126	Bearing(For Alternator Drive End Frame)	Alternator ([05.1983 - ] (8305- )3AU)
90099-52034	Condenser, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
90099-52065	Condenser, Alternator	Alternator ([05.1983 - ] (8305- )3AU)
90101-10093	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
90170-10082	Nut, Hexagon (For Control Rod Setting)	Alternator ([05.1983 - ] (8305- )3AU)
90201-08010	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
90201-08011	New Genuine Part	Alternator ([05.1983 - ] (8305- )3AU)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Alternator ([05.1983 - ] (8305- )3AU)
91651-60614	Bolt	Alternator ([05.1983 - ] (8305- )3AU)
91656-40616	Bolt	Alternator ([05.1983 - ] (8305- )3AU)
94110-40800	Nut(For Steering Damper)	Alternator ([05.1983 - ] (8305- )3AU)
94130-00802	Nut, No.1 (For Center Support Bearing)	Alternator ([05.1983 - ] (8305- )3AU)
94511-01400	WASHER	Alternator ([05.1983 - ] (8305- )3AU)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([05.1983 - ] (8305- )3AU)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([05.1983 - ] (8305- )3AU)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([05.1983 - ] (8305- )3AU)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 177
Collected: 2026-08-02
